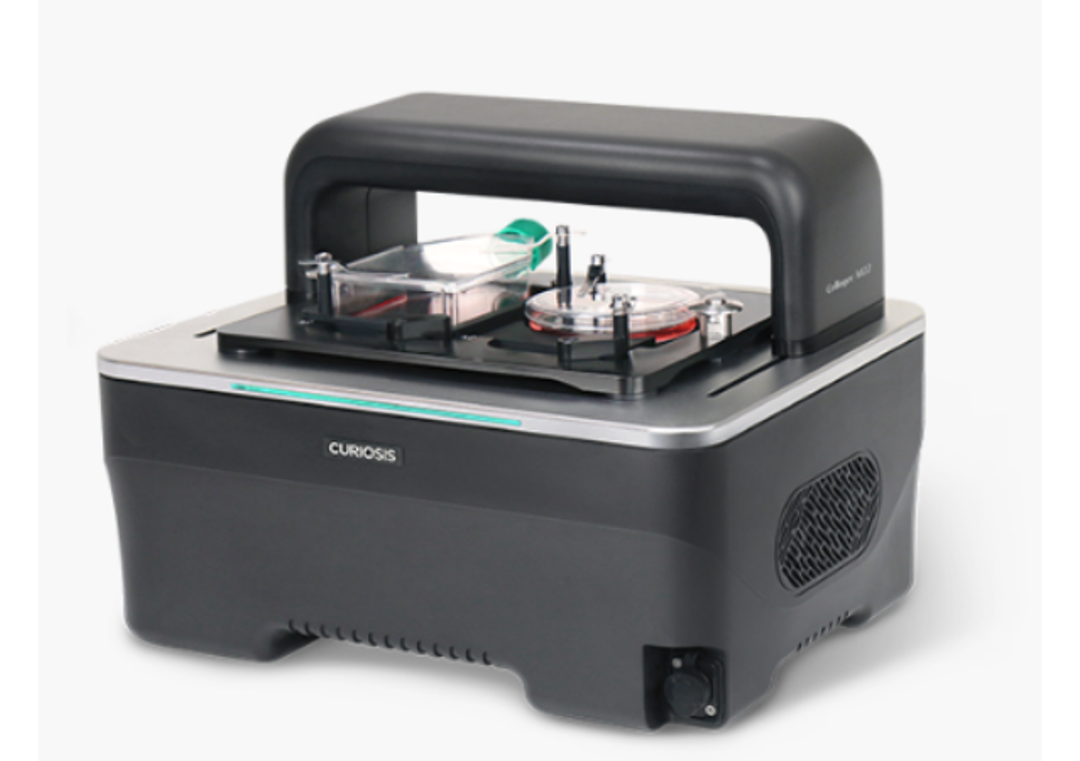

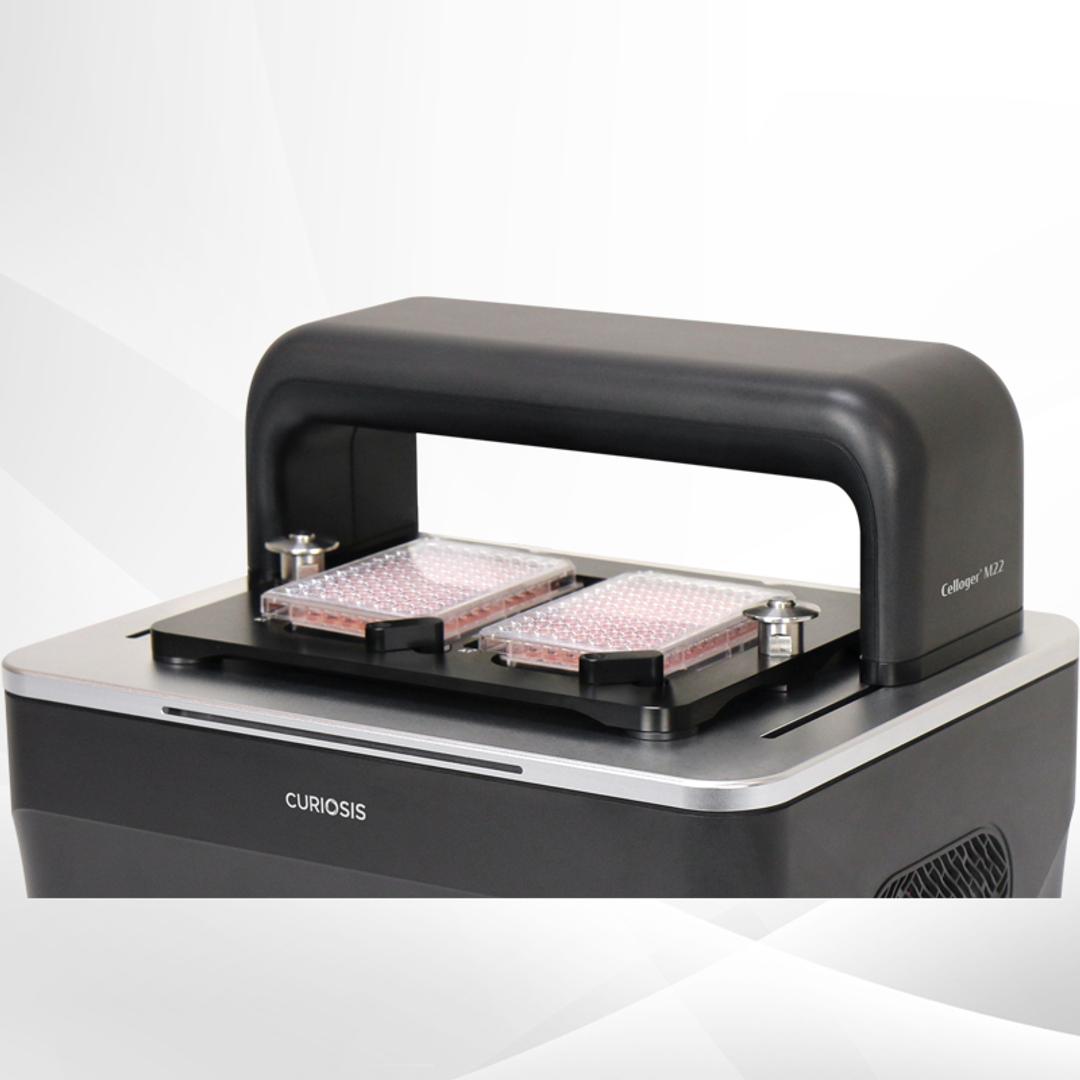

Celloger® M22, Dual-vessel Live Cell Imaging System from Curiosis
Celloger® M22 is a dual-vessel live cell imaging system for simultaneous monitoring inside the incubator. With synchronized imaging under identical conditions, it reduces variability and delivers consistent results for parallel experimental workflows.
Receive your quote directly from the manufacturer.
Celloger® M22 is a dual-vessel live cell imaging system based on brightfield and 2 fluorescence channels (Green & Red) microscopy. The fully motorized XYZ stage (camera moving type) enables synchronized parallel imaging of two culture vessels inside the incubator, ensuring consistent imaging conditions and minimizing variability during long-term observation. Researchers can run parallel workflows - such as control versus treatment or dose-response comparisons - within a single integrated imaging system.
Key Features

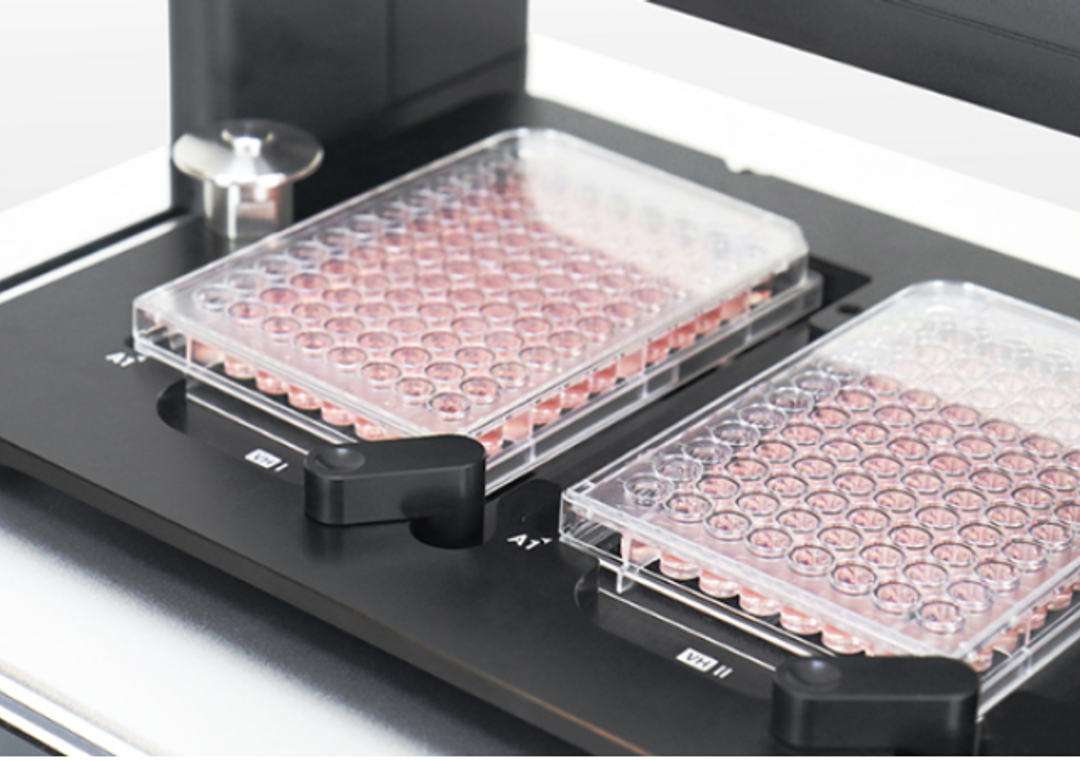

- Dual-vessel parallel imaging for simultaneous monitoring
- Synchronized illumination for consistent imaging
- User-interchangeable objectives (4× / 10× / 20×)
- Brightfield + 2 fluorescence channels (Green & Red)
- Fully motorized XYZ stage (camera moving type)
- High sensitivity 5.0 MP CMOS image sensor
- Auto focusing for stable long-term imaging
- Analysis methods support: stitching, Z-stacking, time-lapse, real-time recording
- Compatible with various vessels: up to 96-well plate, flask, dish, slide

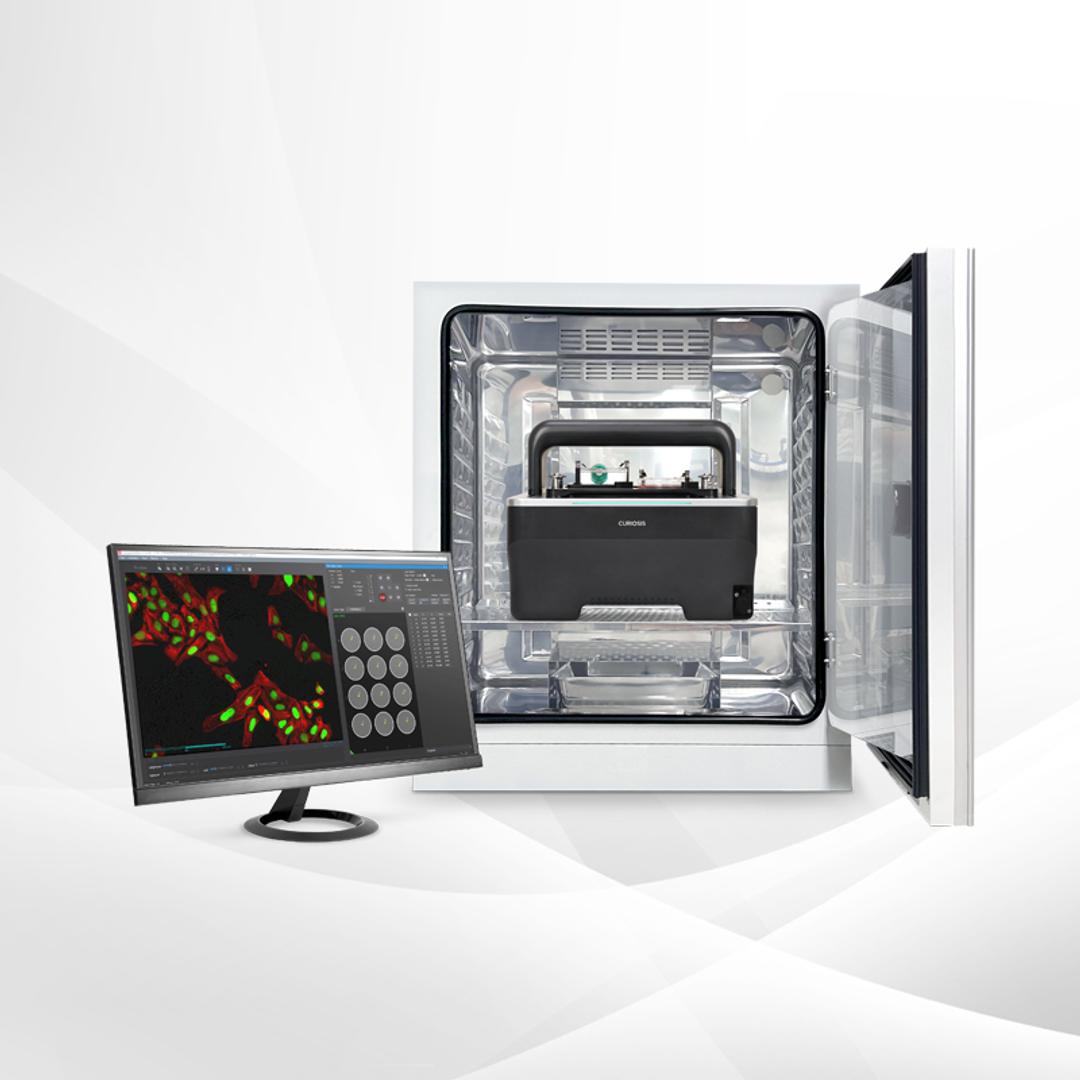

- Incubator-compatible design (recommended incubator volume: ≥170 L)
Applications
- Control vs. treatment studies
- Dose-response analysis
- Condition optimization
- Cell proliferation
- Cell morphology
- Cytotoxicity assay
- Transfection efficiency assessment
- Long-term time-lapse / multipoint monitoring
Specification
- Imaging modes: Brightfield, 2 fluorescence channels (Green & Red)
- Objectives: 4× / 10× / 20× (user-interchangeable lenses)
- Fluorescence modes (customizable):
Green (EX: 470/40, EM: 540/50)
Red (EX: 562/40, EM: 641/75) - Stage movement: Fully motorized XYZ (camera moving type)
- Image sensor: High sensitivity 5.0 MP CMOS
- Analysis methods: Single/multicolor, stitching, Z-stacking, time-lapse, real-time recording
- Focusing: Auto focusing
- Culture vessels: Well plate up to 96-well, flask, dish, slide
- Software: Scan App (acquisition), Analysis App (analysis)
- File export format: TIFF, AVI, JPEG, PNG
- Operating environment: 10–40℃, 20–95% humidity
- Power supply: 100–240V, 50/60Hz
- PC requirements (O/S): Windows 10 and above
- Incubator specification: Above 170 L (recommended)
- Dimensions (mm): W 380 × D 303 × H 313
- Weight: Approx. 14.44 kg (excluded vessel holder)
