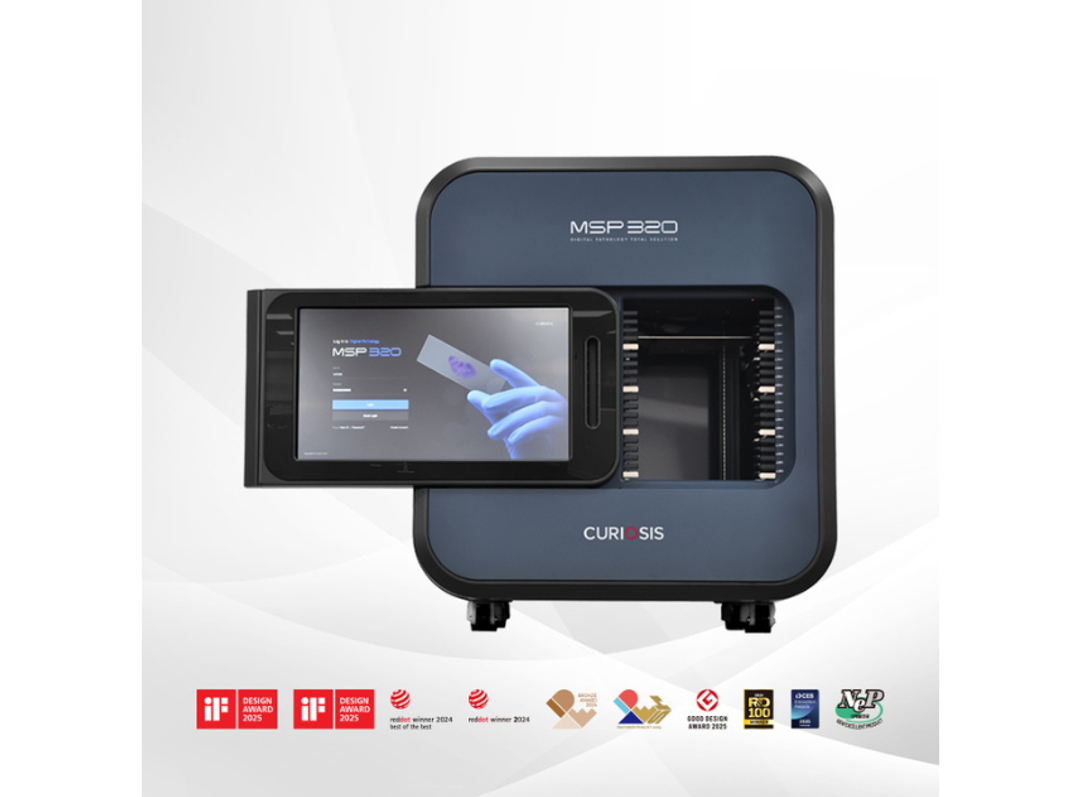

MSP™-320, Automated Digital Slide Scanner from Curiosis
MSP™ 320 revolutionizes pathology workflows by providing seamless access to digital slide images, empowering pathologists to review cases remotely and efficiently shorten the turn-around time. It ensures the secure data storage, archiving, and easy retrieval of high-quality digital images, overcoming the limitations associated with slide degradation while reinforcing the preservation of valuable specimens.
Receive your quote directly from the manufacturer.
MSP™ 320 also offers potential long-term cost savings by eliminating the need for physical slide storage, slide transportation, and associated logistical expenses. Moreover, it facilitates faster diagnoses and optimized treatment plans, leading to improved patient outcomes and cost efficiencies.
Key features
- High Resolution
- High Speed
- High Throughput
- Advanced Stitching Algorithm
- Secure Data Storage and Transfer

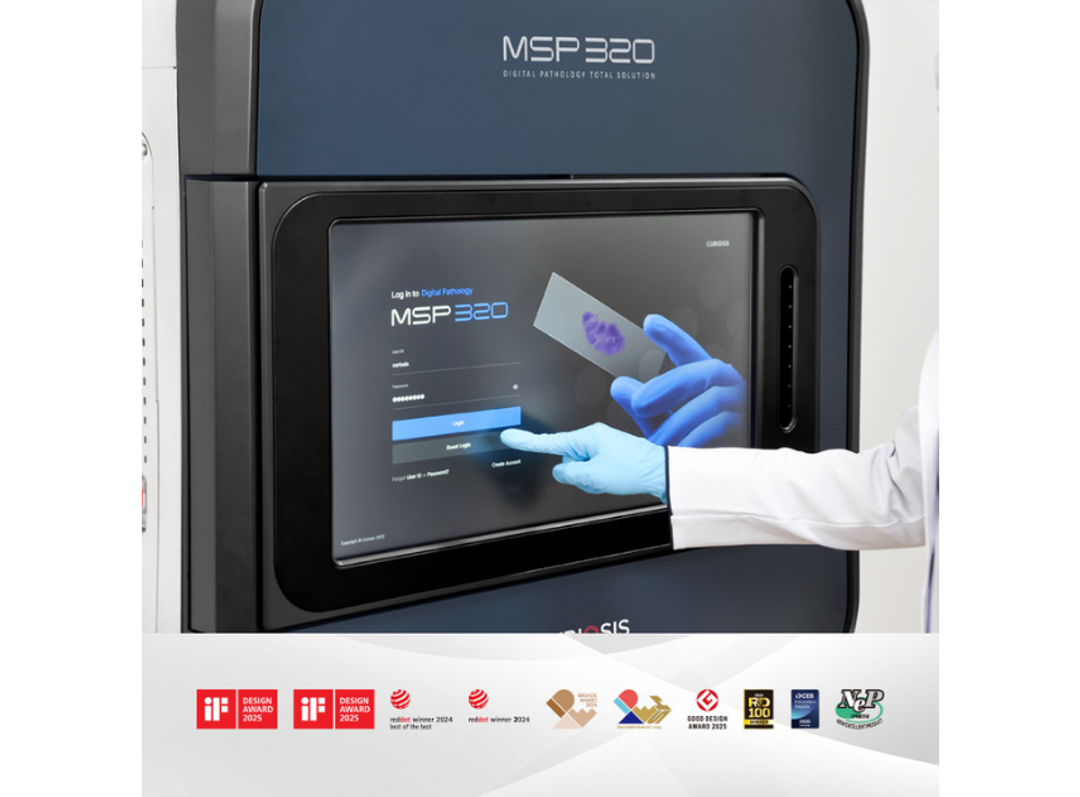

- Attached 23-inch Touchscreen Monitor
Specification
- Slide capacity: 320 slides

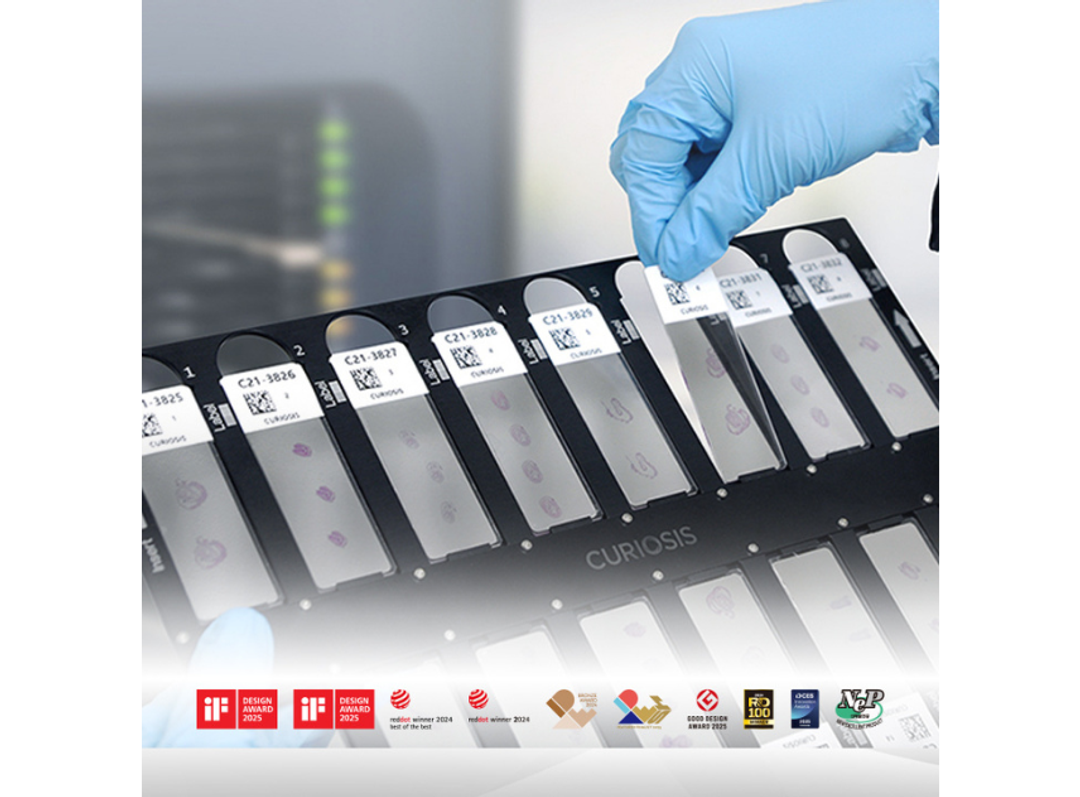

- Rack/slide capacity: 20 trays x 16 slides
- Magnification: Optical 20x
- Resolution (μm/pixel): 0.19
- Focus: Real-time laser autofocus
- Scan speed (sec): 30 (15 x 15 mm2)
- Scan area (mm): 54 x 24 (max tissue size)
- Label area (mm): 25 x 15~20
- Slide size (min, max, mm): 24~25 x 74~76 (1" x 3")
- Scan mode: Bright-field

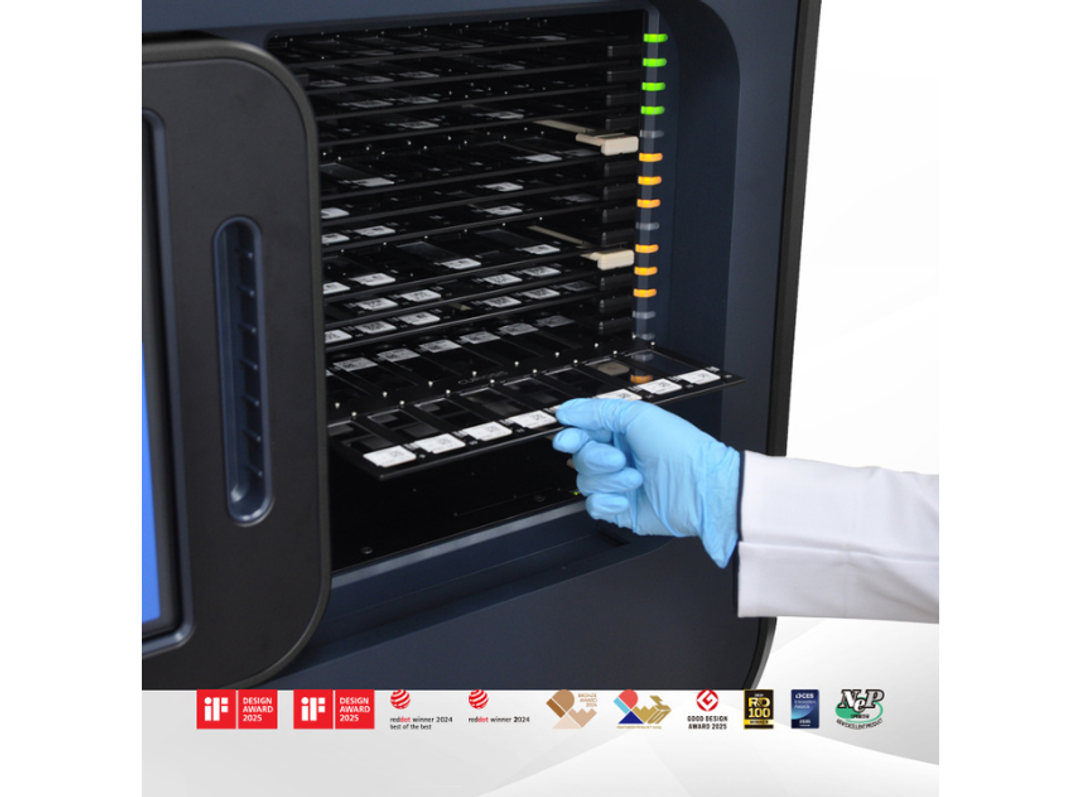

- Continuous tray loading while scanning: Yes
- Priority tray scanning: Yes
- FOV (mm): 0.91 x 0.67 (single shot)
- Touchscreen (cm): 52.1 x 29.3
- Dimension (cm): 83.5 x 72 x 91.5 (116 x 72 x 91.5, when door open)
- Weight (kg): 175
- Power supply: 100-240V, 50/60Hz
- Operating temperature: 10~35℃
- Certifications: KFDA
Brochures
MSP 320 product brochure
In this product brochure, CURIOSIS introduces MSP™ 320, a solution that transforms pathology workflows by granting seamless access to digital slide images. This empowers pathologists to efficiently review cases remotely, reducing turnaround time significantly. The technology ensures secure data storage, archiving, and easy retrieval of high-quality digital images, addressing challenges linked to slide degradation and enhancing specimen preservation. Additionally, MSP 320 presents potential long-term cost savings by eliminating physical slide storage, transportation, and logistical costs. Beyond this, it enables quicker diagnoses and more precise treatment plans, contributing to improved patient outcomes and cost-effectiveness.
MSP 320, automated digital slide scanner
In this video, CURIOSIS demonstrates the MSP™-320, an automated digital slide scanner that revolutionizes pathology workflows by providing seamless access to digital slide images, empowering pathologists to review cases remotely and efficiently shorten the turn-around time.
Streamline your slide digitization process
Curiosis introduces the MSP™-320, a high-throughput digital slide scanner
