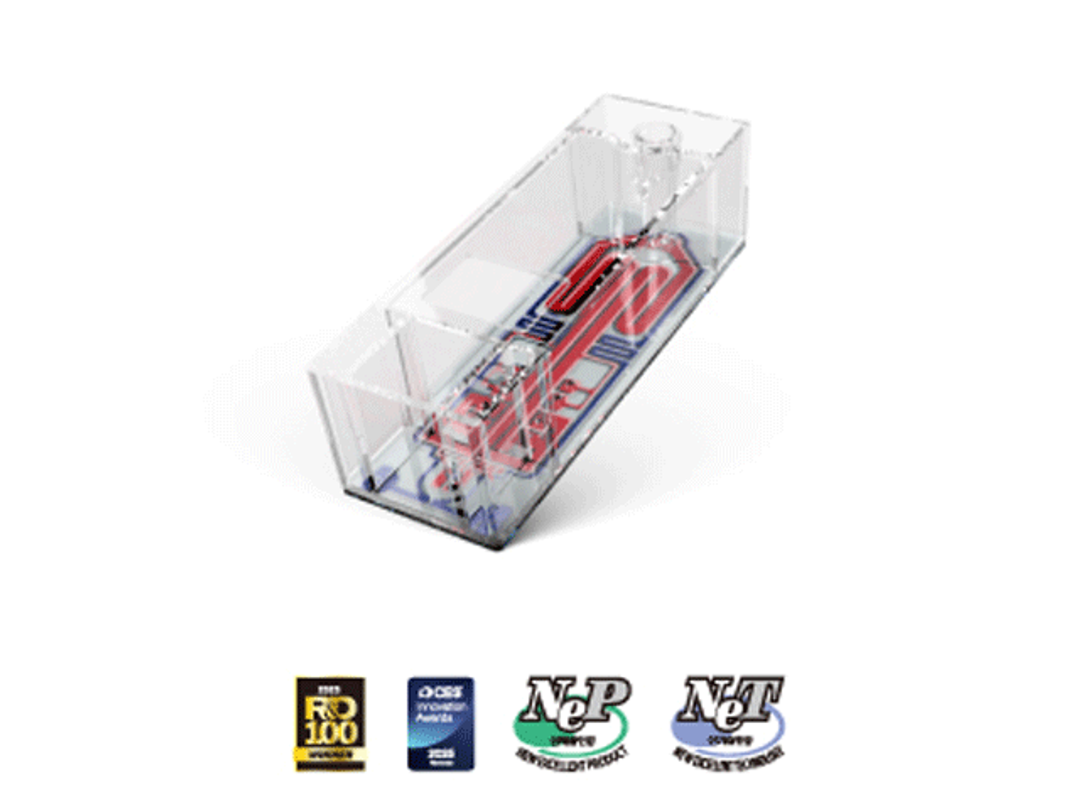

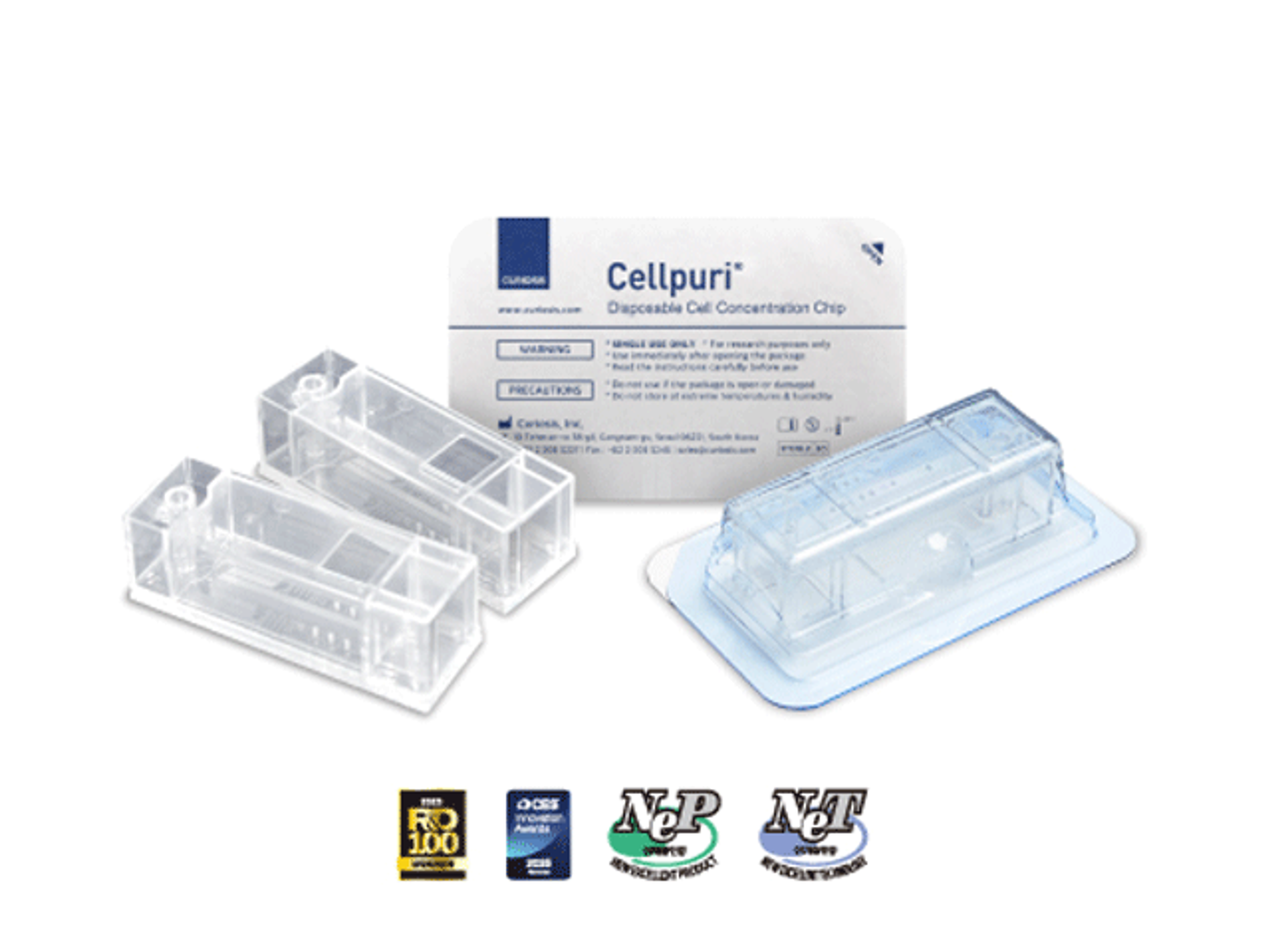

Cellpuri®, Disposable Cell Enrichment Chip from Curiosis
Cellpuri® is a disposable chip that enriches cells without the use of centrifugation method. Cells are being separated using the rheological phenomenon inside the microchannels where the cell suspension pass through to filter out waste medium and collect the enriched cells in the outlet.
Receive your quote directly from the manufacturer.
Cellpuri® is developed based on Filterless filter technology. It is a microfluidic chip-based cell separation and concentration technology developed by Curiosis. Countless micrometer-sized channels inside the chip create a rheological flow that separates, concentrates, and removes particles of a specific size from the solution. Microchannels were strategically designed to isolate cells according to their size where larger cells are directed towards one side whereas smaller cells flow randomly on lateral axis that eventually compile on the other side. FLF technology can be applied to cell enrichment, white blood cell separation, and blood-plasma separation.
Key features
- Centrifugation-free workflow(Less cell stress)
- Cells are less exposed to contamination(All processes are done inside the clean bench)
- Enriches cells more than 20 times in less than 10 minutes
- No more human error(Pipetting is not needed)

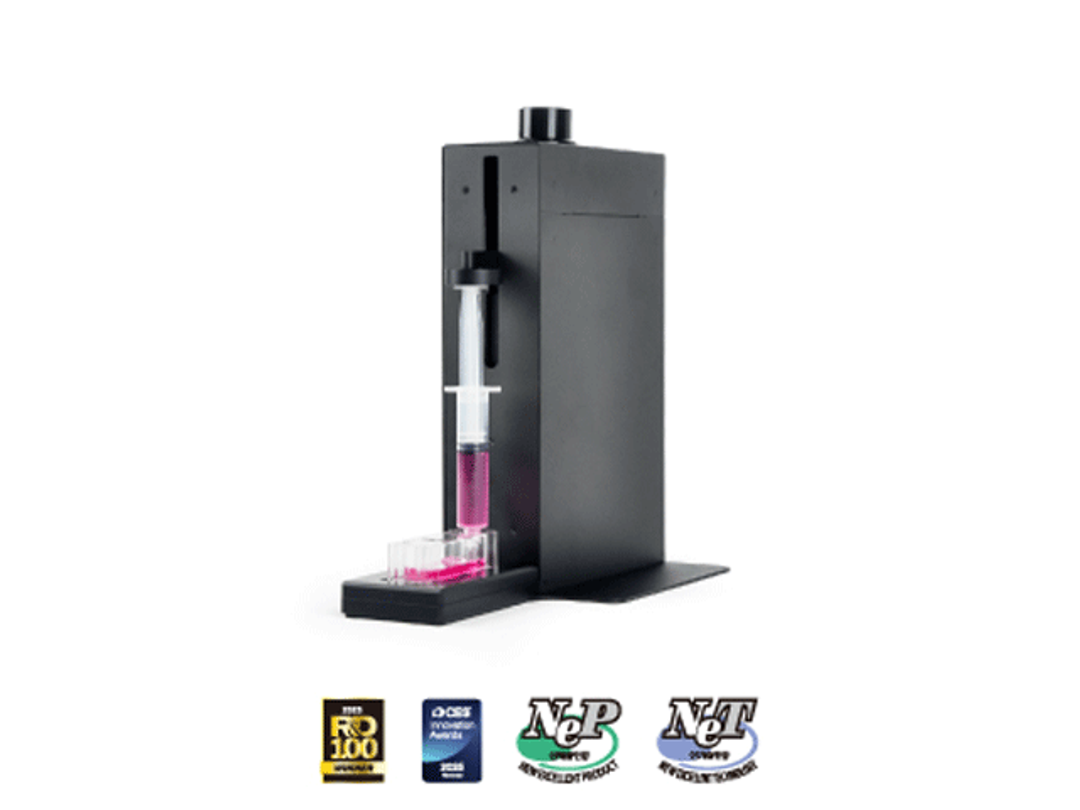

- No more wasted time and effort(Syringe pump does all the works)
Specification
- Dimension: 76 x 25 x 23 mm
- Sample size: 7~15μm size cells
- Flow rate: 1ml/min
- Enrichment: 20-fold
- Yield: 97%~
- Loading volume: ~20ml
Cellpuri product brochure
This product brochure discusses the Cellpuri® disposable cell enrichment chip. Learn how cells are separated using the rheological phenomenon inside the microchannels which the cell suspension passes through to filter out waste medium and then enriched cells collected in the outlet.
Cellpuri: Microfluidic cell concentration chip without centrifugation
Curiosis has recently developed Cellpuri, a centrifugal force-free cell concentrating device that cuts down generated fluid shear stress into only a few seconds thus minimally affects the cells in terms of mechanical stress. This application note aims to validate the performance of the newly developed cell enrichment chip in comparison to the conventional centrifugation method.
How to use Cellpuri from Curiosis
This video introduces and demonstrates the Cellpuri disposable cell enrichment chip from Curiosis. Explore the key features of the Cellpuri such as its ability to enrich cells more than 20 times in just 2 minutes.
