INHECO Teleshake by INHECO GmbH

Manufacturer INHECO GmbH  |  Available Worldwide
Low profile shaker for on-deck integration onto liquid handling instruments


INHECO Teleshake by INHECO GmbH product image

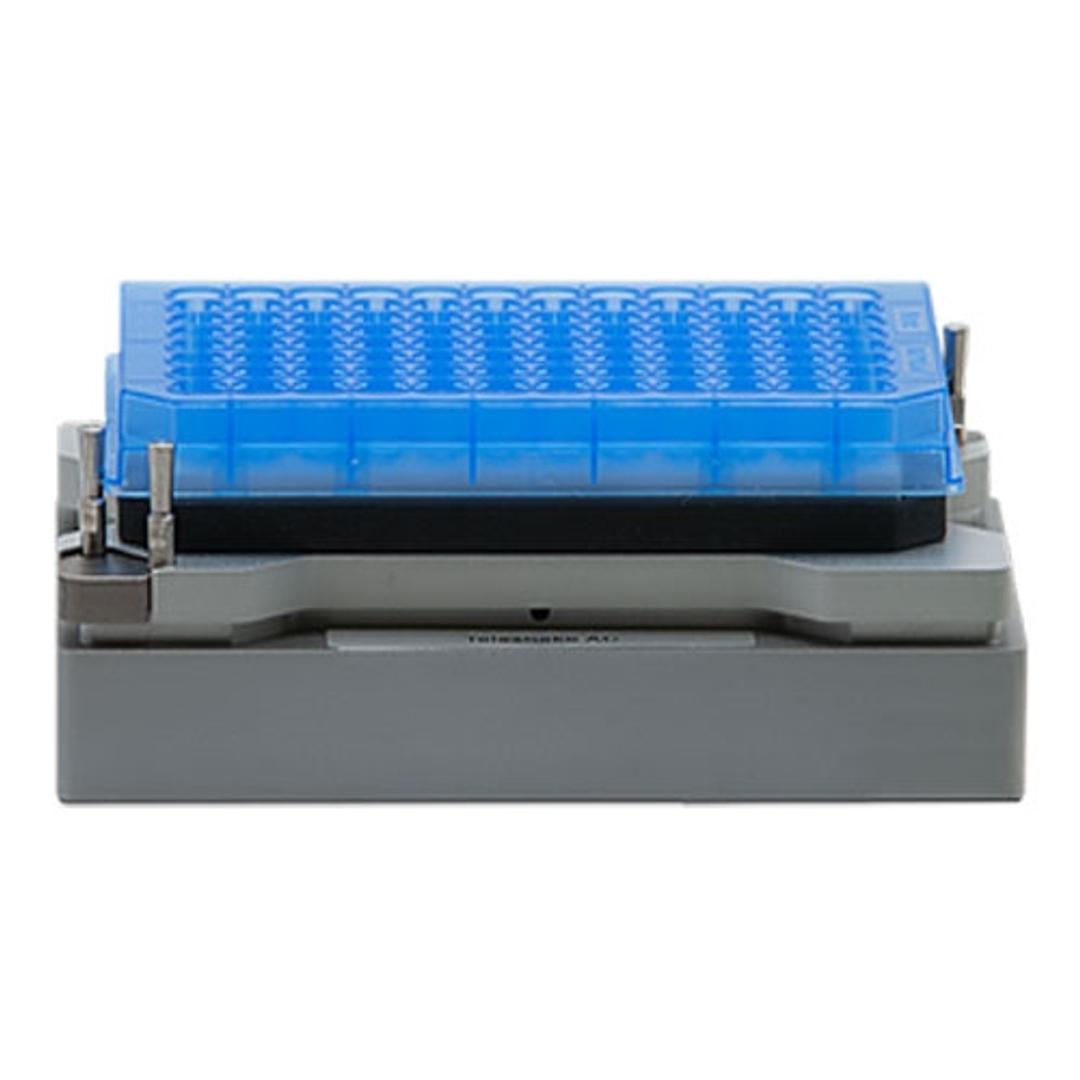

Teleshake with 96 well adapter
Request Pricing

Receive your quote directly from the manufacturer.



0 Scientists have reviewed this product


Write the First Review

No Reviews

Teleshake – premium shaker with small footprint and very low height for robotics integration

Low profile shaker for on-deck integration onto liquid handling instruments

The Teleshake and Teleshake 1536 have a very compact and low-profile design with a height of only 39 and 56mm, respectively. The small footprint makes them ideal for integration in automation platforms. Plates with up to 384 wells can be placed on the Teleshake while the Teleshake 1536 is ideal for plates with 384 up to 1536 wells that need higher shaking frequency. Both versions have a precise automated zero positioning (centric position precision: +/- 0.1mm) that allows a comfortable robotic gripping. Plates are securely fixed during shaking with a mechanism that is easily adaptable for different plates. Shaking frequency (100-2000rpm, Teleshake and 4000-8500rpm, Teleshake 1536) and shaking pattern (linear & orbital) is comfortably adjusted. A low-speed startup process prevents spillage. The Teleshakes are high performance plug-and-play shaking devices that can be operated in standalone with a control module, or with a PC via RS232 interface. Daisy chaining of up to 14 instruments is possible.

Teleshake

  • Very compact low-profile design
  • Low-speed start-up prevents spillage
  • Secure & flexible plate fixation
  • Ideal frequency for 96 & 384 plates
  • Also for vials, reservoirs & troughs
  • Shaking speed: 100 to 2.000 RPM
  • Orbital or linear shaking
  • Amplitude 2 or 3mm
  • Central zero self-positioning
  • Frequency infinitely selectable

Teleshake 1536

  • Very compact low-profile design
  • Low-speed start-up prevents spillage
  • Ideal frequency for 1536 well plates
  • High speed shaking: 4.000 - 8.500 RPM
  • Microplate locking system
  • Small fixing pads for easy gripper access
  • Orbital or linear shaking
  • Amplitude 0.1-1mm adjustable
  • Central zero self-positioning
  • Optional plate lift function

Variant models available offering different input voltage

  • Teleshake 230V EU - (3800047)
  • Teleshake 115V US - (3800048)
  • Teleshake 230V UK - (3800049)
  • Teleshake 230V EU - (3800063)
  • Teleshake 115V US - (3800064)
  • Teleshake 100V JP - (3800050)
  • Teleshake 1536-6, 100V JP - (3800044)
  • Teleshake 1536-8, 230V EU - (3800072)
  • Teleshake1536-8, 115V US - (3800074)
  • Monoshake 115V - (3800080)
