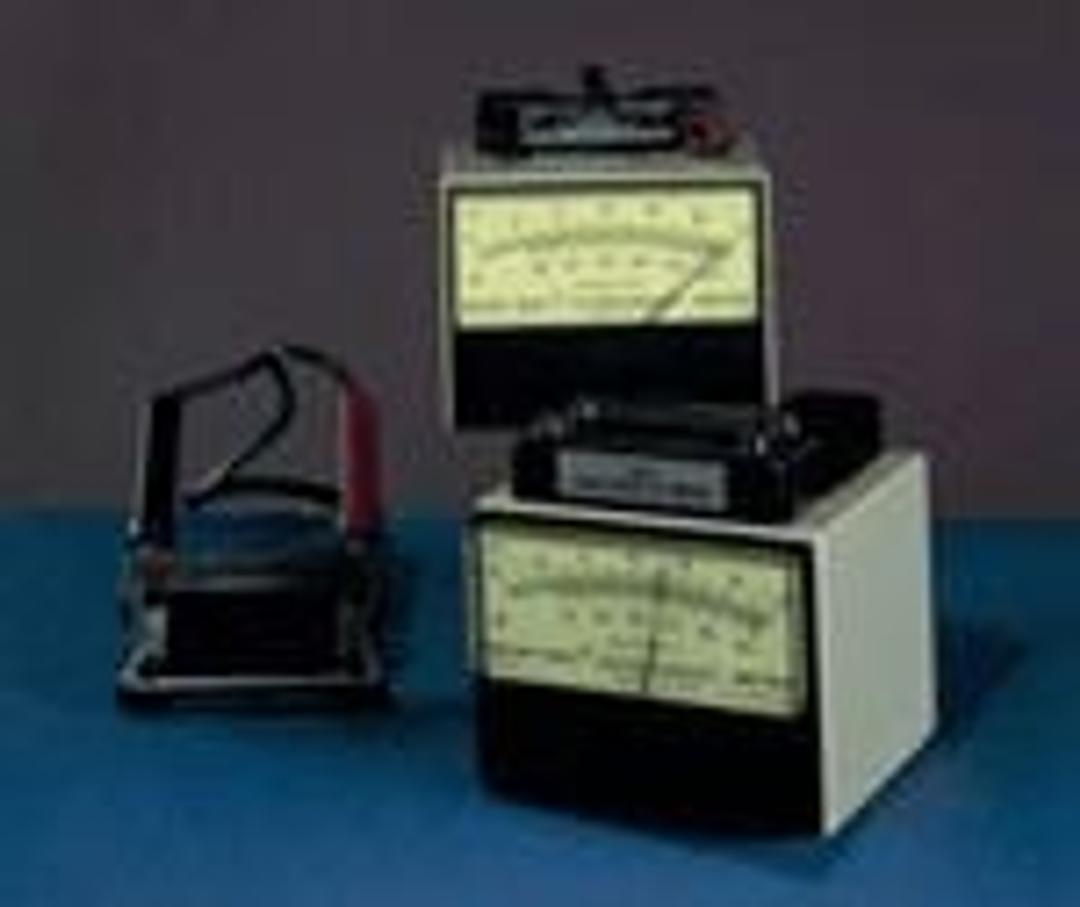

J-Series Ultraviolet Meters

These meters are photovoltaic devices for taking accurate and repeatable readings of UV light sources.

Request Pricing
Analytik Jena GmbH+Co. KG

Receive your quote directly from the manufacturer.

Ease of Use
After Sales Service
Value for Money
Write your own review

Key Features:

  • J-225 Meter measures the intensity of shortwave UV (254nm). Each meter comes with a sensor, attentuation screen and filter. This meter's sensor is sensitive within a range from 220 to 280nm with maximum sensitivity at 254nm
  • J-221 Meter measures the intensity of longwave UV (365nm). It's sensor is sensitive from 300 to 400nm with a peak sensitivity at 365nm. J-221 Meter complies with MIL STD 45662-A and can be found in MIL-I-6868D (NSN 6635-488-5451)
  • Each meter features two scales for low and high intensity readings
  • For remote readings, a four foot (1.2m) cord connects the sensor to the meter
  • Two scales measure a wide range of intensity
  • An infrared filter assures accurate readings when measuring light sources producing infrared radiation
  • The 5X attenuation screen can be used for very high intensity lamp measurements
  • Meters are self-powered for maximum portability

    3H x 3D x 3W in. (76 76 76mm) Weight: 9 oz (0.25kg)
