High-Capacity 3D X-ray Microscopy

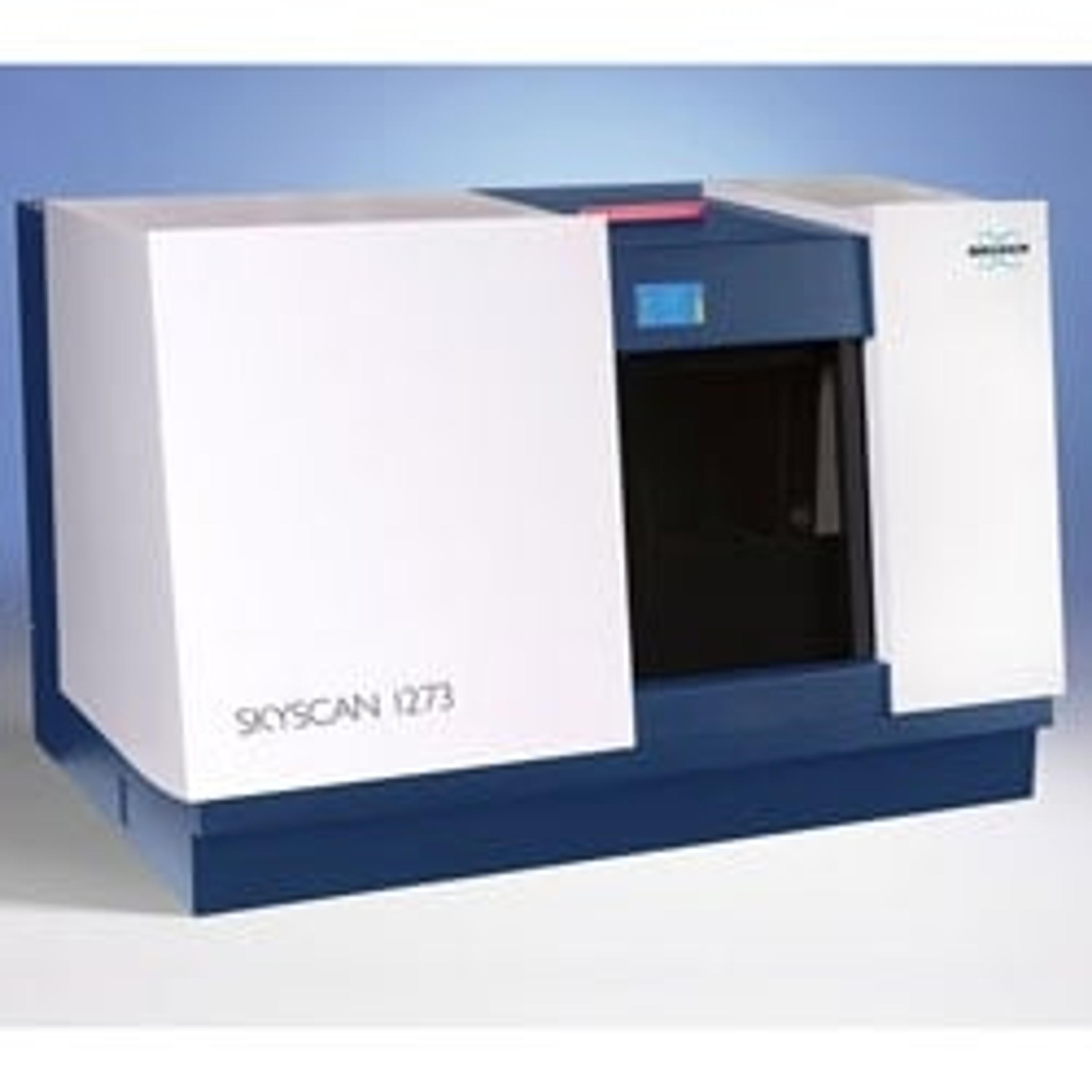

The SKYSCAN 1273 is Bruker’s latest benchtop 3D X-ray microscope based on micro computed tomography (Micro-CT) technology. Samples with up to 500 mm length, 300 mm diameter, and a maximum weight of 20 kg can be accommodated, a new standard for non-destructive testing (NDT) with benchtop instruments. Best-in-class components turn the SKYSCAN 1273 into a real power pack. The combination of a high-energy X-ray source running at high power and a large format flat-panel detector with ultimate sensitivity and speed provides excellent image quality in just a few seconds.
The comprehensive software for straightforward data collection, advanced image analysis, and powerful visualization makes the SKYSCAN 1273 an easy to use 3D X-ray microscope.
The SKYSCAN 1273 benchtop 3D X-ray microscope requires minimum lab space, is easy to start running, and virtually maintenance-free. Consequently, the SKYSCAN 1273 offers high system uptime with low cost of ownership.
40-130kV maintenance-free X-ray source for low cost of ownership
8-position automatic filter changer for automatic energy selection
GPU-acceleration for fast 3D reconstructions
Offset scanning with automatic stitching of oversized images
Best image quality of planar structures thanks to helical scanning and exact reconstruction
Up to 4x faster scanning of objects with high aspect ratio thanks to HART Plus
