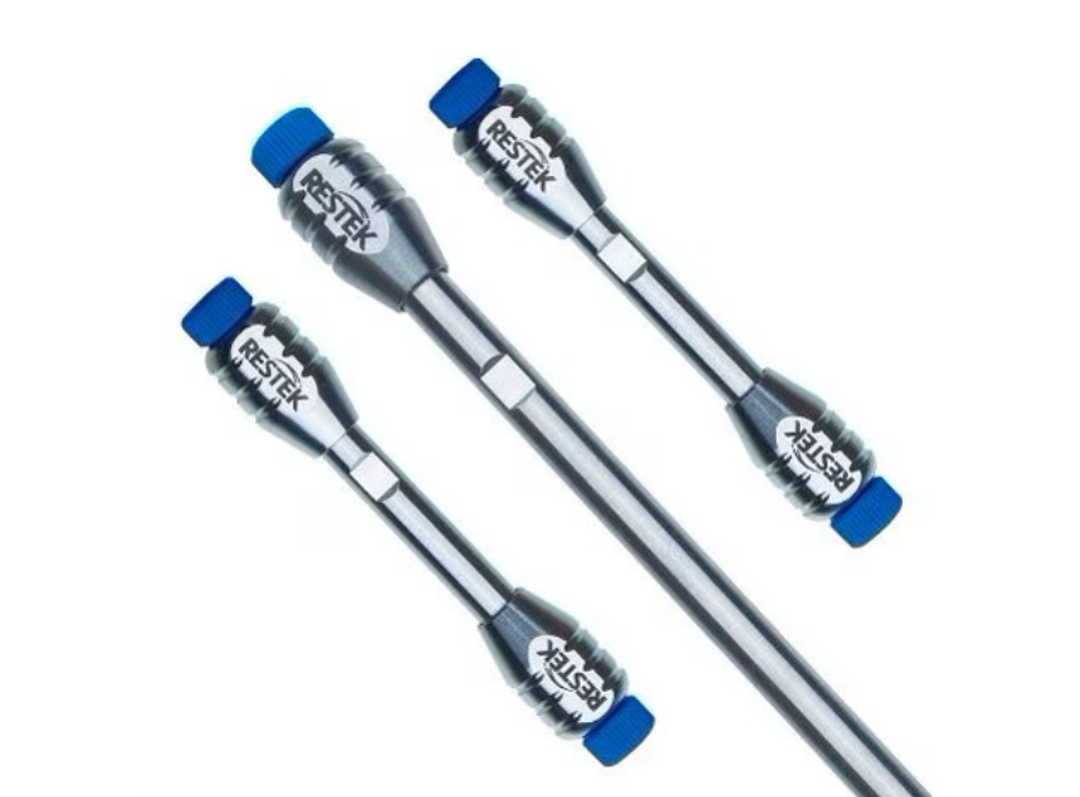

Ultra IBD, 3 µm, 100 x 2.1 mm HPLC column

Name: Ultra IBD, 3 µm, 100 x 2.1 mm HPLC column
SKU: 9175312
Rating: 0 (0 reviews)

Restek Corp.9175312Available: Worldwide

Specialized Columns for Mixed Polar and Nonpolar Compounds.

0.0/5.0

|0 Reviews|Be the first to review this product

Request Pricing

Receive your quote directly from the manufacturer.

Ease of Use

After Sales Service

Value for Money

Be the first to leave a review

Description

Description
News & Articles

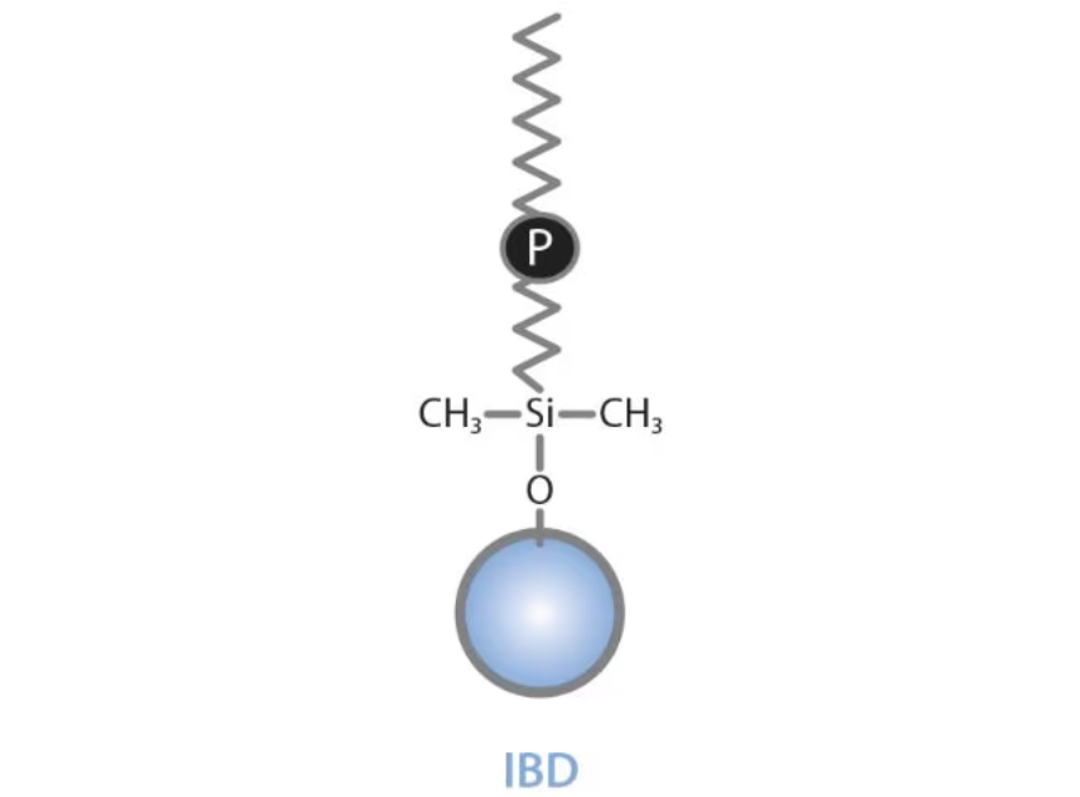

The Restek IBD is a polar-embedded column that acts as a strong hydrogen bonder and may be the most versatile column available today. With a unique polar group, this column is very retentive and selective for acids. It also provides symmetrical peak shape for strong bases. Restek’s IBD is compatible with 100% aqueous mobile phases and can be used under reversed-phase or HILIC conditions to retain very polar, ionic compounds in highly organic mobile phases.

Stationary Phase Category: polar-embedded alkyl (L68)
Ligand Type: proprietary polar functional embedded alkyl
Particle: 3 µm or 5 µm, spherical
Pore Size: 100 Å
Carbon Load: 12%
End-Cap: no
Surface Area: 300 m2/g
pH Range: 2.5 to 8
Maximum Temperature: 80 °C
