NANOlab™
High Precision, Nanoliter-Scale, Freedom at Every Step. NANOlab™ combines nanoliter dispensing, disposable tips, and flexible workflow setups to enable true walk-away protocols for dynamic genomics applications.
Receive your quote directly from the manufacturer.

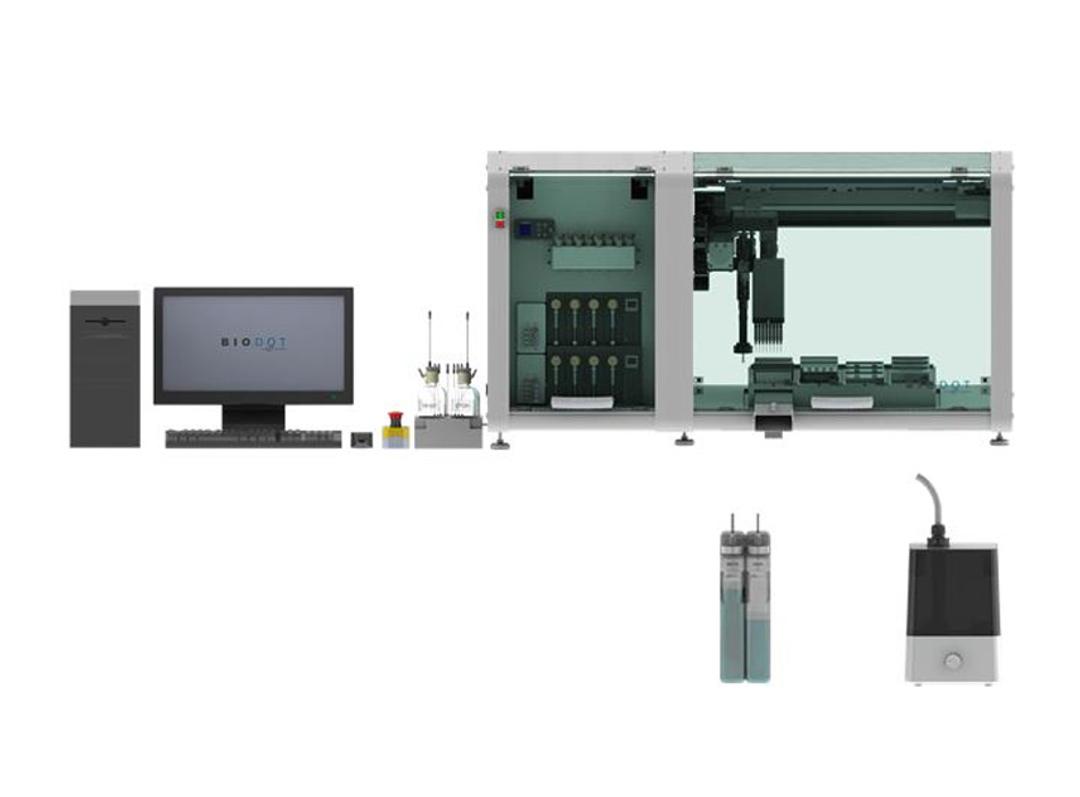

The NANOlab is a high-precision liquid handling system engineered for advanced genomics workflows that demand ultra-low-volume accuracy. Using disposable pipette tips to aspirate and dispense nanoliter-scale volumes, it delivers contamination-free operation and highly consistent results, ideal for NGS, PCR setup, library preparation, and other sensitive applications. Powered by advanced robotics and intuitive software, the platform supports high-throughput processing, flexible workflow configuration, and true walk-away automation.
Its precise nanoliter control minimizes reagent consumption while safeguarding the quality and integrity of low-abundance or fragile samples
Features
- Up to 8 Channels
- Configurable Dispensing including Fixed and Disposable Tips
- Nanoliter to Microliter Volumes (see options)
- Aspirate/Dispense and Bulk Dispense
- Motorized X, Y, Z Axes
- Mechanical Precision: X, Y, Z ≤ .03 μm (based on actuators microstepping)
- Dispense area of 500.38 x 400.05 mm
- Dispense onto Slides, Plates, Microfluidics
- Includes choice of default deck (For customized deck, see options)
- Automated Disposable Tip mount and ejection.
- Integrated Wash/Vacuum Station
- Ultrasonic Wash Station
- Integrated Humidity Chamber
- Advanced Vision System
- Vertical Camera
- ILD5000 In-Line Degasser
- PC Control Workstation with BioDot Studio Software include
* Dispense Volumes are Dispenser Technology Dependent
Options
nL to μL Dispensing Technologies
- BioJet
Nest Options
Choose one from the following options:
- Mixed Deck: 8 Sites (MTP, slides, datum)
- Disposable Tip only Deck: 8 Sites (MTP, slides, datum)
- Ceramic Tip only Deck: 9 Sites (MTP, slides, datum)
Service & Support Packages
