iRiS 4.2 MP Scientific CMOS Camera

The iRiS is a 4.2 Megapixel Scientific CMOS camera. The 2048x2048 sensor size enables a large field of view and ultimate image resolution. The camera is peltier cooled enabling low dark current.The iRiS Scientific CMOS combines ultra-low noise, extreme sensitivity, wide dynamic range and high resolution. The excellent quantum efficiency of 63% at 500 nm and 34% at 850 nm, makes the iRiS camera the ideal candidate for low ligh…

HORIBA Scientific

The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our  Product Directory.

Ease of Use
After Sales Service
Value for Money
Be the first to leave a review

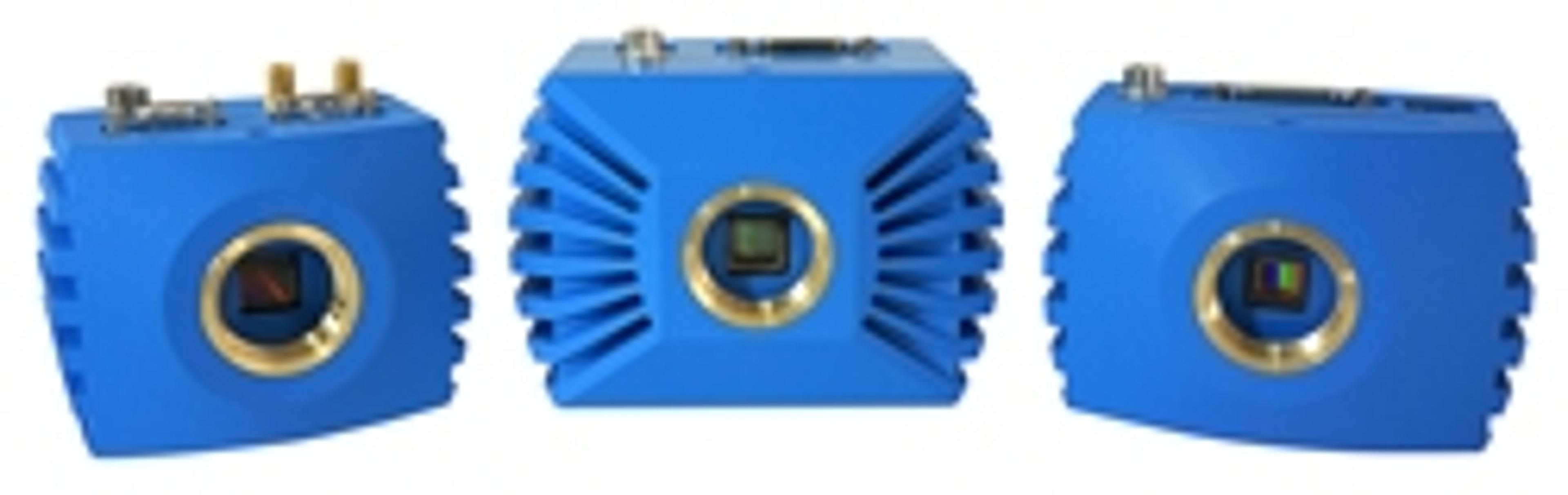

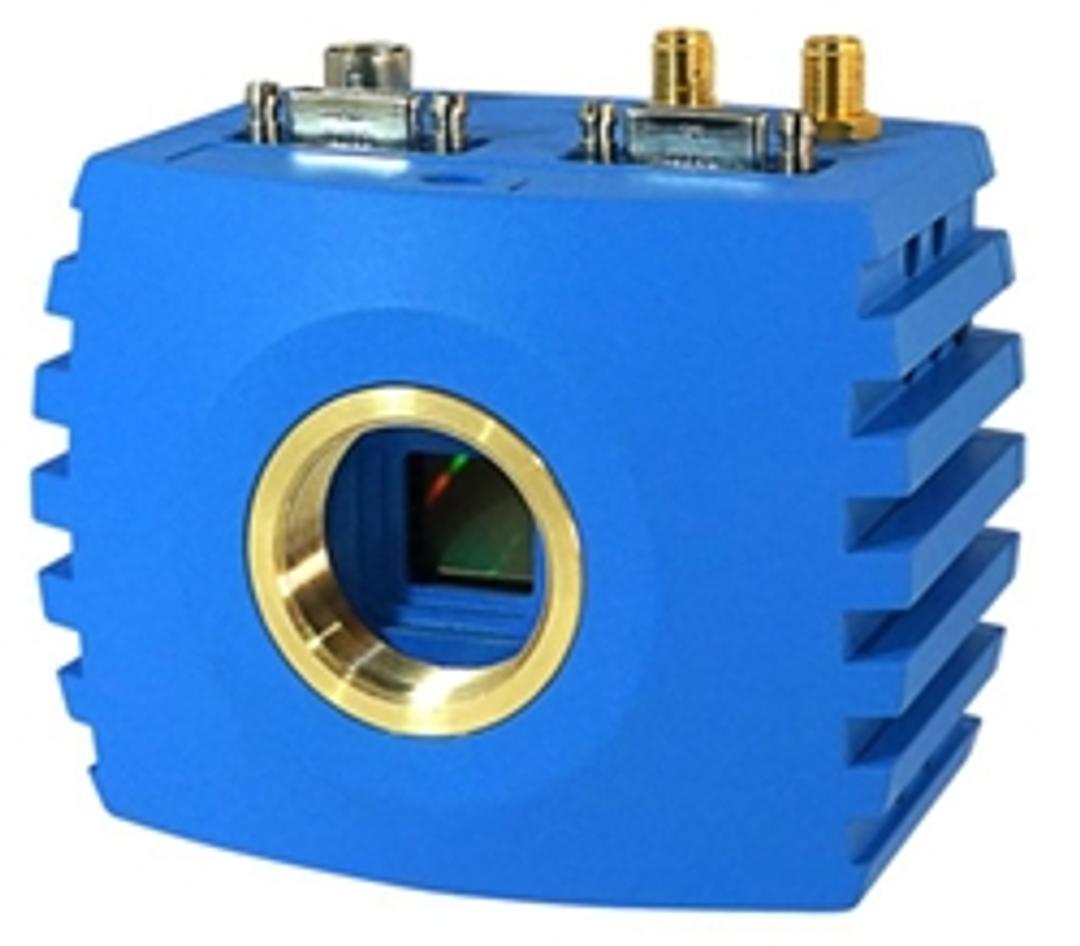

The iRiS is a 4.2 Megapixel Scientific CMOS camera.

The 2048x2048 sensor size enables a large field of view and ultimate image resolution. The camera is peltier cooled enabling low dark current.

The iRiS Scientific CMOS combines ultra-low noise, extreme sensitivity, wide dynamic range and high resolution. The excellent quantum efficiency of 63% at 500 nm and 34% at 850 nm, makes the iRiS camera the ideal candidate for low light, high resolution measurements.

iRiS uses a 12 bit A/D converter and offers a standard CameraLink output to offer the best, most reliable and cost effective interface solution.


Features & Benefits:

  • 4.2MP Scientific CMOS sensor - Enables large field of view imaging
  • 5.5µm x 5.5µm - Enables ultra sharp image resolution
  • On-board Non Uniformity Correction (NUC) - Enables highest quality images
  • TE cooling - Optimizes dark current
  • Quantum Efficiency: >63% @ 500nm and >34% @ 850nm - Optimum Photon collection
  • Ultra compact and rugged - Ideal for OEM integration into Life Science instruments

Applications:

  • Adaptive Optics and Astronomy
  • Bio & Chemi-luminescence
  • Calcium signaling
  • Fluorescence imaging / spectroscopy
  • Flow cytometry
  • FRET / FRAP / TIRF
  • Genome sequencing
  • High content screening
  • High resolution fluorescence imaging
  • Hyperspectral imaging
  • Live cell imaging
  • Single molecule detection
  • Solar cell inspection
  • X-ray tomography
