H117 Stage
Motorised stage for inverted stages
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.

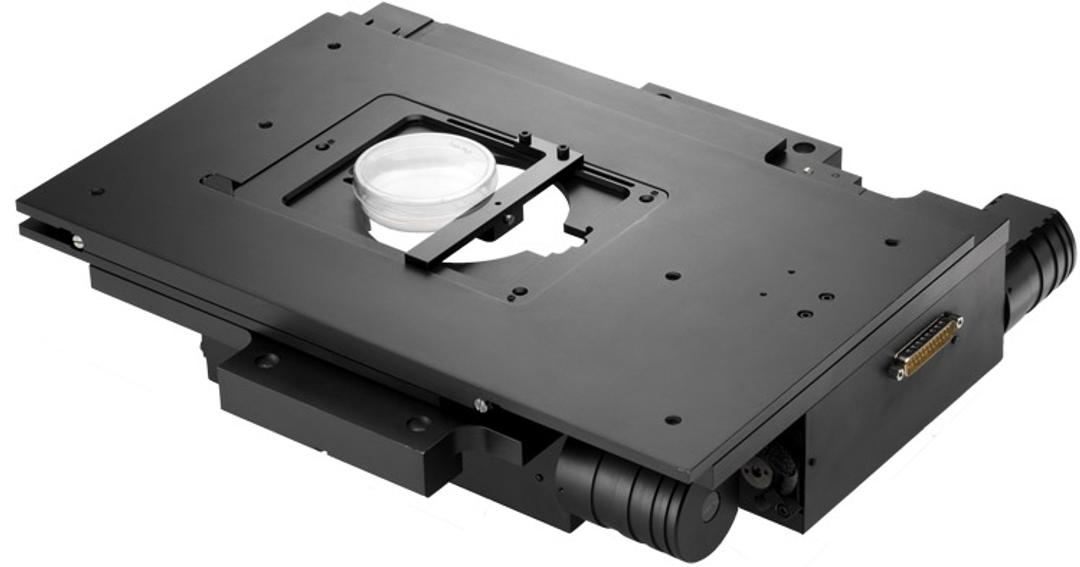

The H117 motorised stage offers a combination of precision, convenience and versatility to life scientists using inverted microscopes and allows the precise, repeatable control of x and y stage movement essential for multi-position, time-lapse experiments.
A wide variety of sample holders are compatible with the H117 stage, allowing everything from large tissue sections, to slides, to Petri dishes and well plates to be imaged, whilst an S-shaped acceleration algorithm leads to smooth movement, reducing disruption to samples. The H117 stage can accept incubation chambers, making this stage particularly well suited to live cell imaging. The stepper motor type and the ball screw options are available to more closely match the user’s exact needs. An expansive flat top design and large travel range greatly increases convenience. Patented Intelligent Scanning Technology assures the repeatability and accuracy of the stage . For applications requiring the highest precision possible, repeatability can be enhanced with the addition of linear 100 nm encoders.
FEATURES:
- Repeatability: 0.2 µm
- Minimum step size: 0.04/0.01 µm depending on ball screw and stepper motor type
- Maximum speed: 60/15 mm/s depending on ball screw and stepper motor type
- Ball Screw: Choice of 1 or 2 mm
- Motor Type: Choice of 400 or 200 stepper motor
- Encoders: Option of 100 nm
- Controlled by the ProScan® system
