H101A Stage
Motorised stage for upright microscopes
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.

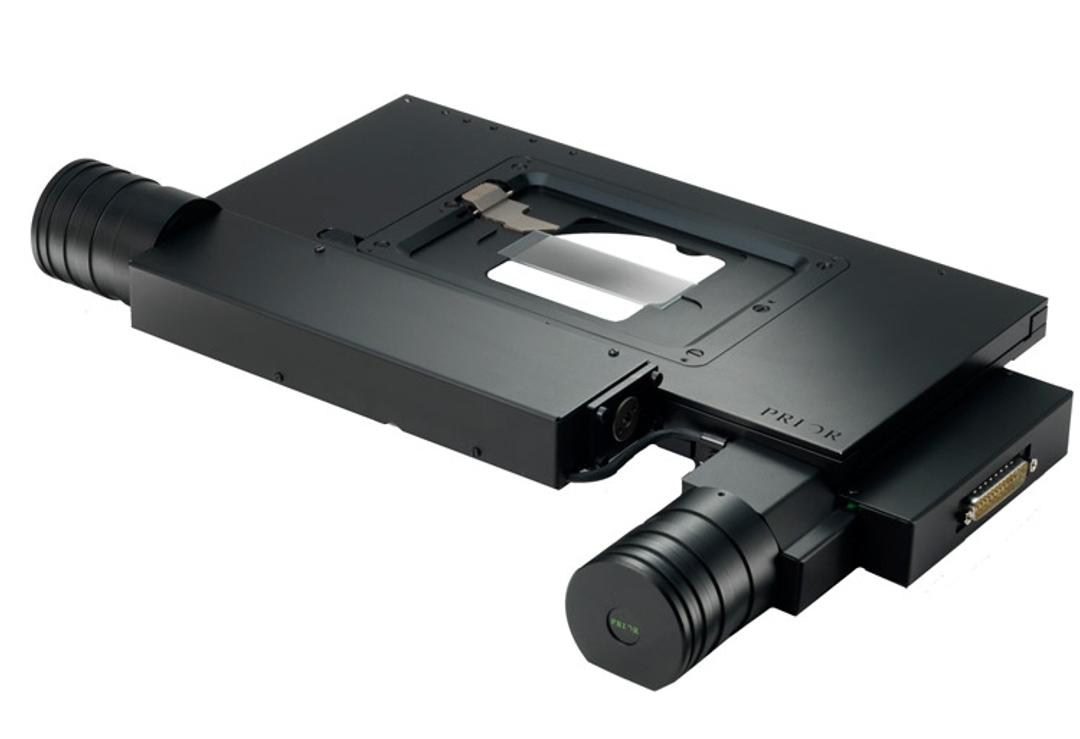

Designed for upright microscopes, the H101A range of motorised stages from Prior Scientific offers precise movement.
Accepting a range of low profile sample holders (including standard slides, microtitre plates and Petri dishes) this stage offers convenient precision for a vast range of applications in the life sciences. Using a motorised stage increases precision and allows the possibility of automation. Depending on the exact use to which it will be put, the H101A stage can accept linear encoders, and a choice of motor types and ball screw sizes are available. An S-shaped acceleration curve ensures smooth movement, reducing disruption to samples. Patented Intelligent Scanning Technology assures the repeatability and accuracy of the stage. For applications requiring the highest precision possible, repeatability can be enhanced with the addition of 100 nm linear encoders.
FEATURES:
- Repeatability: 0.2/1.5 µm
- Minimum step size: 0.04/0.02/0.01 µm depending on ball screw and motor type
- Maximum speed: 100/50 /25 mm/s depending on ball screw and motor type
- Ball Screw: Choice of 1 or 2 mm
- Motor Type: Choice of 400 or 200 stepper motor
- Encoders: Option of 100 nm
- Controlled by the ProScan® system
Brochures
Leica DMi8 Microscope System Chart
This system chart details the exact part numbers needed to build up your Leica DMi8 microscope system. It gives a guide of some of the compatible sample holders, stages, incubation chambers and shutters which Prior offer. The modular components from Prior Scientific allow you the freedom to build the perfect system for your research needs.
Prior Scientific Systems Chart
Systems chart from Prior Scientific highlight their product range.
H101A Motorized Scanning Stage
This product brochure for the H101A, a motorized scanning stage for upright microscopes. It details the features, dimensions and specifications of the stage. The H101A stage has an adaptation system to allow one universal stage to fit many microscopes compatible with many different sample holders.
Prior Neuroscience Solutions
Find out about the full range of equipment from Prior Scientific that can be utilized to greatly enhance your imaging system.
The Prior Scientific H101A ProScan® Microscope Stage - Combining Versatility and Precision
The H101A incorporates patented Intelligent Scanning Technology to optimize performance
