Syngene GeneTools - Advanced 1D gel analysis Syngene GeneTools is an advanced 1D gel and 2D spot blot analysis software for use with any gel documentation system. The Syngene GeneTools highly automated software can rapidly analyse a gel from loading an image to output of results in a matter of seconds. With an extensive and flexible array of options you can handle a range of media including gels, plates, films and blots,…
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
Syngene GeneTools - Advanced 1D gel analysis
Syngene GeneTools is an advanced 1D gel and 2D spot blot analysis software for use with any gel documentation system. The Syngene GeneTools highly automated software can rapidly analyse a gel from loading an image to output of results in a matter of seconds. With an extensive and flexible array of options you can handle a range of media including gels, plates, films and blots, making Syngene GeneTools one of the most versatile packages of its type. For speed, accuracy and ease of use Syngene GeneTools is a must for any gel documentation system. All Syngene systems come complete with GeneTools.
Syngene GeneTools offers you:

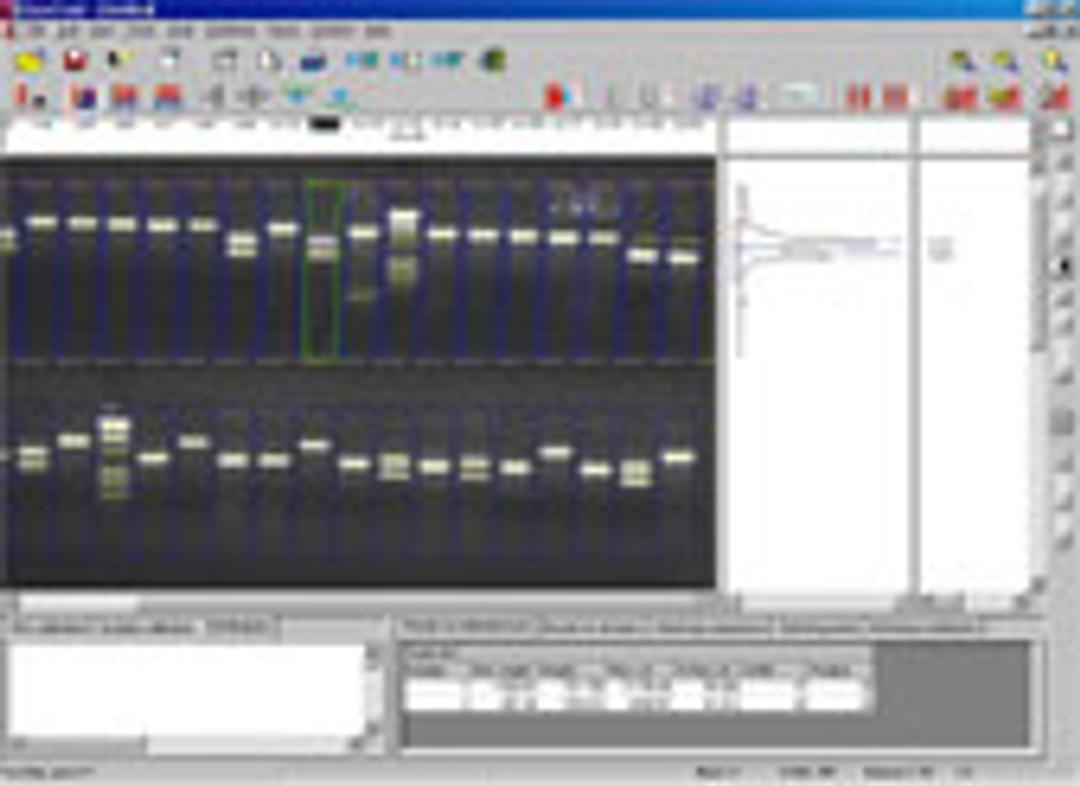

- Automatic lane and band detection with automatic corrections for track distortion and "smiling" bands
- Automatic analysis of multi-tier gels
- Wide choice of background subtraction methods
- Extensive calibration options (Rf, MW, BP and mass) with standards library
- High throughput screening analysis functions

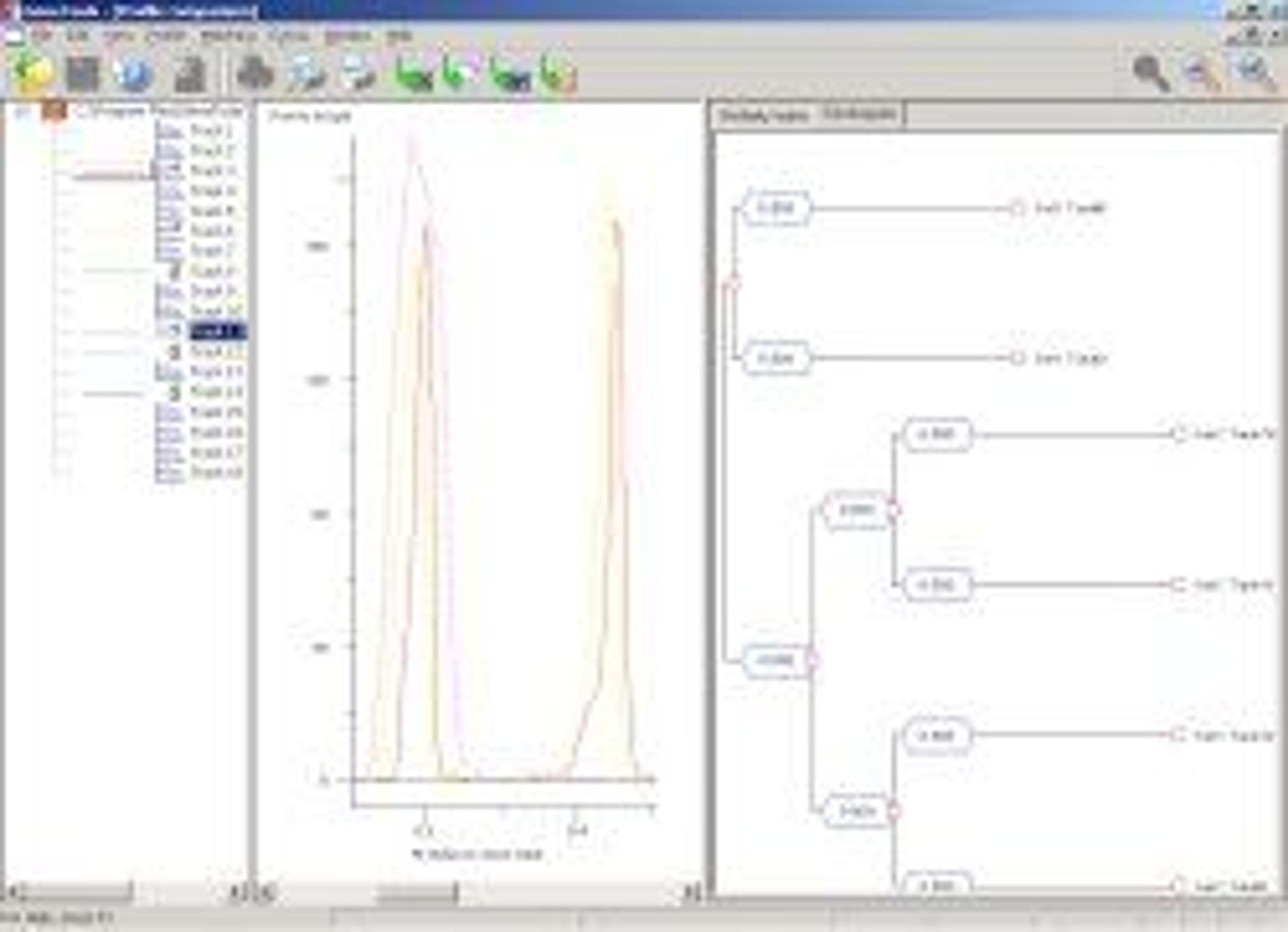

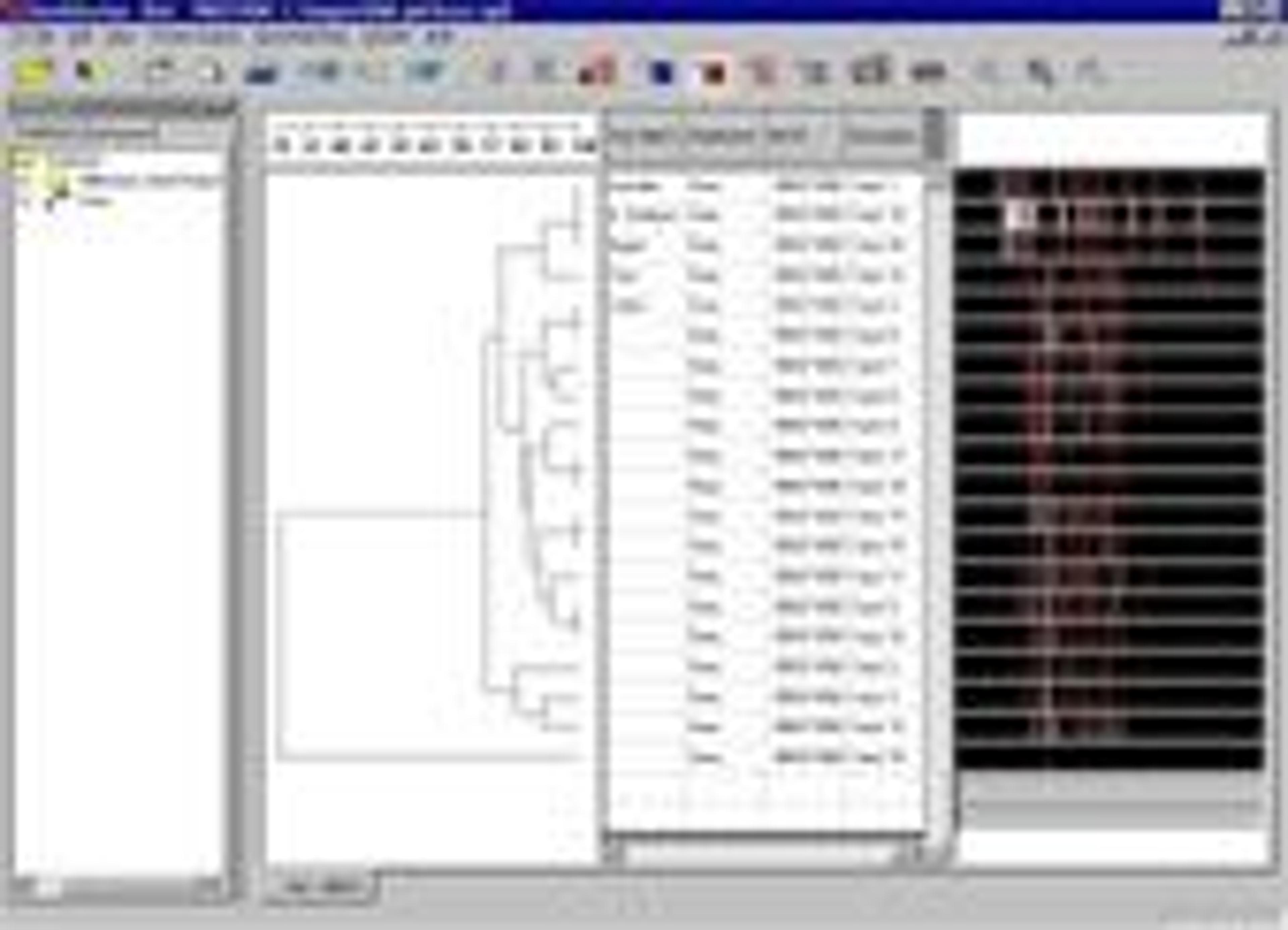

- Band matching for lane relationship comparisons with dendrogram generation
- Extensive results output including to Word and Excel
- Track profile comparison
- Integral image browser
- Adherence to Good Laboratory Practice at every stage including reporting
- Macros to speed analysis
Stain-Free Method for Western Blotting
Western blotting is a molecular biology tool commonly used for the detection of relative expression. The reliable assessment of changes in target protein levels by Western blot requires measurements of both the target and loading control proteins in the linear dynamic range. Stain-free technology allows the visualization and quantification of proteins in gels and blots.
Pixel Binning for Improved Sensitivity
Pixel binning is a process that further enhances sensitivity of a CCD sensor in terms of the speed of image acquisition. This process involves taking square groups of pixels and combining them into one ‘super’ pixel, capable of holding much more light. This has the effect of reducing required exposure times. It is however important to realize that the drawback of pixel binning is a reduction in image resolution. This application note explains the different types of pixel binning available, to maximize speed of image collection whilst maintaining the quality of your images.
Internal calibration with GeneTools
This application note discusses the need for internal calibration of GeneTools. Internal calibration is recommended instead of external calibration of each gel or autoradiograph to generate quantitative results every time.
Quantifying Expression Standards and Expression Values using GeneTools Software
In this application note GeneTools software (4.01 (d)) now enables the user to analyze western blots by identifying Expression Standards and Expression values across a row of bands.
Multi-Layered Gel Analysis-for High Throughput Screening
This application note shows that with GeneTools Software, full analysis is now possible on all layers/gels/blots at the same time. This is unique to GeneTools and saves researchers time.
Colony and Cell Counting using GeneTools Software
This application note demonstrates the ability of GeneTools colony and cell counting software for counting bacterial colonies or plaques and cells present on a petri-dish or multi-well plate. The software will automatically count colonies, separating clusters so there is no need for manual intervention.
Sygene’s GeneTools Software for Blot Analysis
Find out about GeneTools, the advanced 1D and 2D spot blot analysis software which can be used with any gel documentation system!
