Flat Top Stage
Flat top motorised stagefor upright microscopes.
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.

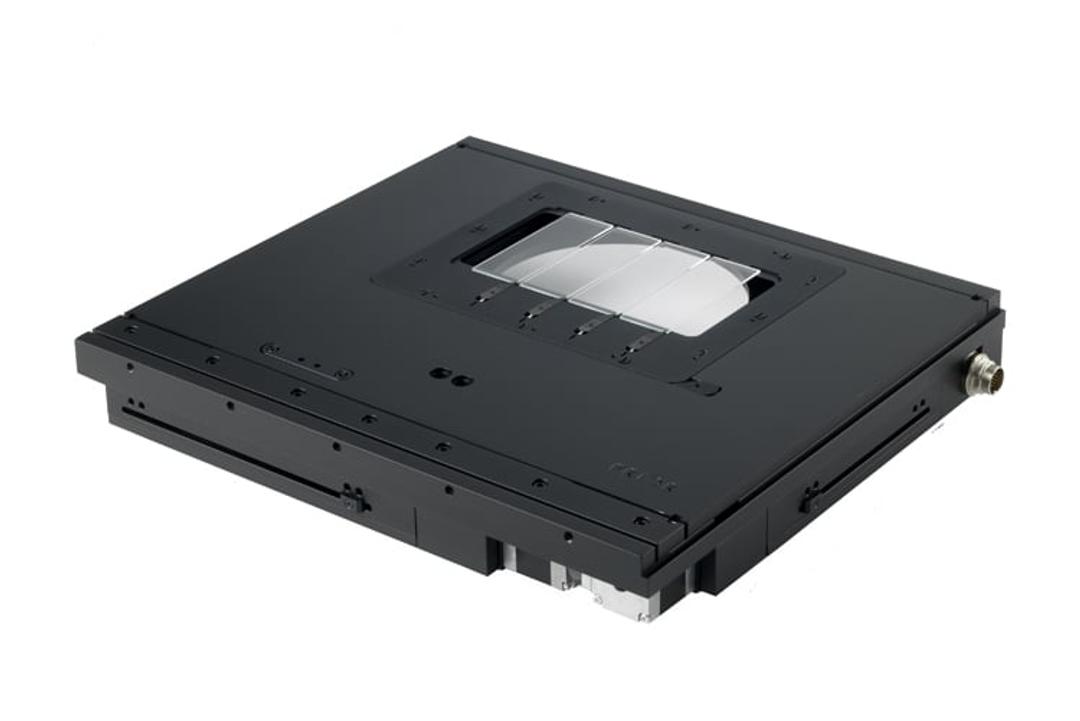

Designed for upright microscopes this motorised stage offers a powerful combination of precision and convenience.
Suitable for a vast range of life science applications, a large flat top provides a wide expanse of obstruction free space; giving a nose piece or objective an unimpeded 360° in which it may be rotated without any risk of damage to the stage, microscope or sample. The H101F flat top stage is thus ideal for systems requiring high precision coupled with high magnification, and allows the possibility of automating the imaging process. The versatility of this stage is further enhanced by a large sample holder area, whilst an S-shaped acceleration curve ensures smooth movement, reducing disruption to samples. Patented Intelligent Scanning Technology assures the repeatability and accuracy of the stage . For applications requiring the highest precision possible, repeatability can be enhanced with the addition of 100 nm linear encoders. Compatible with a vast range of sample holders, the H101F stage can be used to analyse slides, well plates, Petri dishes and many other types of samples. Whether the sample is a large tissue section or a few cells, the H101F stage offers the precision and versatility needed for your application.
FEATURES:
- Repeatability: 0.2 µm
- Minimum step size: 0.04/0.02 µm depending on ball screw
- Maximum speed: 100/50 mm/s depending on ball screw
- Ball Screw: Choice of 1 or 2 mm
- Motor Type: 200 stepper motor
- Encoders: Option of 100 nm
- Controlled by the ProScan® system
Brochures
Leica DMi8 Microscope System Chart
This system chart details the exact part numbers needed to build up your Leica DMi8 microscope system. It gives a guide of some of the compatible sample holders, stages, incubation chambers and shutters which Prior offer. The modular components from Prior Scientific allow you the freedom to build the perfect system for your research needs.
Prior Scientific Systems Chart
Systems chart from Prior Scientific highlight their product range.
H101F ProScan® Flat Top Stage
This product brochure for the H101F ProScan® Flat Top Stage, a motorized stepper stage for upright microscopes. It details the dimensions and specification of the stage as well as the compatible microscopes and controllers. The H101F stage offers a powerful combination of precision and convenience. By integrating this stage into the ProScan system, the end user gains a powerful, precise and versatile system which can be integrated with a huge range of microscopes, image analysis software and other microscopy accessories.
