MSP™ 320, Automated Digital Slide Scanner by CURIOSIS

Manufacturer CURIOSIS  |  Available Worldwide
MSP™ 320 revolutionizes pathology workflows by providing seamless access to digital slide images, empowering pathologists to review cases remotely and efficiently shorten the turn-around time. It ensures the secure data storage, archiving, and easy retrieval of high-quality digital images, overcoming the limitations associated with slide degradation while reinforcing the preservation of valuable specimens.

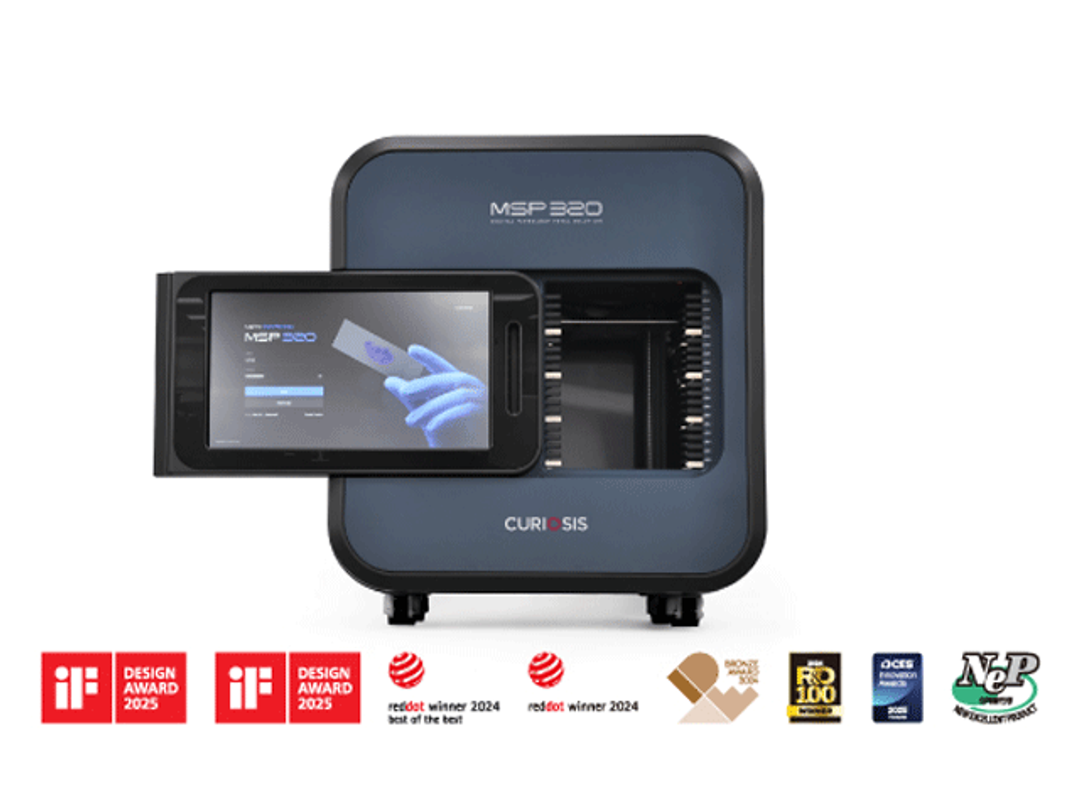

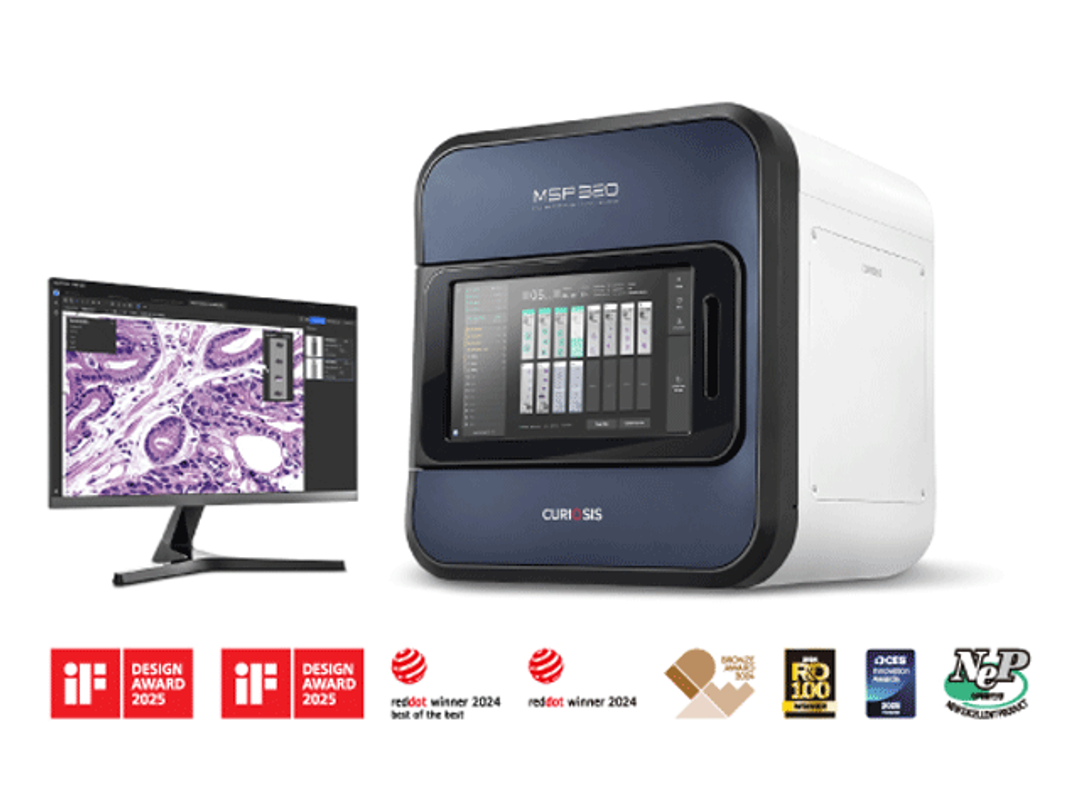

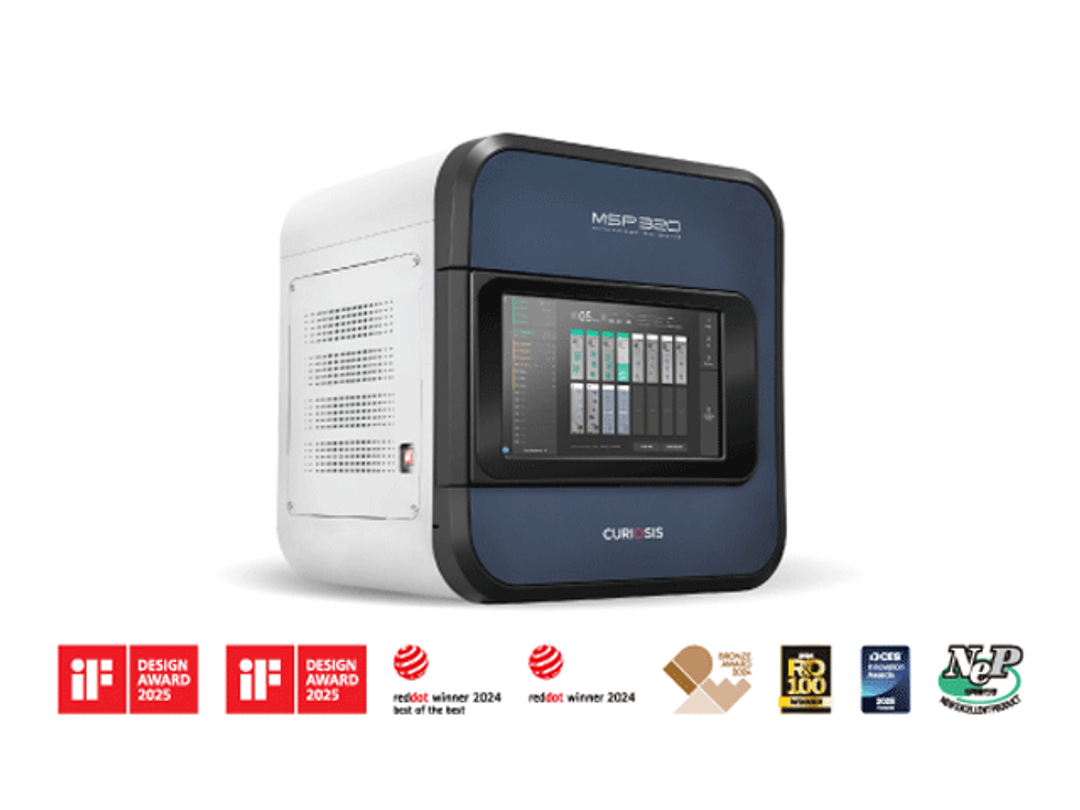

MSP™ 320, Automated Digital Slide Scanner by CURIOSIS product image
MSP™ 320, Automated Digital Slide Scanner
Request Pricing

Receive your quote directly from the manufacturer.



0 Scientists have reviewed this product


Write the First Review

No Reviews

MSP™ 320 also offers potential long-term cost savings by eliminating the need for physical slide storage, slide transportation, and associated logistical expenses. Moreover, it facilitates faster diagnoses and optimized treatment plans, leading to improved patient outcomes and cost efficiencies.

Key features

  • High Resolution
  • High Speed
  • High Throughput
  • Advanced Stitching Algorithm
  • Secure Data Storage and Transfer
  • Attached 23-inch Touchscreen Monitor

Specification

  • Slide capacity: 320 slides

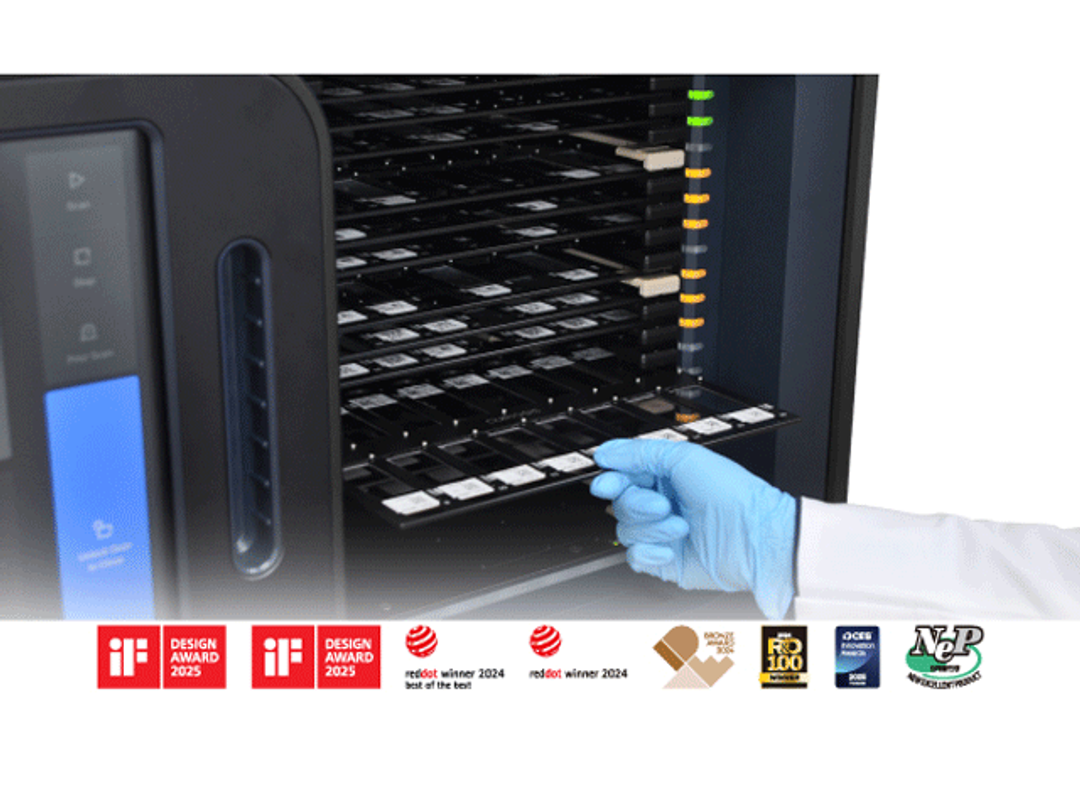

  • Rack/slide capacity: 20 trays x 16 slides
  • Magnification: Optical 20x
  • Resolution (μm/pixel): 0.19
  • Focus: Real-time laser autofocus
  • Scan speed (sec): 30 (15 x 15 mm2)
  • Scan area (mm): 54 x 24 (max tissue size)
  • Label area (mm): 25 x 15~20
  • Slide size (min, max, mm): 24~25 x 74~76 (1" x 3")
  • Scan mode: Bright-field
  • Continuous tray loading while scanning: Yes
  • Priority tray scanning: Yes
  • FOV (mm): 0.91 x 0.67 (single shot)
  • Touchscreen (cm): 52.1 x 29.3
  • Dimension (cm): 83.5 x 72 x 91.5 (116 x 72 x 91.5, when door open)
  • Weight (kg): 175
  • Power supply: 100-240V, 50/60Hz
  • Operating temperature: 10~35℃
  • Certifications: KFDA
