Qpol PLUS 1 / PLUS 2

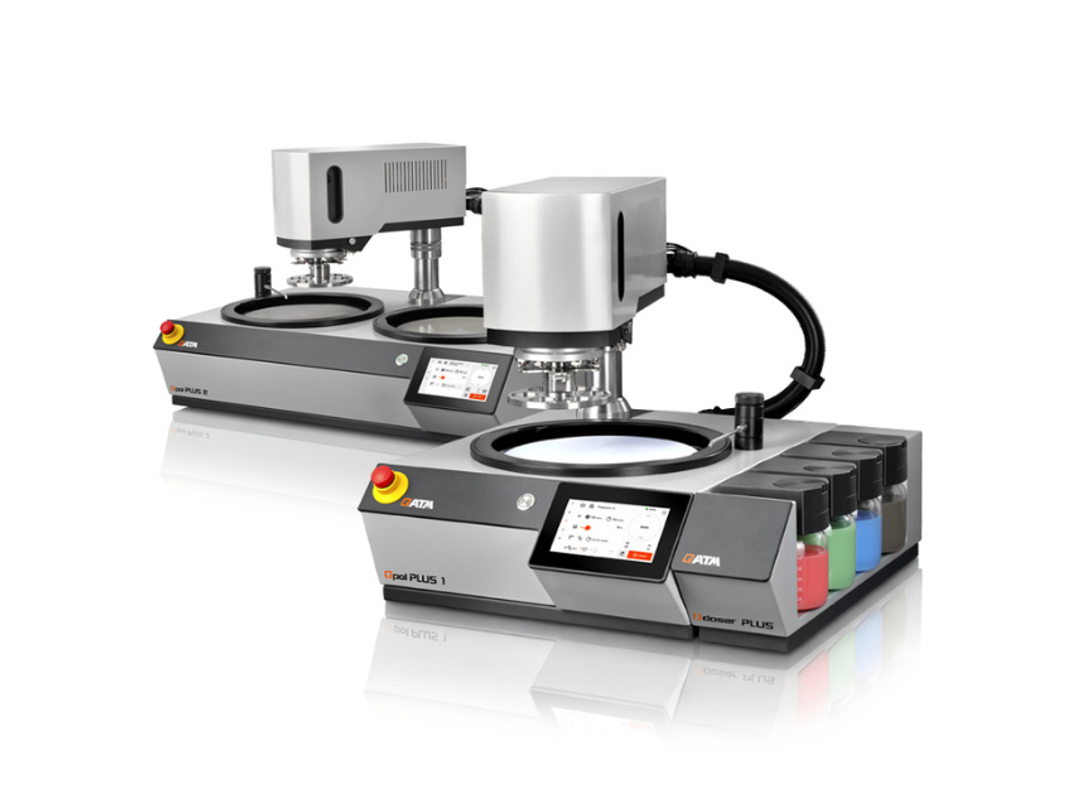

The Qpol PLUS 1 (single wheel) and PLUS 2 (twin wheel) are automatic grinding and polishing machines for the materialographic laboratory, designed for high throughput, large samples, and excellent reproducibility. They accept working wheels of Ø 200/250/300 mm and can operate with single pressure (individual plungers, up to 6 samples of Ø 50 mm) or central pressure (up to 5 samples Ø 50 mm), enabling grinding and polishing of mounted, unmounted, and oversized specimens. The PLUS grinding/polishing head exerts 5–80 N in single pressure and 20–350 N in central pressure mode. L-type sample holders allow central-pressure holders up to Ø 185 mm.

The machine body is a sturdy welded, powder-coated aluminum construction with a corrosion-free plastic tub. A Cleaning Boost spin-cycle function spin-dries the grinding/polishing medium at 750 rpm within 3 seconds at the end of each preparation process. Operation is via an integrated 7"" industrial touchscreen storing up to 200 preparation methods protected by user account management. Optional Qdoser GO, Qdoser PLUS, or Qdoser ONE dosing systems enable automated dispensing.

Key Features:

• Single-wheel (PLUS 1) or twin-wheel (PLUS 2) configurations
• Single or central pressure application (5–80 N / 20–350 N)
• Working wheels Ø 200/250/300 mm; sample holders up to Ø 185 mm (central pressure)
• Up to 200 stored preparation methods with user account management
• 7"" industrial touchscreen with QATM software; USB data transfer
• Single-disc design; Cleaning Boost (750 rpm, 3 s) for quick cleanup
• Optional Qdoser GO / PLUS / ONE dosing systems
• Two-hand operation and emergency stop for operator safety

Applications:

• Metallographic / materialographic sample grinding and polishing
• Preparation of large, mounted, unmounted, and oversized specimens
• High-throughput laboratory preparation requiring reproducible results
