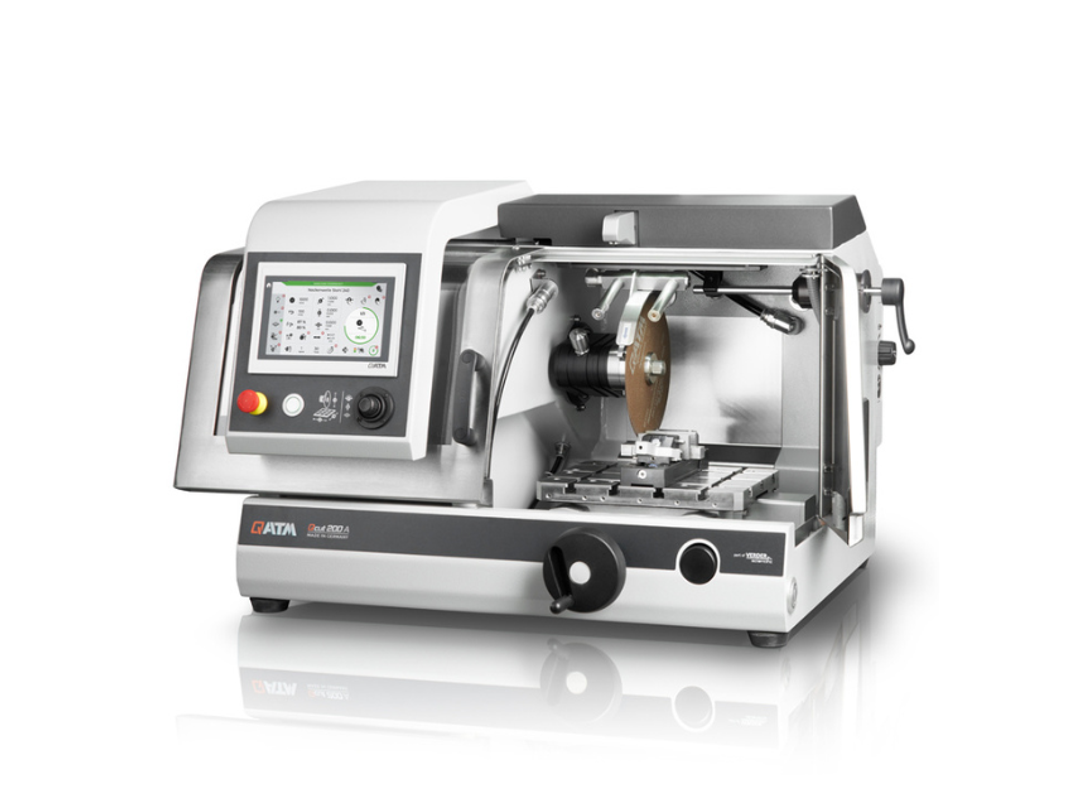

Qcut 200 A
Precision cut-off machine with up to 3 automatic axes (X, Y, Z) for cut-off wheels up to 203 mm / 8". Compact and modular design with high flexibility, efficient use of space, and numerous clamping options for wet abrasive sectioning of demanding samples.
Receive your quote directly from the manufacturer.
The Qcut 200 A is QATM's compact, precision wet abrasive cut-off machine — the fourth-generation successor to the popular Brilliant 220. It remains unique on the market for its large cut-off machine design in table format. With up to three fully automatic precision axes with backlash-free bearings and multiple cutting functions (travel cut, chop cut, and step-cut), it minimizes contact area with the cut-off wheel and optimizes the angle of action, making it ideal for solid materials. Thanks to its modular design, the machine can be optimally equipped using QATM's Easy clamping system, which fastens tools to the table with just one screw. In grinding mode with a cup wheel, the Qcut 200 A also enables highly precise thin sections with an accuracy of 5 µm. A modular turning device additionally allows rotational cuts to be performed.
The new cooling system provides approximately 25% higher flow rate than comparable machines, reducing cut-off wheel wear by up to 15% and protecting sensitive specimens from thermal damage. Operation is via a large 7"" industrial touchscreen with joystick control for comfortable axis movement. Safety features include two-hand control with enabling switch and intelligent component detection with auto-stop.
Key Features:
- Fully automatic precision axes (X, Y, optional Z) with backlash-free bearings
- New cooling system with ~25% higher flow rate; reduces cut-off wheel wear by up to 15%
- Automatic cleaning function via spiral nozzles in cutting chamber
- Intelligent component detection with auto-stop (exit detection)
- Simplified cut-off wheel change with locking function and integrated lubrication
- Dressing device for sharpening diamond cutting/grinding wheels
- Large 7"" industrial touchscreen with joystick control; laser alignment included as standard
- Easy clamping system and modular turning device
- Optional flow monitoring that interrupts cutting at a critical threshold
Applications:
- Materialographic / metallographic sample preparation (sectioning)
- Geology and mineralogy (e.g., thin sections with vacuum clamping unit)
- Cutting of solid materials and challenging or delicate samples
