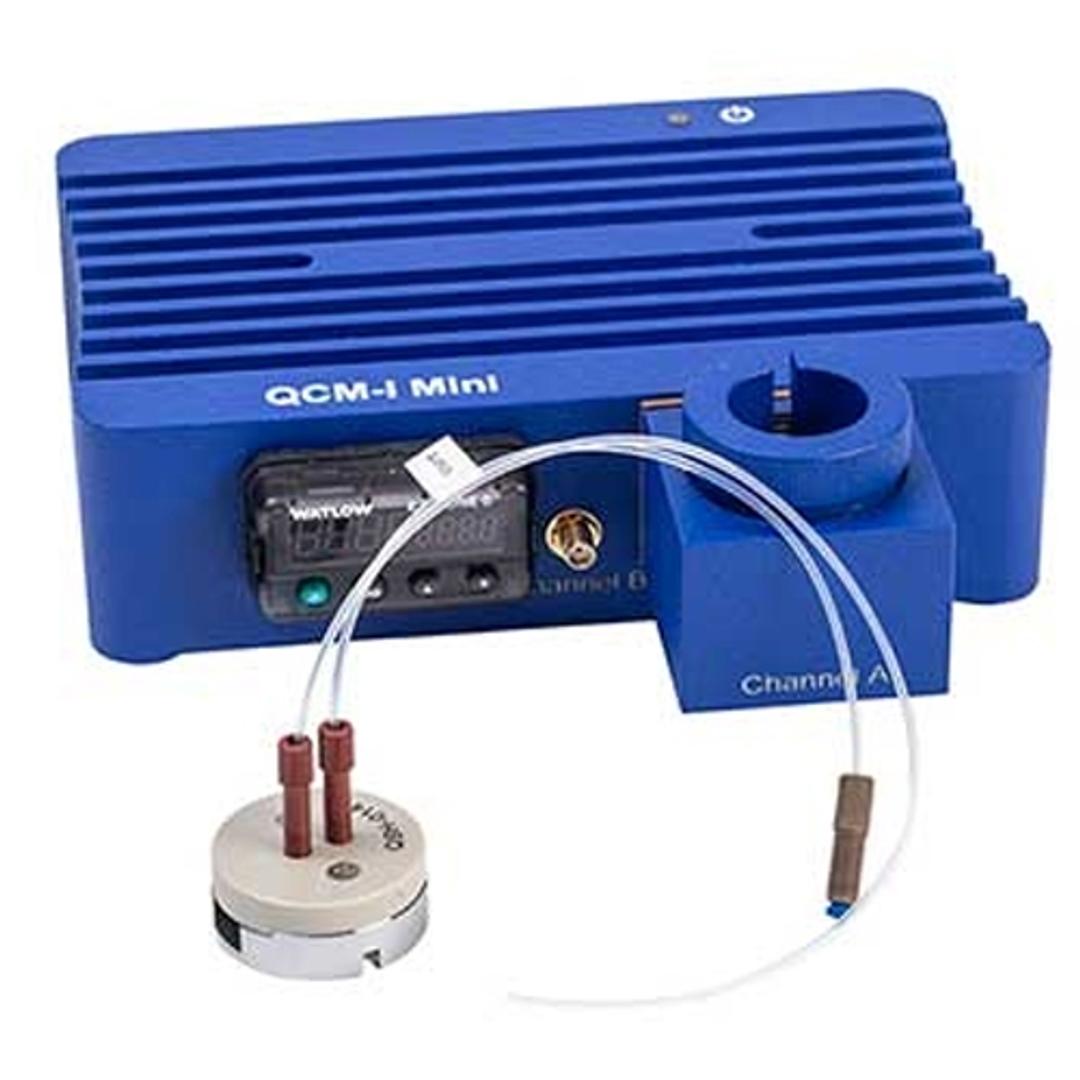

QCM-I Mini Quartz Crystal Microbalance
With Impedance Measurement and Dissipation. Both frequency and quality of resonance are measured.
QCM-I Mini Quartz Crystal Microbalance

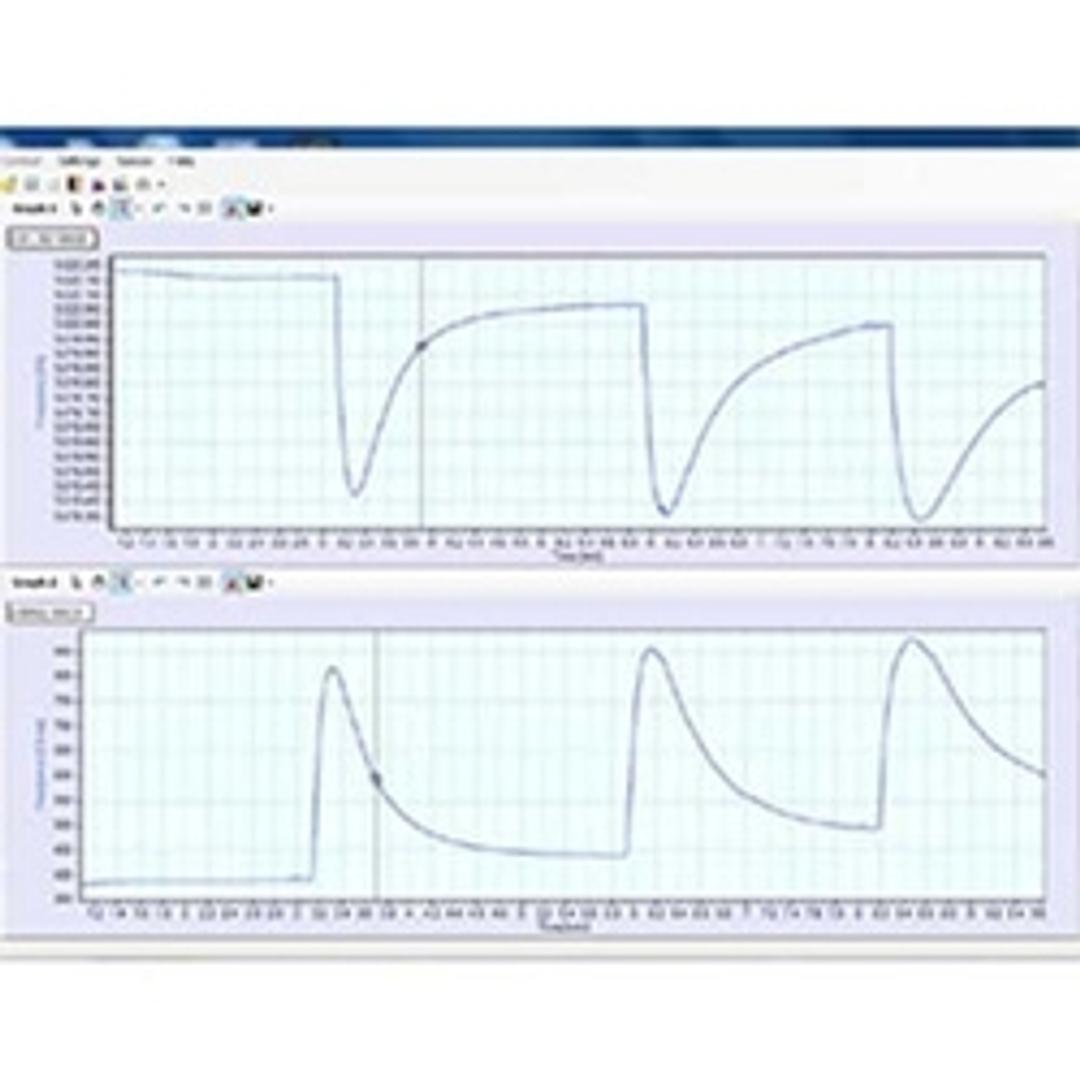

QCM-I Quartz Crystal Microbalance Software Control Measureme
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.
QCM-I Quartz Crystal Microbalance is a high-sensitivity mass sensor which measures the change in frequency and dissipation of a quartz crystal resonator and any adsorbed film.
QCM-I MiniFeatures:
- Both frequency and quality of resonance (FWHM or Bandwidth or Dissipation) are measured
- Different harmonics (up to the 13th Overtone at 5MHz Crystals) can be quickly and sequentially measured
- Temperature control from 15° C to 60° (± 0,02° C) in included on one channel
- Two independently measured channels
- External PC with Windows® 10 Communication with QCM-I Mini via USB.
Fluidic Configurations for QCM-I Quartz Crystal Microbalance with Impedance Analysis
This technical note summarizes the basic fluidic configurations that can be used with the QCM-I flow-cell sensor holders which are part of both QCM-I systems (The QCM-I and QCM-I Mini). The pump and injection valve options are provided as part of the QCM-I configuration and can be added to the QCM-I Mini base specification.
