4–15% Mini-PROTEAN™ TGX Stain-Free™ Protein Gels, 15 well, 15 µl by Bio-Rad

Manufacturer Bio-Rad  |   Model: 4568086  |  Available Worldwide
Pkg of 10 gels/box, 4–15%, 15-well, 15 µl, for use with Mini-PROTEAN electrophoresis cells and stain-free enabled imagers; 1 opening lever

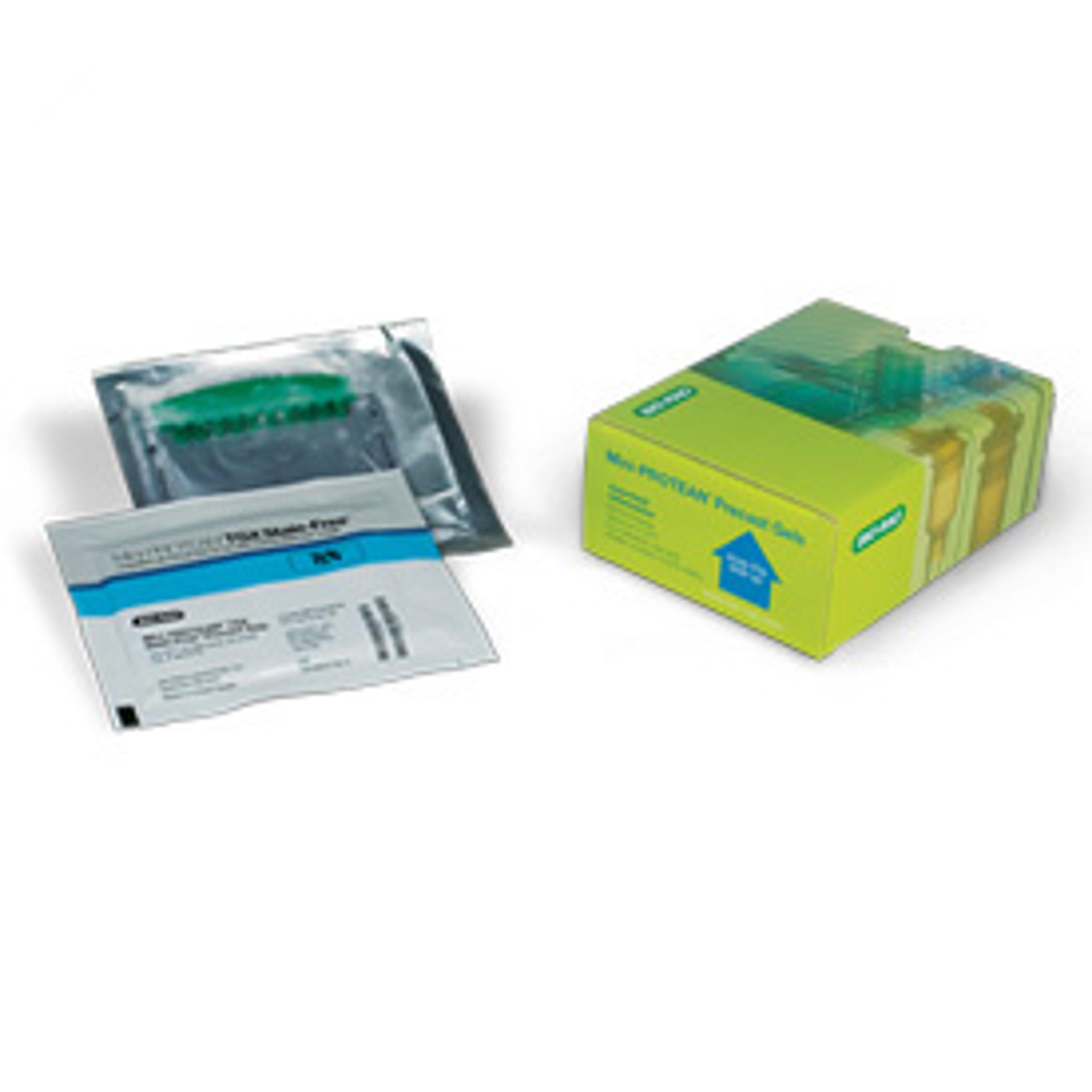

4–15% Mini-PROTEAN™ TGX Stain-Free™ Protein Gels, 15 well, 15 µl by Bio-Rad product image
4–15% Mini-PROTEAN™ TGX Stain-Free™ Protein Gels, 15 well, 15 µl
Buy Now

Place your order directly with the manufacturer.



0 Scientists have reviewed this product


Write the First Review

No Reviews

Use these Mini-PROTEAN TGX Stain-Free Protein Gels for separation of polypeptides 4–300 kD. Long-life TGX, Tris-Glycine eXtended, Stain-Free Gels have a novel formulation, which allows rapid  fluorescent detection of proteins with Bio-Rad’s stain-free enabled imaging systems. TGX Stain-Free Gels can be used for both standard denaturing protein separations as well as native electrophoresis.

Run up to 4 Mini-PROTEAN TGX Stain-Free Protein Gels in 35 min using the Mini-PROTEAN Tetra Cell.

There is a wide range of Mini-PROTEAN TGX Stain-Free Precast Protein Gels, including other gels with 15 wells, in both single percentages and gradients.

Features and Benefits

  • Stain-free imaging of gels and blots in 1 min
  • Can be used for denaturing electrophoresis with standard running buffer containing SDS
  • Laemmli-like separation in the presence of SDS
  • Run time as short as 15 min
  • Proteins retain native conformation and activity in the absence SDS
  • 12 month shelf life

Mini-PROTEAN TGX Stain-Free Gels contain trihalo compounds, which in the presence of UV-light react with tryptophan residues producing fluorescence. The fluorophores remain covalently bound to the proteins throughout electrophoresis and blotting, and may be visualized in gels or multiple times on PVDF membranes.

Cassette opening levers (4560000) are sold separately.


Related Products

  • 2x Laemmli Sample Buffer (1610737)
  • Native Sample Buffer (1610738)
  • 10x Tris/Glycine/SDS Running Buffer (1610732)
  • 10x Tris/Glycine Running Buffer (1610734)
  • Protein Ladders and Standards (Markers) including unstained, prestained and western

Supporting Documentation

Mini-PROTEAN TGX Precast Protein Gel Quick Start Guide
Mini-PROTEAN Precast Gels Instruction Manual and Application Guide
