VOC-Mole soil probe

Name: VOC-Mole soil probe
Rating: 0 (0 reviews)

Robust and easy-to-use soil gas sampler. The VOC-Mole is a stainless steel assembly that is inserted into the ground, allowing soil gas to be sampled onto a sorbent tube, for analysis by thermal desorption (TD)–GC–MS.The VOC-Mole is simple to use and easy to transport, and perfect for any analyst wishing to monitor levels of volatile organic compounds in soil.Features: Organic pollutants pass through holes in the hollow t…

0.0/5.0

|0 Reviews|Be the first to review this product

Request Pricing

Receive your quote directly from the manufacturer.

Ease of Use

After Sales Service

Value for Money

Be the first to leave a review

Description

Robust and easy-to-use soil gas sampler.

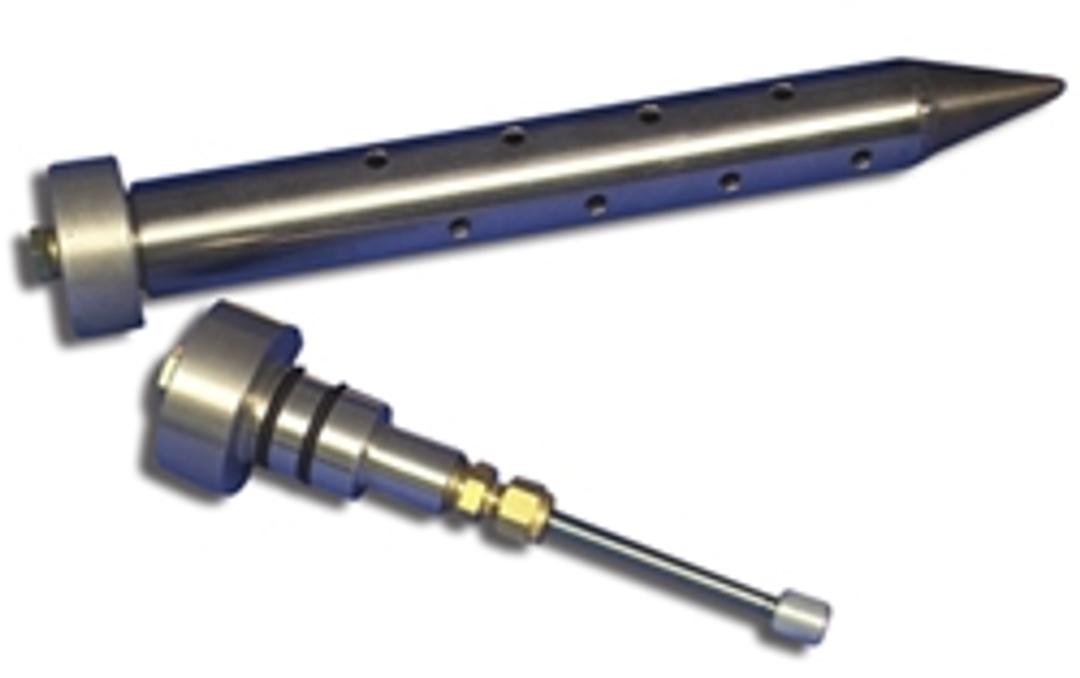

The VOC-Mole is a stainless steel assembly that is inserted into the ground, allowing soil gas to be sampled onto a sorbent tube, for analysis by thermal desorption (TD)–GC–MS.

The VOC-Mole is simple to use and easy to transport, and perfect for any analyst wishing to monitor levels of volatile organic compounds in soil.

Features:

Organic pollutants pass through holes in the hollow tube and are collected on a sorbent tube.
Probe can be left in ground for long periods.
Compatible with diffusive and pumped sampling.
Use of multiple VOC-Moles in a grid arrangement allows the creation of VOC maps.
Special cap prevents ingress of water, wildlife and soil debris.
Various pack sizes and probe lengths available.

Applications:

Surveys of industrial, waste and brownfield sites.
Screening of organic pollutants over large areas.
Pinpointing of leaks from pipelines and industrial facilities.
