H138A
Motorised stage for upright microscopes able to hold eight slides
The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our Product Directory.

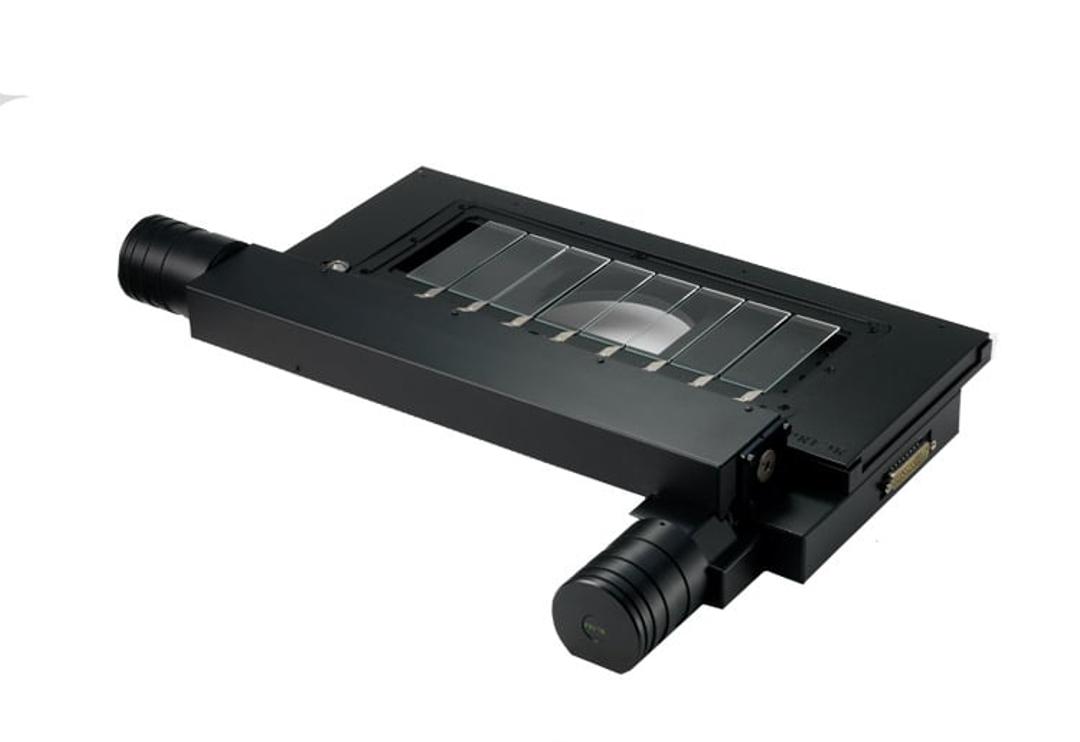

Designed for upright microscopes and for users who need to rapidly image a large number of slides, the H138A motorised stage from Prior Scientific offers precise movement.
With a large sample holder capable of holding up to 8 standard slides, this stage allows accurate imaging whilst increasing the speed of image acquisition. A choice of motor types and high precision ball screws are available. An S-shaped acceleration curve ensures smooth movement, reducing disruption to samples. Using a motorised stage increases precision and allows the possibility of automation. Patented Intelligent Scanning Technology assures the repeatability and accuracy of the stage . For applications requiring the highest precision possible, repeatability can be enhanced with the addition of 100 nm linear encoders.
FEATURES:
- Accepts up to 8 standard slides simultaneously
- Repeatability: 0.2/1.5 µm
- Minimum step size: 0.04/0.02 µm depending on ball screw and motor type
- Maximum speed: 100/50 mm/s depending on ball screw and motor type
- Ball Screw: Choice of 1 or 2 mm
- Motor Type: 200 stepper motor
- Encoders: Option of 100 nm
- Controlled by the ProScan® system
Brochures
Leica DMi8 Microscope System Chart
This system chart details the exact part numbers needed to build up your Leica DMi8 microscope system. It gives a guide of some of the compatible sample holders, stages, incubation chambers and shutters which Prior offer. The modular components from Prior Scientific allow you the freedom to build the perfect system for your research needs.
Nikon AZ100 Systems Chart
If you have a Nikon AZ100 then this sheet can be used to build up your system using compatible Prior Scientific products.
Prior Scientific Systems Chart
Systems chart from Prior Scientific highlight their product range.
H138A Stage: Multi-Slide Motorized Stage for Upright Microscopes
Designed to fit most upright microscopes, the H138A ProScan™ stage is designed to increase the speed at which images and data are obtained, whilst retaining the precision and reliability associated with a product from Prior Scientific.
Prior Neuroscience Solutions
Find out about the full range of equipment from Prior Scientific that can be utilized to greatly enhance your imaging system.
