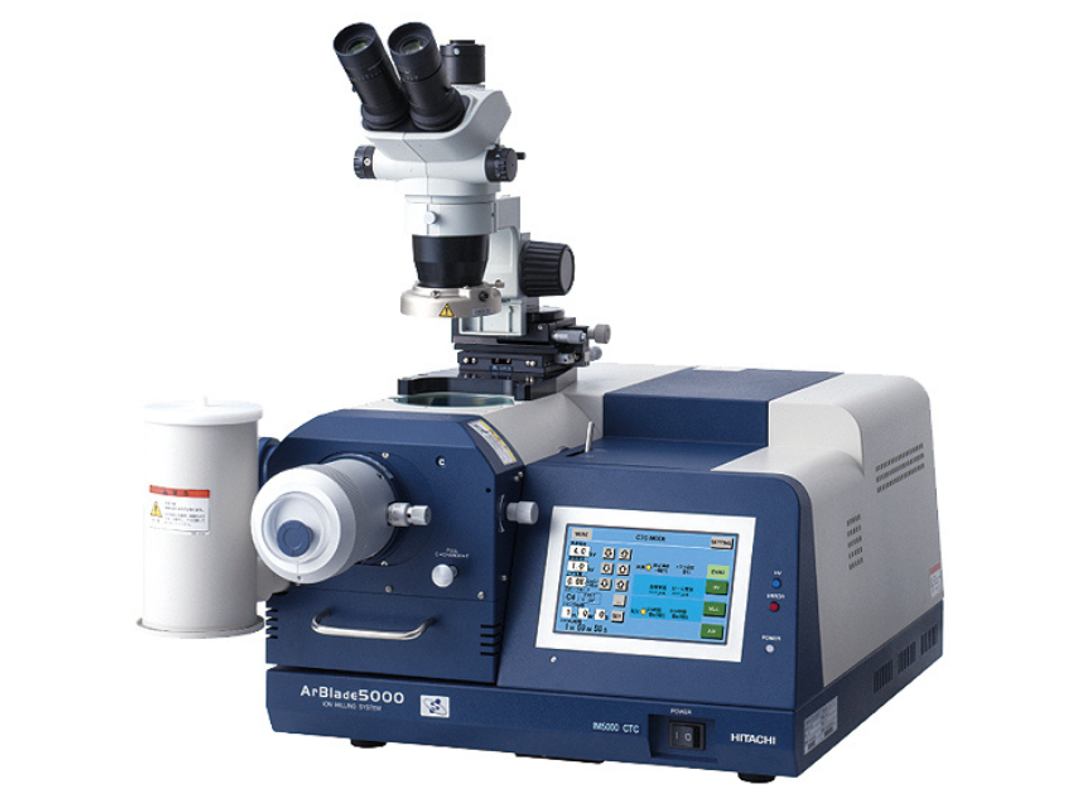

ArBlade 5000 II/IM5000 II-CTC

High-performance Ar+ ion polisher

Hitachi High-Tech Europe

The supplier does not provide quotations for this product through SelectScience. You can search for similar products in our  Product Directory.

Ease of Use
After Sales Service
Value for Money
Be the first to leave a review

"ArBlade 5000 / IM5000 extends the cross-sectioning capabilities of the IM4000 II series with the option of expanding cross-sections to a width of up to 10 mm, depending on actual requirements. For this purpose, the sample is periodically moved laterally during cross-cutting in the previously registered processing area while remaining in the optimum focus. Sequential processing of several individual positions is also possible as an option; the optional multiple sample holder allows automatic processing of up to 3 samples.

The ArBlade 5000 / IM5000 is equipped with a more powerful ion gun with a removal rate of over 1mm per hour. With the ArBlade 5000-CTC, cryo cross-sections of variable widths are also possible at definable process temperatures down to -100 °C.

Product features:

  • Single, robust and maintenance friendly Penningtype ion gun with independent control of beam current and acceleration voltage. Allows intensive ion beams at all acceleration voltages (0-8kV)
  • Cross-section widths can be flexibly selected by periodically moving the sample relative to the ion beamfrom 1 mm to 10 mm wide
  • Cross-sectional process depth in Si with 100µm protrusion above mask, stage oscillation +/-30°, is 1000µm per hour or more
  • Surface polishing can be carried out at tilt angles from 0° to 90°, angle can be changed during the process"
