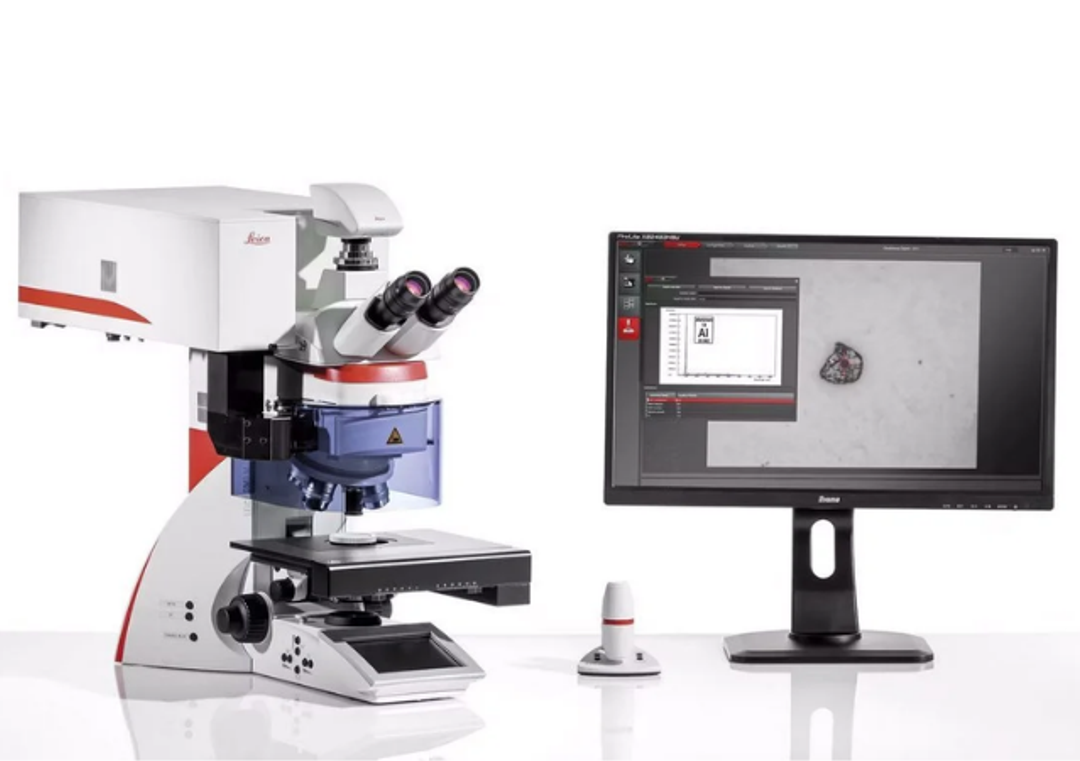

DM6 M LIBS Material Analysis Microscope
Use the DM6 M fully motorized inspection microscope with all contrasting modes and benefit from the huge magnification range starting at 1.25x for fast sample overview.
Receive your quote directly from the manufacturer.
The light and contrast manager adjusts the required settings for each objective and contrast mode fully automatically and so allows easy operation for each user. By the possibility of an instantaneous chemical analysis by laser induced breakdown spectroscopy (LIBS) the user gets all required information direct and on the spot within seconds without the need of further sample preparation or transportation to other devices.
- The LIBS module turns a Leica optical microscope into a 1-step solution that combines visual inspection and chemical analysis right at your workspace
- Determine the composition of what you have visually identified within seconds
- Use LIBS to perform advanced material analysis 90% faster compared to inspection with SEM/EDS
- Surface contamination or coatings can also be easily removed
- Chemical mapping and micro-drilling are further analytical steps
Specifications
- Including Light Manager for a time saving and easy operation.
- For a very fast overview on the sample the 1.25x objective can be adapted.
The integrated Contrast Manager adjusts the required settings for each objective and contrast mode fully automatically and so allows easy operation for each user.
- 27“ 4k HDMI Monitor
- W2 Workstation (for imaging with xyz-motorized Microscopes)
- Motorized Z-drive
- With magnification changer
- Phototube HC L2TU 4/5/6
- Motorized objective turret
- With DF contrast
- Automated (motorized + scanning)
- Scanning stage 100x100 (2mm)
- Metal insert 160x116
- LIBS standard sample
