Environmental monitoring and testing uses handheld portable analyzers, kits, spectrometers or chromatography systems for air, water, soil, food and other sample testing. Useful features of analyzers such as BOD and COD include portability, easy calibration, automation and sensitivity. Environmental test kits for pH, water, moisture, etc, should be accurate, sensitive, reliable, fast and easy to use.
In Photoacoustic Spectroscopy (PAS) the gas to be measured is irradiated by modulated light of a pre-selected wavelength. The gas molecules absorb some of the light energy and convert it into an acoustic signal which is detected by a microphone. Photoacoustic IR Analyzer(s) Highlights: Low Sensitivity (From ppb to Percent Levels) Yearly Calibration Minimal Maintenance Measures up to Five Gases + H2O Temperature and…
The CAI NOxBox system has been specifically designed for harsh environment condition s frequently found in outdoor selective catalytic reactor applications. The analyzer system is housed in a Nema 4 enclosure with a front lockable door. The enclosure contains a heating and cooling system to maintain a constant internal temperature for the gas analyzer and interface equipment regardless of outside environmental effects. The sa…
The CAI Mark 3 Intelligent Sampling System is a third generation single board computer controlled industrial sequencer. The system has been developed over many years as higher specifications components have been added to the proven single board computers on the Mark 1 and Mark 2 Samplers. These have been in production for over 15 years. CAI specialize in custom building these systems and are able to modify and write special s…
This competitively-priced, single-channel dissolved oxygen meter is easy to set up and use while providing reliable, accurate DO measurement for water analysis and general laboratory applications. The rugged meter displays DO concentration or percent DO Saturation and offers a full complement of GLP-related features. It offers enhanced stability indicators, salinity correction and automatic barometric pressure compensation—…
This waterproof, battery-operated DO meter stands up to the most demanding water analysis applications and delivers over 2,000 hours of continuous operation. Convenient Quick-Start Guide is located on the back of the meter to make the unit easy to operate in the field. The rugged meter displays DO concentration or percent DO Saturation and offers a full complement of GLP-related features. It offers enhanced stability indica…
This waterproof, battery-operated pH/DO meter stands up to the most demanding water analysis applications and delivers over 2,000 hours of continuous operation. Convenient Quick-Start Guide is located on the back of the meter to make the unit easy to operate in the field. The rugged meter displays DO concentration or percent DO Saturation and offers a full complement of GLP-related features—including available 21 CFR Part 11…

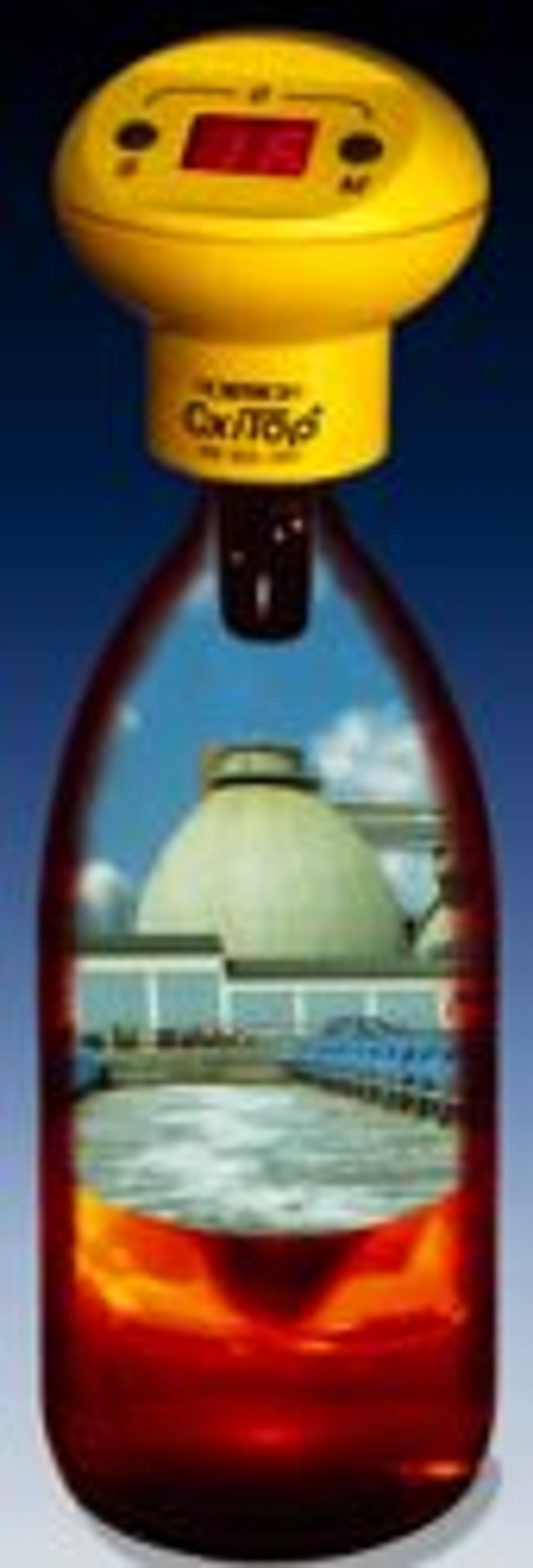

Biochemical oxygen demand (BOD) determination is still one of the most important parameters in water resource management. It can be used to evaluate the impact of biodegradable substances in waters and waster water. With its OxiTop ® systems, WTW offers a unique, modular and mercury-free instrument system. It is not only suitable for BOD determination, but also for measuring biodegradability and deple-tion.The advantages of Ox…

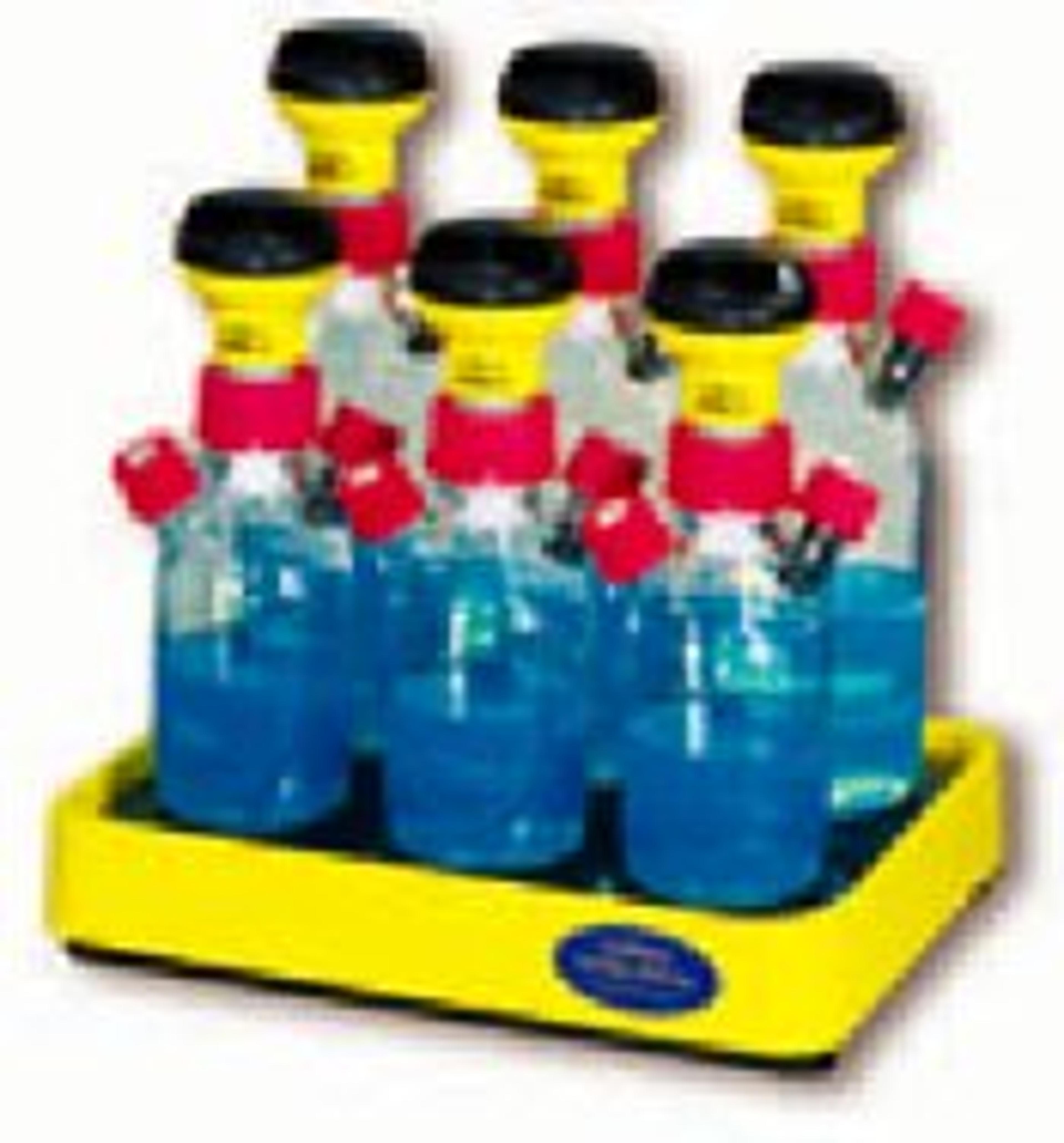

Complete packages for 6 or 12 simultaneous measurementsMeasurement using OxiTop ® is based on pressure measurement in a closed system: microorganisms in the sample consume the oxy-gen and form CO 2 . This is absorbed by NaOH, creating a vacuum which can be read directly as a measured value in mg/l BOD.The used sample volume regulates the amount of oxygen available for a complete BOD. Measurement ranges of up to 4,000 mg/l can…

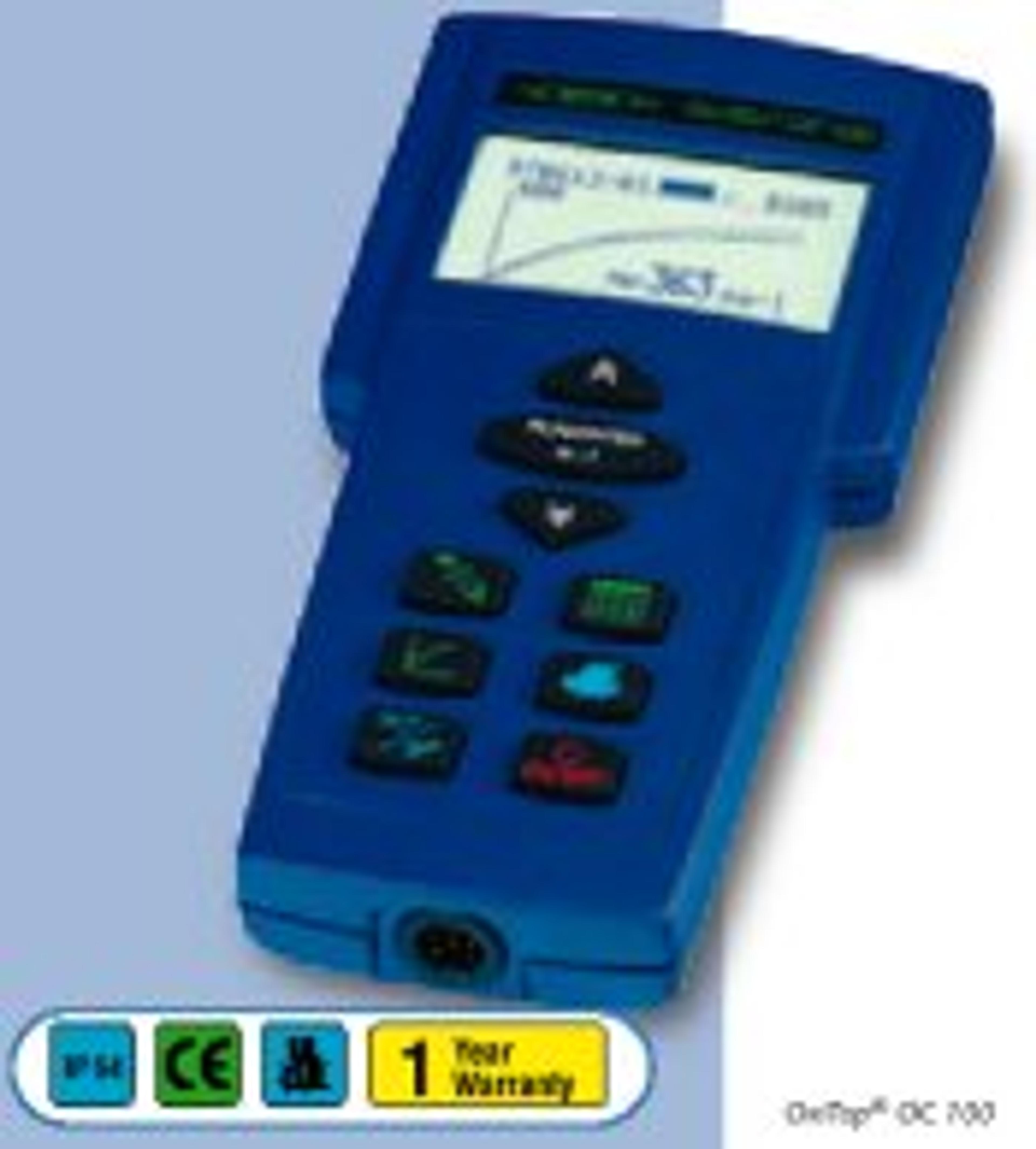

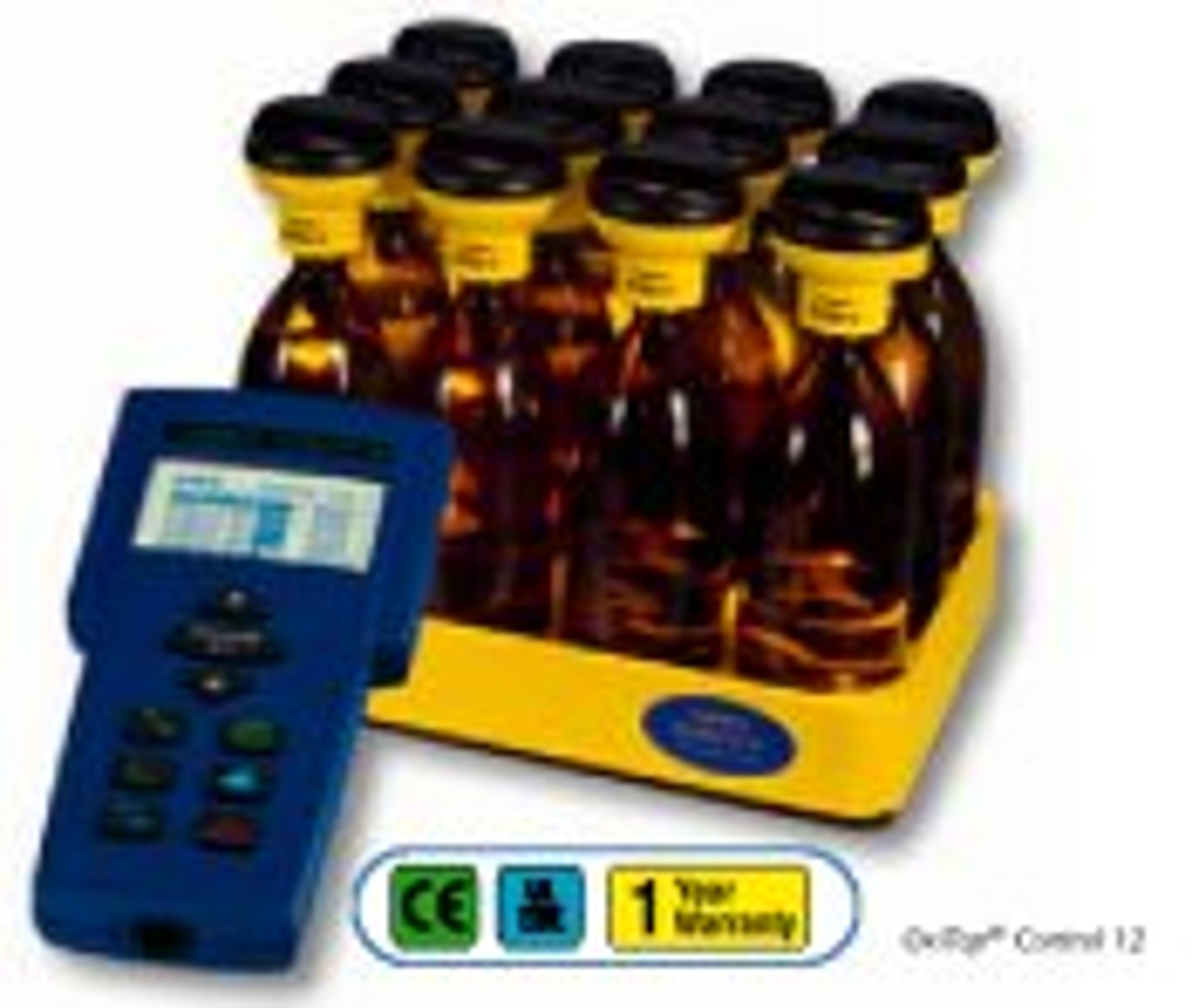

Complete package for 6 or 12 simultaneous measurements – For a larger number of samples and with simple sample measurement OxiTop ® Control is the logical further development of the successful OxiTop ® system using software-controlled functions and infrared interface to communicate with a handy controller, the OC 100. This system enables the simultaneous and grouped start, management, storage and tracking of 100 measuring head…
common featuresSimultaneous sample management with option of grouping up to 100 OxiTop ® -C measuring heads.Data call-up of one parallel sample with statistical evaluation and as individual data.Automatic calculation and graphical display of BOD value.Data transfer even through glass doors.Protocol and documentation of data via Achat OC commu-nication program in combination with a PCGLP and AQS with inspection intervals for ca…

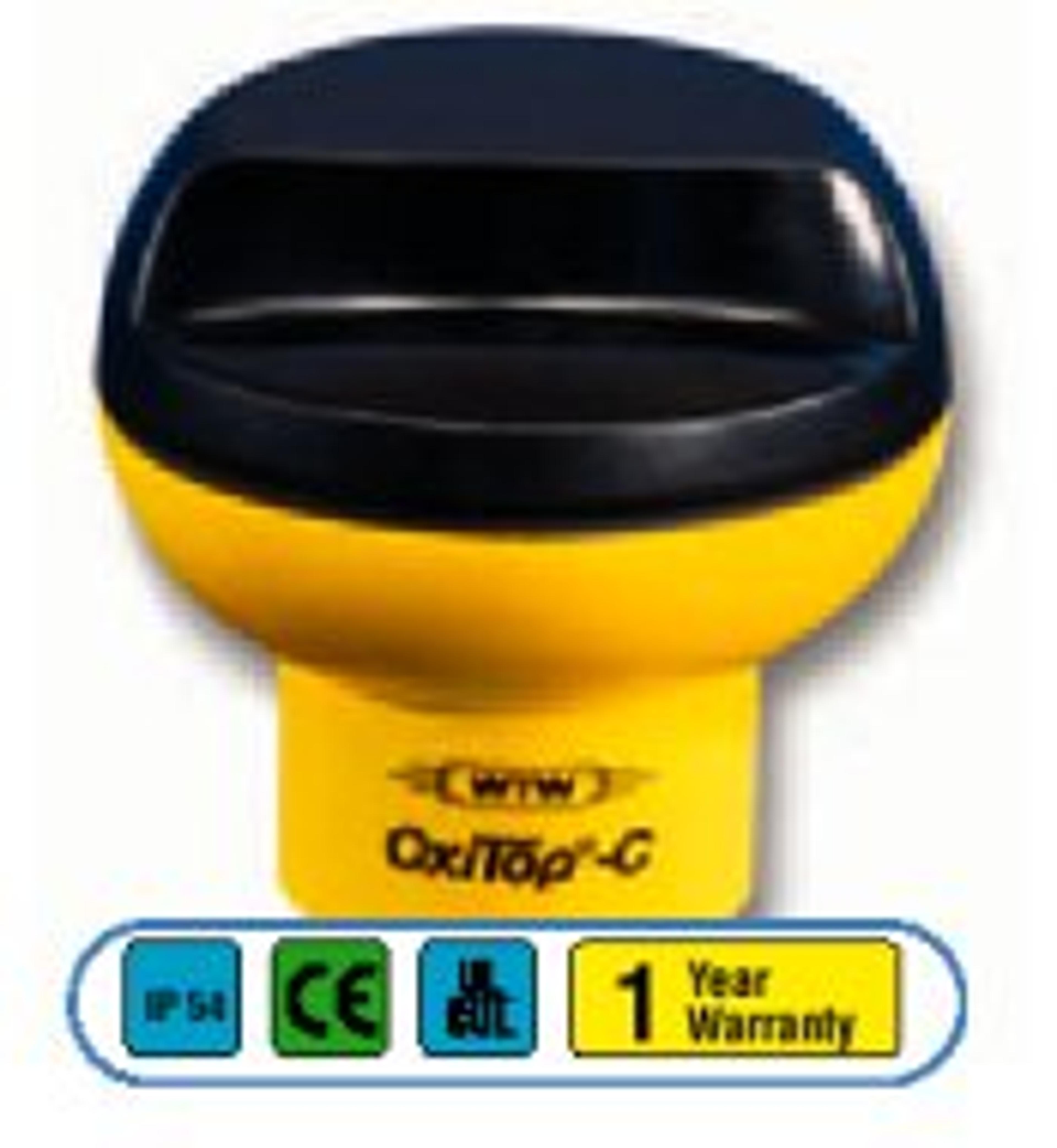

Instead of the display and keys, the OxiTop ® -C measuring head has an infrared interface with which it communicates with Controller OC 100 or OC 110. By "e;pointing"e; the controller at an OxiTop ® -C measuring head it can be identified and started, data can be called up or deleted and sampling progress can be displayed.Each measuring head has its own identification number; this means that manual identification of samples is…

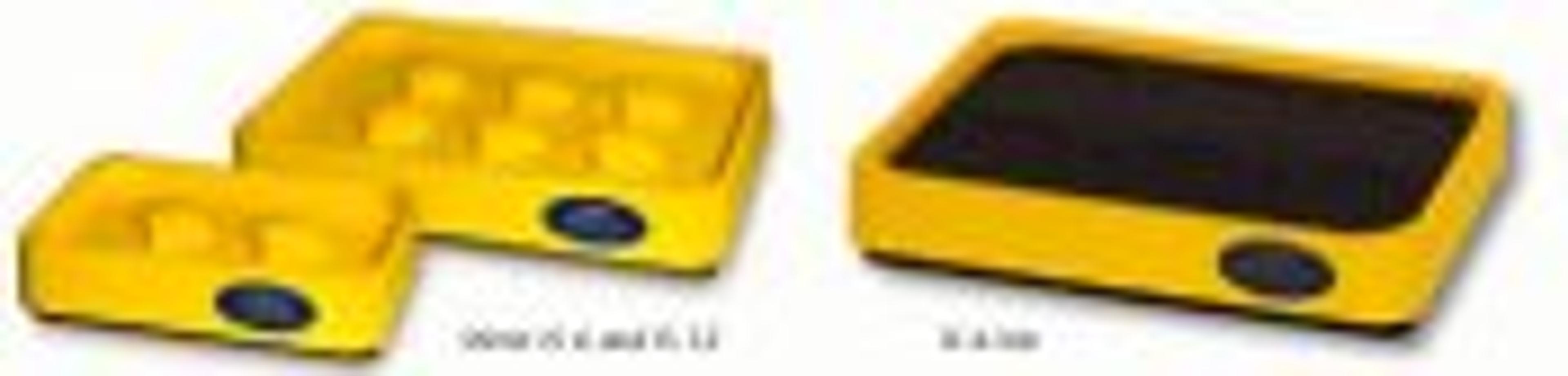

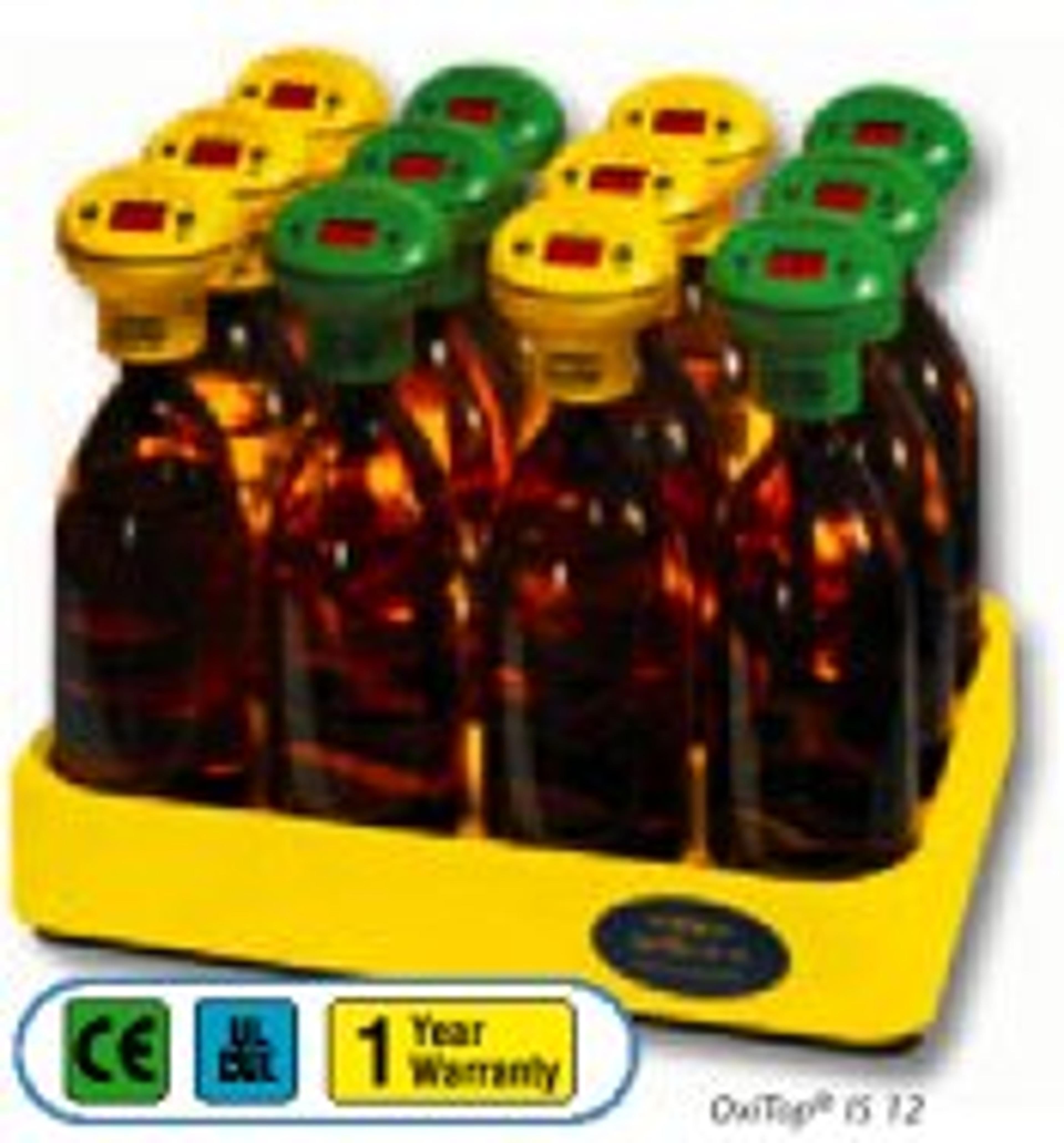

Stirrers IS 6 and IS 12 have been specially developed for BOD measurement with the OxiTop ® system. Software-controlled speed regulation prevents the magnetic stirrer bar from getting caught or wobbling. The speed is selected so that an optimal gas exchange with the sample takes place. The stirrer is maintenance-free and non-wearing as it contains no moving parts. The IS 6-Var model has been specially developed for use wit…

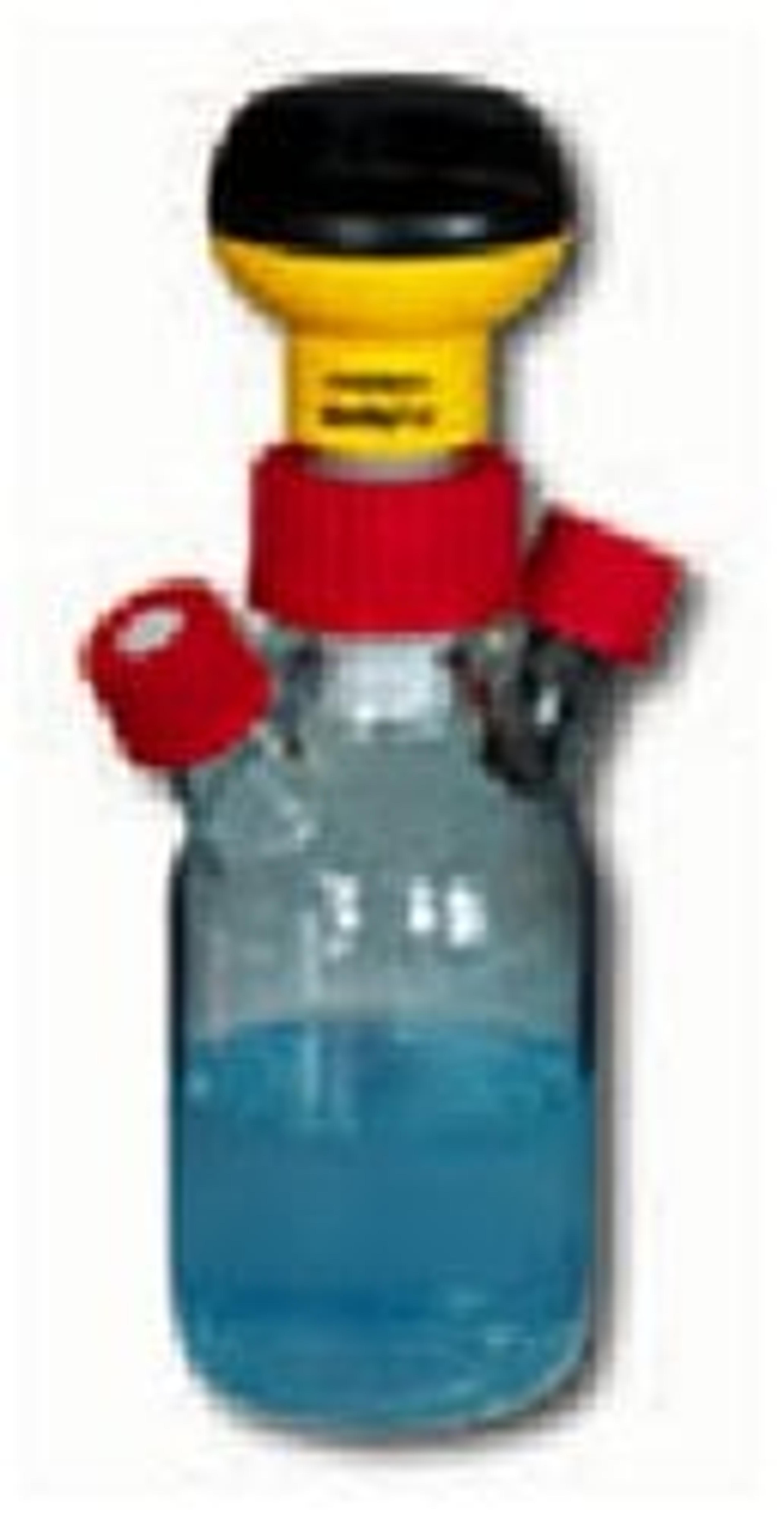

Determination of anaerobic degradation processes: biogas determinationAnaerobic degradation processes take place in the absence of oxygen. In order to be able to fill the gas space above the sample with inert gas the measuring bottle has a septum sealed nozzle. When anaerobic degradation has taken place the dissolved CO 2 can be driven off and then removed from the gas space by means of a CO 2 absorber. The resulting pressure…
Microbiological growth and stress investigations: determination of the respiration rate (aerobic/anaerobic measuring operation)The use of special measuring bottles with a septum sealed nozzle allows the inter-ference-free addition of substrates and solutions. Pressure alterations could indicate a reduction in oxygen concentration, for example, which could make the addition of oxygen or air necessary (possibly other gases as we…
Thermostat box with forced air circulation for 68 °F (tolerance 67.1 - 68.9 °F / 20 ±0.5 °C)OxiTop® Box is a benchtop model with hinged clear-view cover which can accommodate a maximum of either 12 OxiTop ® simultaneous measurements or 20 Karlsruhe bottles.The chamber is equipped with a connection for an IS 6 or IS 12 stirrer.A special compartment is provided for thermostatting 6 methylene blue samples.The box is made of non-c…
The investigation and monitoring of biological cleaning treatment processes are becoming more and more important with respect to the environmental requirements such as wastewater treatment, soil remediation and waste treatment.Biological tests are often in the foreground as well as the usual physicalchemical measuring methods. In order to determine the biodegradability of foodstuffs, pollutants, harmful substances or waste sub…
Soil respiration measurements are used for forecasting, surveyingand checking remediation work, for biodegradability measurements of substances (pesticides, fungicides, fertilizers, etc.) as well as for carrying out toxicity tests.This determination is possible with the OxiTop® Control System and special, practically-tested measuring vessels in a very accurate, simple and favorably-priced way.The expenditure for personnel and…
An accepted, approved protein analyzer based on Dynamic Flash Combustion technology, the FlashEA 1112 N/Protein Analyzer is accurate, low cost tool that speeds up the entire analytical process.Product DetailsThe Finnigan FlashEA 1112 N/protein Analyzer operates according to the "Dynamic Flash Combustion" technique ensuring accurate results in any material requiring nitrogen/protein determination from trace level to high percen…
The autosampler AS 2000 allows direct injection of a precise volume straight into the combustion reactor and automatically process up to 90 samples Product Details For laboratory requiring analysis of a large number of liquid samples, any model of the FlashEA 1112 series can be equipped with the dedicated syringe based liquid autosampler AS 2000, which allows direct injection of a precise volume straight into the combust…
The flexible XVI+ analyzer analyzes low concentrations of Total Sulfur in gaseous and liquid samples. The XVI+ can be configured for direct H2S measurement, straight reductive hydrogenation or oxy-hydro reductive measurement according to ASTM D4045-96, D6213-98, D4084-94,D4468-95,D4323-97,D6212-98 Product DetailsThe Thermo Electron Corporation XVI+ Total Sulfur analyzer combines the interference-free lead acetate tape detectio…
The TS 3000 offers versatile, reliable and repeatable results at ultra low levels in liquid, solid and gas samples.Product DetailsThermo Electron offers an advanced trace sulfur analysis technique, which fully complies the ASTM D5453, IP PM CL/99, NF M0795 standards. The TS 3000 produces accurate and reliable data at ultra-low levels in liquids, solids and gases. The TS 3000 UV encorporates a high-end pulsed UV-fluorescence de…
The TN 3000 offers fast and accurate analysis of liquid, solid and gas samples in a broad range of applications from low to percentage level.Product DetailKnowledge of the levels of Nitrogeneous compounds are crucial for industrial processes in for example Chemical, Petrochemical and food and beverage businesses. Measuring Nitrogen helps to achieve environmental regulatory compliance, processes control, quality control and i…
The Thermo Electron Coulometric System: ECS 1200 offers accurate and automatic analysis of Total Chlorine and Total Sulfur in liquids, solids, and gases down to 50 ppb designed for labs with a low sample throughput. Product DetailThermo Electron designed the ECS 1200 system to meet the stringent compliance rules for Total Chlorine and total Sulfur measurements in High grade chemicals, petroleum products and LPG and gases.The C…
The ECS 1200 is a microcoulometric analyzer designed for the analysis of AOX, EOX and POX samples fast and easy for labs with a low sample throughput. Product DetailsOrganic Halogens pose a threat to the environment and mankind. Most substances, which include organic halogens, are toxic, carcinogenic, persistent and bio-accumulative. For this reason regulatory authorities imposes maximum permissible levels of these compounds i…
Everything you need for your application, in one complete package. Comprehensive, preconfigured lab kits take the guesswork out of ordering. Every component is matched to your general purpose application, with everything required for your particular analysis. No missing pieces and nothing else to order- so right out of the box, you can be up and running. Orion Full Laboratory Kits include: - Orion Star™ Series meter - E…
