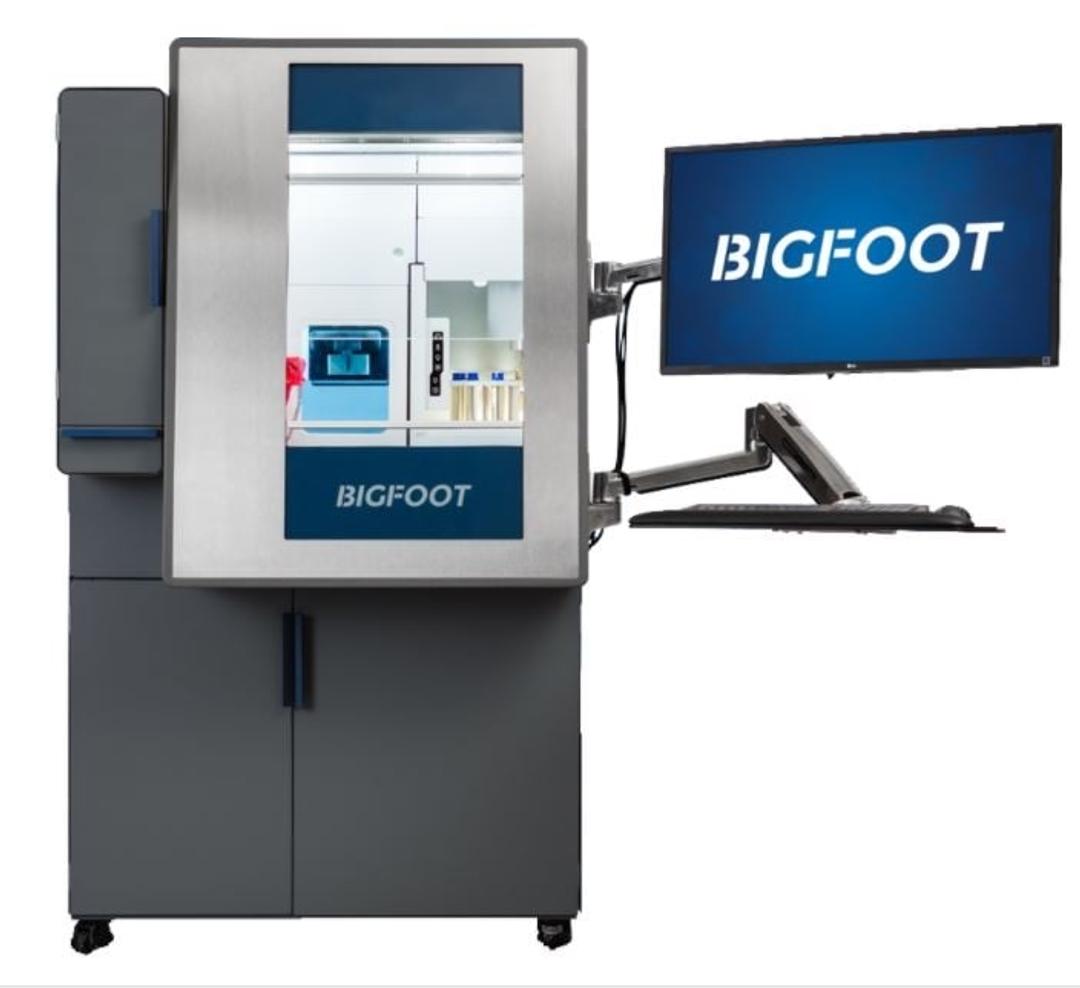

The Bigfoot Spectral Cell Sorter team from Propel Labs is now a part of Thermo Fisher Scientific. The innovative sorter, now part of the Thermo Fisher product family, provides high performance, flexibility, safety, and scalability to meet laboratory needs today and in the future.
Delivers high performance and high throughput for versatility
The Bigfoot Spectral Cell Sorter supports configurations with up to nine lasers (349nm, 405nm, 445nm, 488nm, 532nm, 561nm, 594nm, 640nm, 785nm) and 60 detectors, delivering versatility for both standard fluorescence detection and spectral unmixing. Multiple scatter options enhance flexibility with simultaneous standard and small particle detection, multi-laser scatter detection, and polarization.
With sort rates >70,000 eps and analysis rates of >100,000 eps, the Bigfoot Spectral Cell Sorter is fast and configurable. The sorter is capable of 6-way sorting into tubes, 4-way sorting into 96 well plates, 8-way sorting into 384 well plates or straight down sorting into 1536 well plates. In addition, virtual 18-way sorting allows researchers to separate multiple populations from a single sample or different samples.
A massively parallel, pipelined architecture eliminates hard aborts and allows complex, high color experiments with up to a 60 x 60 compensation matrix or spectral unmixing without limiting instrument performance. Proprietary electronics simultaneously collect high-dynamic range data for measured peak, area, and width for every channel to accurately characterize your sample.
Built-in automation for ease-of-use
Advanced automation and software allow operators with all levels of knowledge to use and control the system with confidence. Integrated control systems ensure optimal droplet formation persistence and position stabilization over time ensuring accurate drop delay maintenance through the day.
To streamline workflow and reduce user errors, automated stream calibration and drop delay simplify sort setup while bubble detection notifies the operator and stops the sort to preserve precious samples. Integrated temperature control (4-37°C) and agitation maintain sample integrity for sample input while temperature control of the output maintains the viability of sorted samples.
Flexibility to support a range of cell types and applications
The Bigfoot Spectral Cell Sorter’s jet-in-air sensing is gentle with fragile cells to maximize viability at high sort speeds, minimizing impact on yield. A swap tip wizard simplifies setup of 50, 70, 100, 120, and 150 μm nozzle tips.
Integrated biosafety cabinet for operator and sample protection
The Bigfoot Spectral Cell Sorter features an integrated Class II biocontainment cabinet, which meets the equivalent functional personnel and product protection standards for a Class II Type A2 biosafety cabinet defined by the National Sanitation Foundation International Standard 49. The custom designed cabinet provides safety and protection without compromising high parameter sorter performance or impacting workflow. A separate aerosol management system meets ISAC guidelines for cell sorters.
Manufacturer Thermo Fisher Scientific | Available Worldwide
Be the first to review this product
