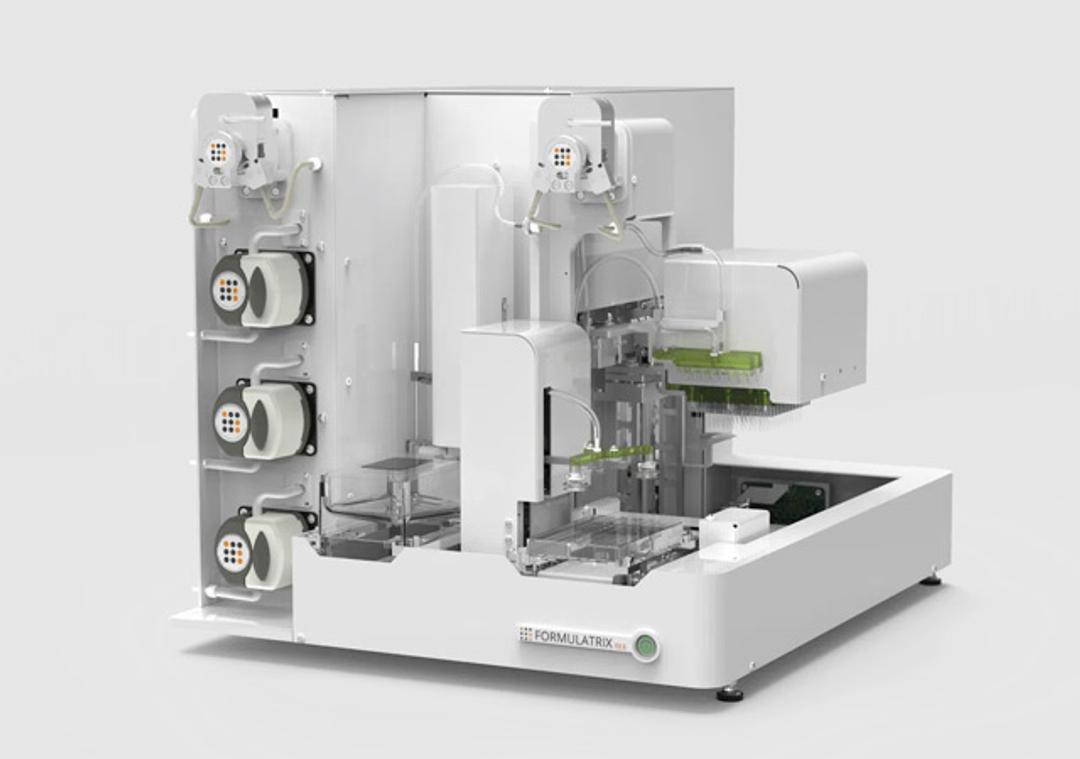

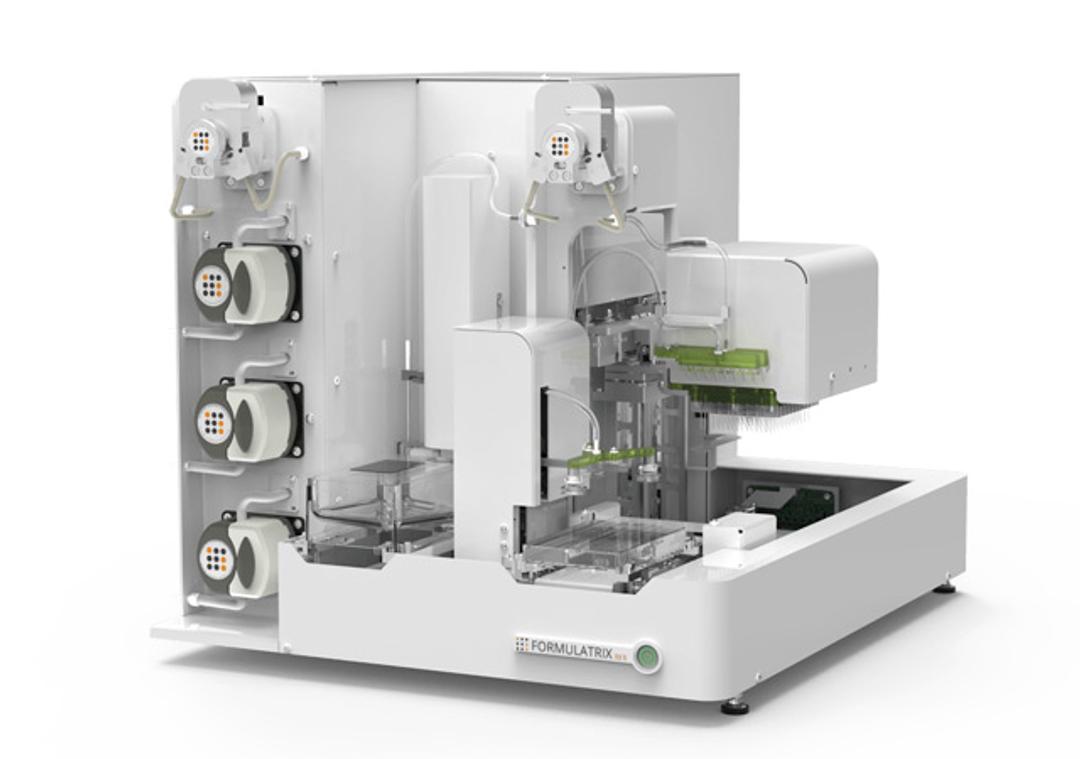

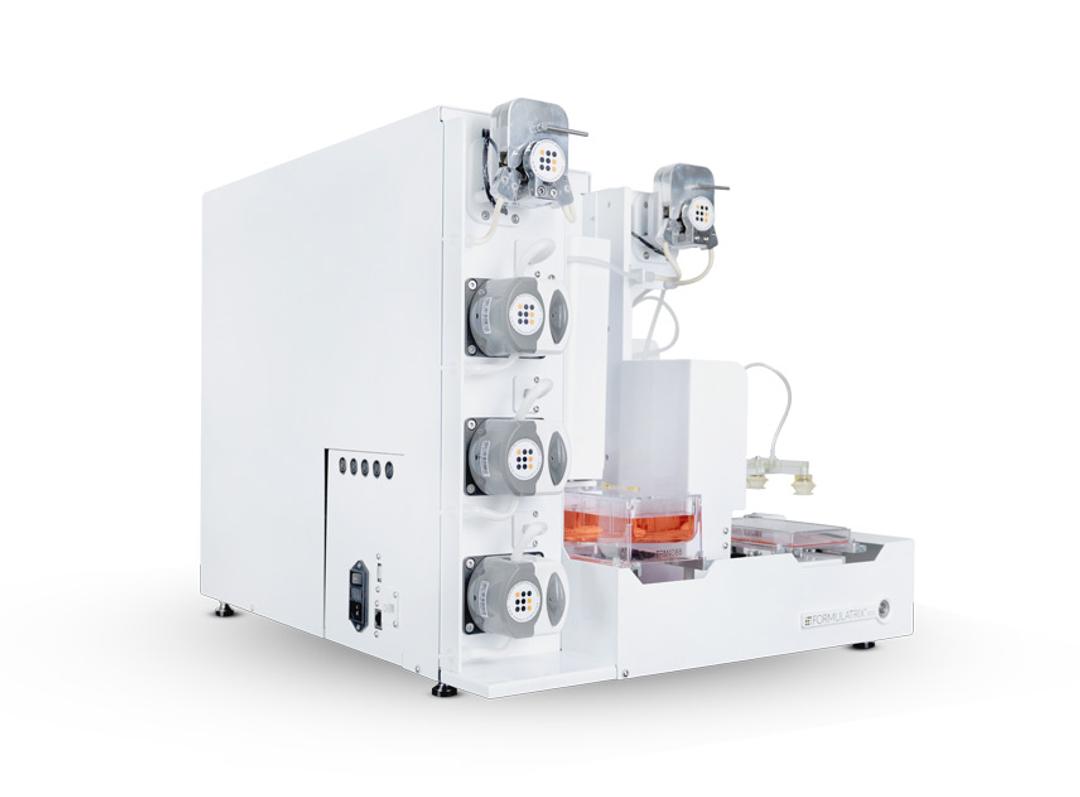

Reagent Exchanger (RX)

The Reagent Exchanger (RX) is a versatile automated plate washer designed to support a wide range of microplate formats and complex laboratory workflows. It features integrated automation for delidding, plate tilting, dispensing, aspiration, and nozzle cleaning—delivering streamlined, unattended operation. The RX easily integrates with automation platforms and supports robotic reagent loading to maximize efficiency and consistency.

Technical Data:
Volume Range: 20 µL – ∞
Self-Cleaning: Up to 3 cleaning liquids
Precision: CV 5% @ 50 µL

Benefits:

• High-Throughput, 96-Channel Aspirator Head: Equipped with 96 nozzles for fast, precise, and uniform aspiration across 96- and 384-well plates, supporting high-throughput workflows with maximum efficiency
• Tilting Plate Stage: Enables liquid pooling to optimize aspiration efficiency
• Non-Contact Side-Wall Dispensing: Minimizes fluid shear, preserving the integrity of loosely adherent cells
• Cell Plating: Cells are consistently dispensed into 96- and 384-well plates by maintaining suspension with a stir bar
• Self-Cleaning System: Integrated wash stations ensure reusable aspirator and dispenser nozzles remain contamination-free
• Interchangeable Troughs: Easily swap reagent reservoirs for flexible, multi-reagent dispensing.Versatile loading options support both automatic and manual loading for seamless operation
• Multiple External Liquid Connections: Supports five external connections, including waste, three wash liquids, and a direct plumbed dispense source for continuous operation
• Integrated Delidder: Compatible with lidded microplates
