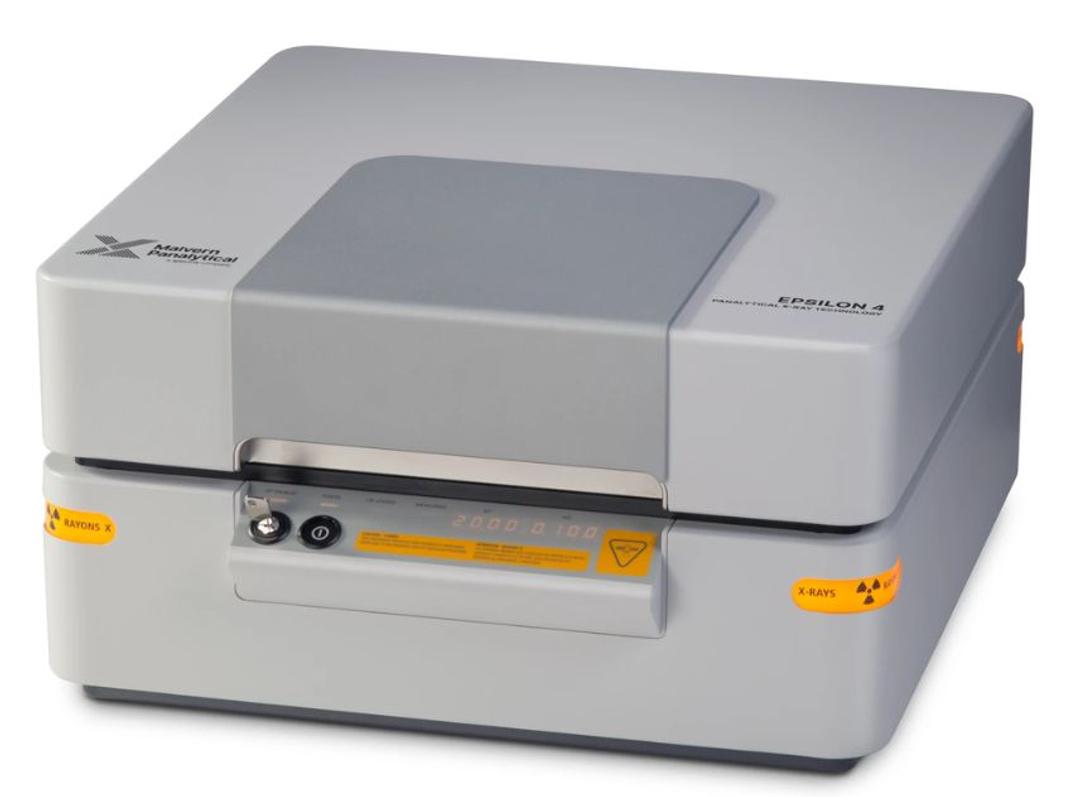

Epsilon 4 Oils & fuels
Compliant, repeatable and accurate elemental analysis of oils and fuels
Receive your quote directly from the manufacturer.
Value beyond compliance
Epsilon 4 offers excellent performance for elemental analysis in different processes in refineries. This new and powerful benchtop XRF instrument is well suited for the analysis of sulfur and other trace elements in fuels according to the latest ASTM, EPA, ISO, IP and JIS test methods.
The power of benchtop XRF
Combining the latest excitation and detection technologies and smart design, the analytical performance of Epsilon 4 approaches that of more powerful and floor-standing spectrometers. Selective excitation and careful matching of the X-ray tube output to the capabilities of the detection system underlie the system’s outstanding performance.
Guaranteed performance
Epsilon 4 complies with international test methods and norms, like TIER 3, ISO 13032, ISO 20847, ISO 8754, ASTM D4294, ASTM D4929, JIS K2541-4, IP 336 and IP 496.
Calibrated for years
A low-drift X-ray tube and an automatic drift correction system give compliant results for years without the need for re-calibration. This results in a more efficient use of the system and less cost of calibration maintenance.
Fast and sensitive
Fast measurements are achieved by using the latest silicon drift detector technology that produces significantly higher intensities.
Unique detector electronics enable a linear count rate capacity to over 1,500,000 cps (at 50% dead time) and a count rate independent resolution typically better than 135 eV for better separation of analytical lines in the spectrum. This allows the Epsilon 4 spectrometer to run at full power and therefore realizes a much higher sample throughput compared to traditional EDXRF benchtop instruments.
Reduce helium consumption
The high performance of Epsilon 4 enables many applications to be operated in air atmosphere, without longer overhead time and costs involved for helium or maintenance of vacuum system. When measuring in air, low-energy X-ray photons characteristic of sodium, magnesium and aluminium, are sensitive to variations in air pressure and temperature. Built-in temperature and air-pressure sensors compensate for these environmental variations, ensuring excellent results whatever the weather.
Analysis of S and CI in Waste Oil Using an Ag-Anode X-ray Tube
Waste oil with high chlorine concentrations is considered to be hazardous and must be treated differently to other waste oils. A common problem with the analysis of chlorine by EDXRF is the line overlap with sulfur, due to the often-high concentrations of sulfur in waste oils. The Epsilon 4 is equipped with a new high-resolution SDD detector, which improves the separation of S Kα, S Kβ and Cl Kα peaks.
Elemental Screening in Three Minutes with Omnian
In this application note, we combine the Omnian module with Epsilon 4 for fast and accurate analyses on a variety of industrial materials such as cement, metals and oils.
7 Key factors to Consider When Buying a New Benchtop X-Ray Diffractometer
When the time comes to replace or buy a new X-ray diffractometer for your lab, there are a number of key factors you should consider to help you select the best possible system for your requirements. This whitepaper presents 7 factors to help you make this decision decision.
