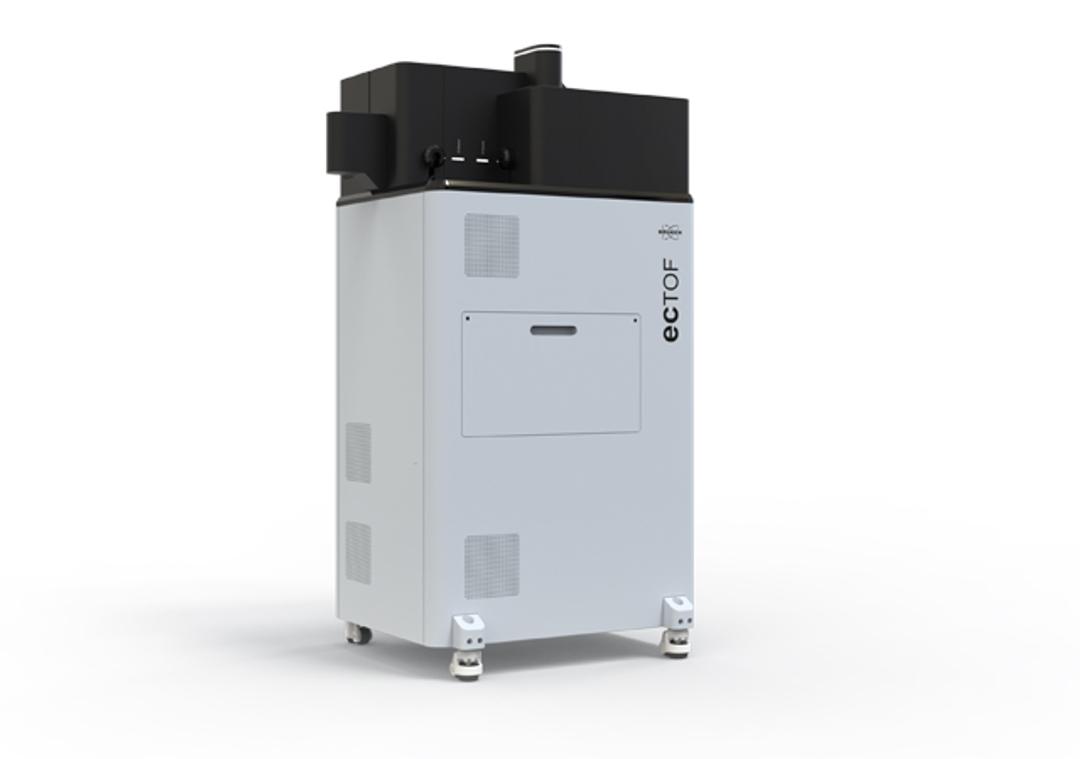

ecTOF

The ecTOF is the world’s first GC-HRMS with simultaneous acquisition of EI (Electron Ionization) and CI (Chemical Ionization) accurate mass spectral information in a single GC injection.

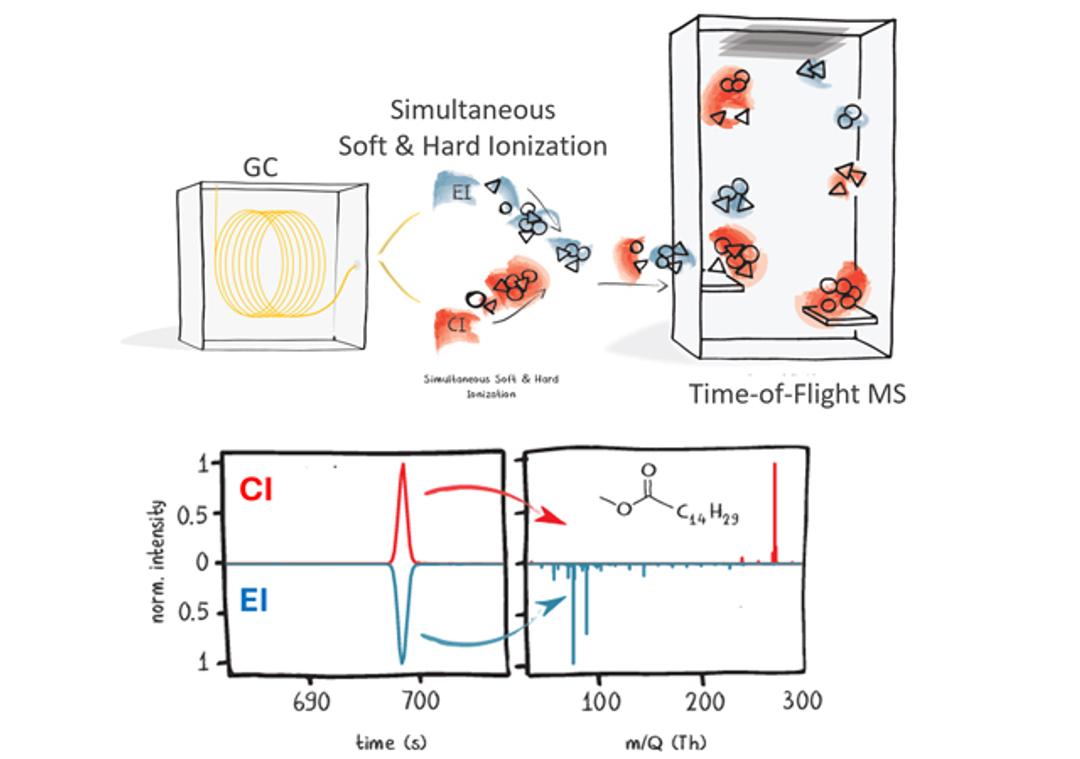

While maintaining EI as the gold-standard GC/MS ionization method especially for structural elucidation, the ecTOF operates simultaneously a novel CI source as a second ionization method. This way it simultaneously provides perfectly aligned accurate mass structural and molecular ion information within a single GC run.

The novel, medium pressure CI source is based on a helical resonator plasma (HRP) and offers optimized control of the analyte ionization processes for high quality molecular information generation. With its improved sensitivity as well as long maintenance cycles the HRP CI source shows high performance and userfriendlyness. Automated switching between four different CI reactants without required hardware changes assures the optimized generation of molecular ions over a broad range of compound classes.

High resolution time-of-flight mass spectrometry (TOFMS) offers full mass spectral information at high resolution, accuracy and speed. The ecTOF is a unique combination of established and novel technology that offers deeper, simplified and more comprehensive coverage within your analysis. It presents the ideal instrumental setup for compound identification based on GC/MS.

• Simplify & enhance high certainty compound identification
• First & only GC-HRMS using simultaneous EI and CI for efficient generation of NIST compatible fragment and molecular ion information
• Novel, high perfromanc & low maintenance medium pressure HRP CI source
• Four CI reactants included via permeation tubes (N2H+, H3O+, H(H2O)n+, NH4+) with automated reactant switching
• Seamless data post-processing of perfectly aligned EI and CI data
