UNICUBE® Micro Elemental Analyzer by Elementar Americas

Manufacturer Elementar Americas  |   Model: UNICUBE®  |  Available in North America
5.0
/
5.0
  |  1 reviews
UNICUBE ® combines the low cost and the sensitivity of a micro elemental analyzer with the flexibility and robustness of a macro analyzer.

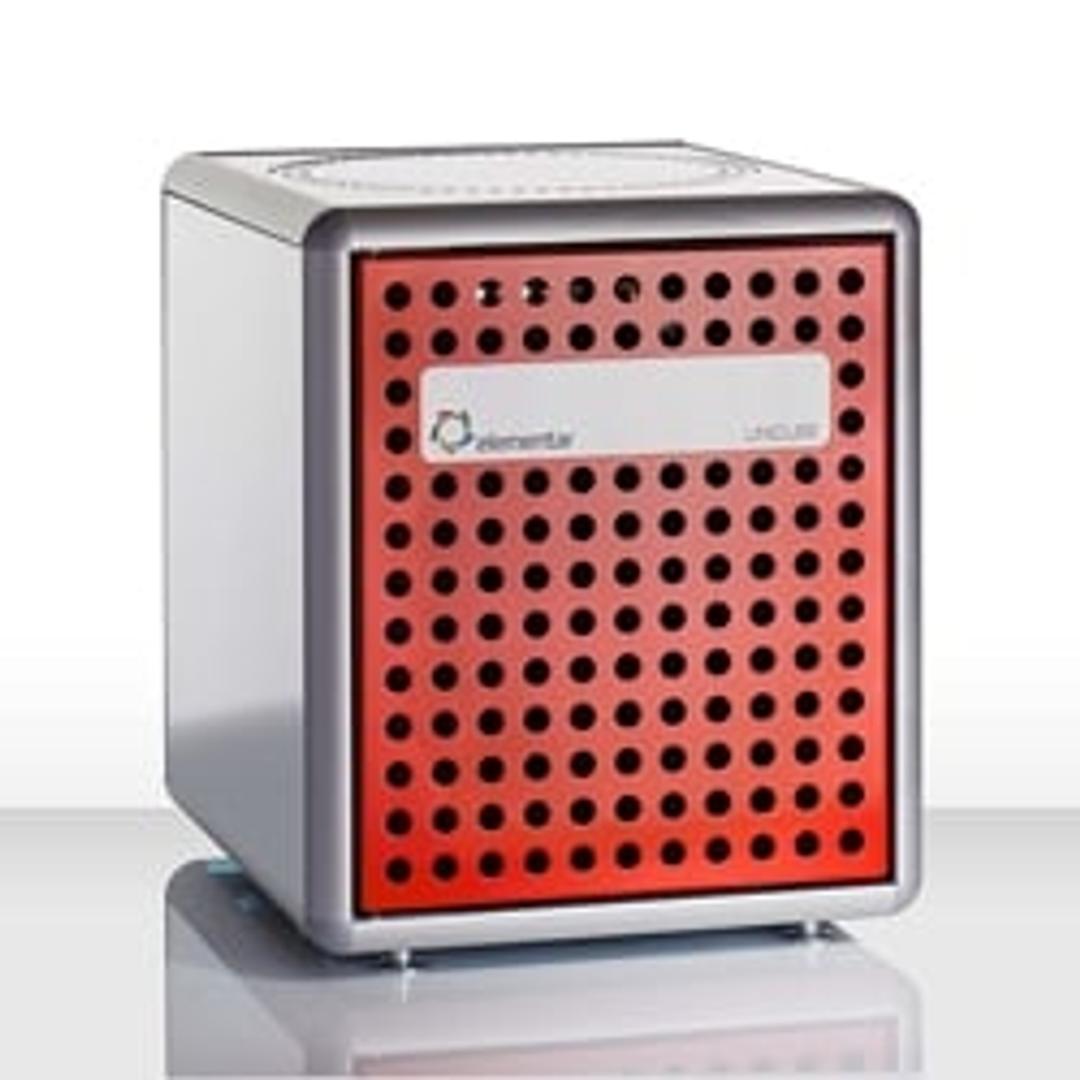

UNICUBE® Micro Elemental Analyzer by Elementar Americas product image
UNICUBE Micro Elemental Analyzer
Request Pricing

Receive your quote directly from the manufacturer.




Average Rating: 5.0
1 Scientist has reviewed this product

5 out of 5
Ease of use
5 out of 5
After sales service
5 out of 5
Value for money


  • Status:

    Reviewer
  • Member since: 2020

  • Organization: US Geological Survey



  • Ease of use
    5 out of 5
    After sales service
    5 out of 5
    Value for money
    5 out of 5
Share this Review on LinkedinShare this Review on TwitterShare this Review on Facebook
Low maintenance, high throughput.
Rating: 5.0

  • Application Area: Analyzing C and N content in soils and plants

"This machine has been the workhorse of our lab.The maintenance is minimal and straightforward. Results have been accurate and highly reproducible. I have had no major issues with this machine despite its frequent use in our lab."

Review date: 07 Jul 2020 | UNICUBE® Micro Elemental Analyzer

Micro combustion analysis has never been easier
Making ‘good’ even better: as a leader in elemental analysis technology, our products benefit from having more than 120 years of experience behind them. Now, we have used our technical knowhow to take our proven micro elemental analyzer, the vario MICRO cube, to the next level - always focusing on the needs of the users.

The result is the new UNICUBE, a cutting-edge tool for the elemental analysis of carbon, hydrogen, nitrogen, and sulfur. UNICUBE combines the low costs and the sensitivity of a micro elemental analyzer with the flexibility and outstanding robustness of a macro analyzer, providing unparalleled flexibility.

One micro elemental analyzer for all tasks
0.1 mg of pharmaceuticals can be analyzed just as precisely as up to 1 g of inhomogenous soil samples, while volatile gasoline or temperature-proof silicon carbide can be analyzed just like coal, foodstuffs or sewage sludge. UNICUBE makes this possible without any restriction of the elements, allowing simultaneous analysis for CHNS - or for the combinations CNS, CHN, CN, O and Cl - in one sample run.

High-performance micro elemental analysis for the sharpest peaks
UNICUBE utilizes Elementar’s proprietary and improved direct TPD (Temperature Programmed Desorption) technology for optimized reliability and performance in gas separation. Working in combination with the most powerful detector on the market, this means the instrument is capable of determining samples with C:N and C:S elemental ratios of up to 12,000:1.

Quiet operation
Thanks to its novel self-regulating air circulation cooling system, UNICUBE is the quietest elemental analyzer in its class. A low noise level - no louder than falling rain - makes working with UNICUBE pleasant to the ear.

Smart design for optimal ease of use
Maintenance can be minimized and uptime maximized thanks to UNICUBE’s clearly arranged and easily accessible system components, as well as its slide-out furnace. The tool-free clamp connection system ensures reliable leak-proof operation at all times, meaning users can enjoy smooth analyses and full confidence in their results.

Quantitative high-temperature decomposition
UNICUBE functions at a permanent temperature near 1,200 °C, reaching 1,800 °C during combustion. In pure oxygen, the contained sulfur is fully converted into SO2 with a 100% recovery, even in the case of BaSO4. Carbon is converted to CO2 and detected by a real non-dispersive IR photometer.

Large dynamic concentration range
UNICUBE’s measuring range is 0-100%, or 20 mg S absolute, with just one IR detector and sensitivity range. The measuring range for carbon is 0-100%, or up to 40 mg absolute. Even concentrations of below 1 ppm or 0.2 µg S can be detected.

Large weighing range
UNICUBE’s range encompasses micro (< 1 mg) and macro (1 g) applications, depending on the sample type.

Direct Temperature Programmed Desorption (direct TPD)
The system's direct TPD technology allows gaseous components to be separated perfectly with an optimized TPD column without peak overlap. Time per analysis is also optimized automatically.

Multipoint calibration
UNICUBE offers reliable stability over months and matrix-independent functionality.

Instrument parameters are PC-controlled via Windows or Linux
The whole instrument is digitally controlled and can also be operated via the internet, with a 21 CFR Part 11 option for data safety. Because the system is fully digitalized, it can be operated remotely.

One high-performance instrument for all applications
UNICUBE operates without expensive special catalysts, with easy ash removal from the combustion tube and an extended lifetime for all components, helping to ensure a low cost of ownership.

Clean, safe, fast
The analysis only takes a few minutes, with no aggressive or toxic chemicals required. Helium is used as a carrier gas, or argon as a possible alternative.

Easy installation requirements
The system takes up a minimal 48 x 55 cm benchtop space, operating with a single power supply (230, 110, 100 V), and two gases sufficient for maintenance-free long-term operation.
