Sine-Wave Vibro Viscometer SV Series by A&D Instruments

Revolutionary range of viscometer featuring the vibrating tuning fork measurement method.  The SV Series provides a fast, highly accurate result and is simple to use.  Ideal for non Newtonian products particularly those with a volatile nature.  Two models are available with 10,000cP and 100,000cP capacity. The SV series measures viscosity by detecting the driving current necessary to resonate two sensor plates at a constant frequency of 30 Hz and amplitude of less than 1mm.
The supplier does not provide quotations for this product through SelectScience. Browse these related products instead

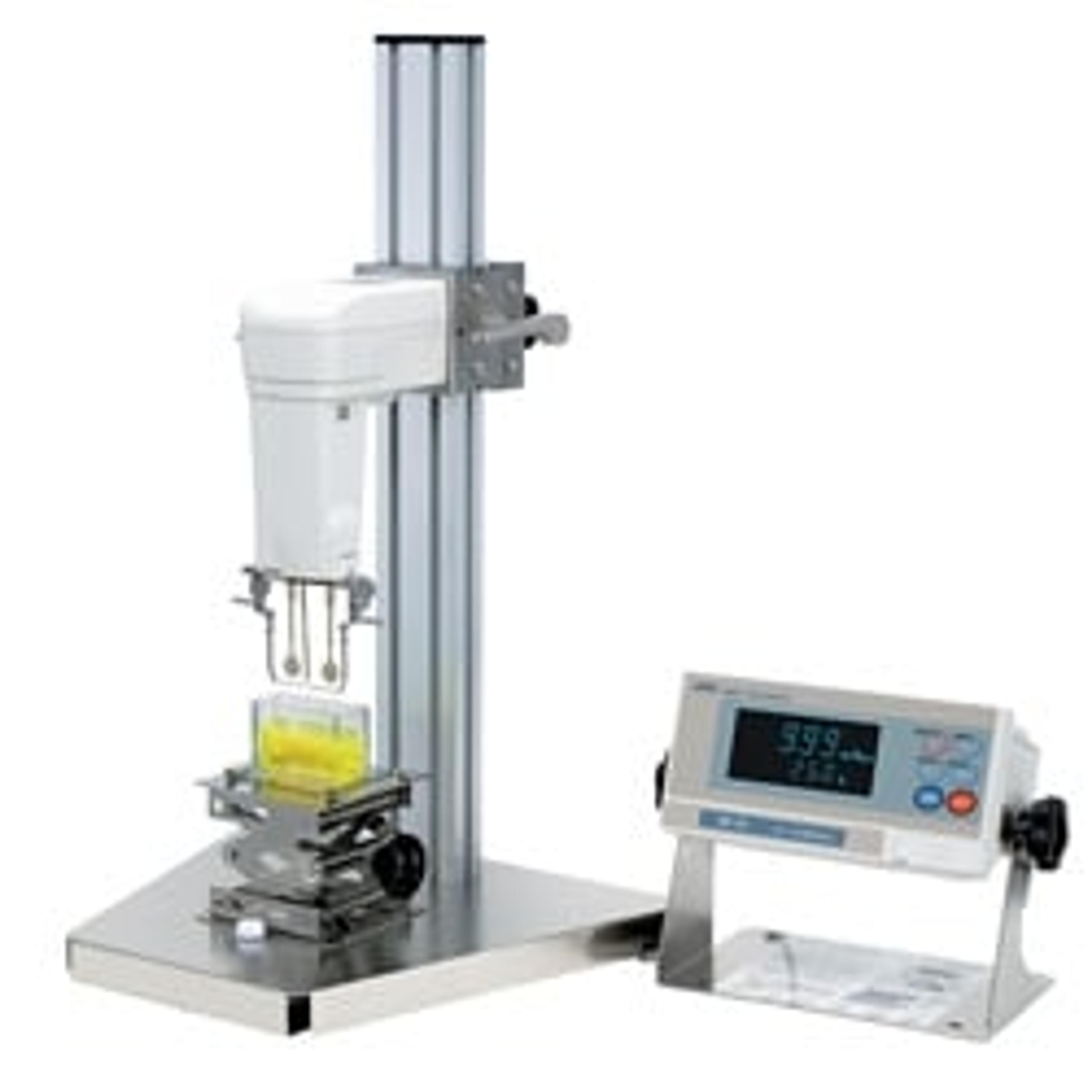

Sine-Wave Vibro Viscometer SV Series by A&D Instruments product image
VS-10/100

The supplier does not provide quotations for this particular product through SelectScience. You can search for similar products in our product directory.



0 Scientists have reviewed this product


Write the First Review

No Reviews

  • Wide measurement range: 0.3 – 10,000mPa.s for SV-10, and 1,000 – 100,000mPa.s for SV-100
  • Measurement of very low viscosities (down to 1/3 of water viscosity!)
  • Temperature measurement from 0 to 160° C
  • Fast measurements: 1st result within 15 seconds, and refresh in real time
  • Possible continuous measurements in order to characterize changes of state
  • High precision with a repeatability of ±1% of displayed value
  • Small size sample: cups of 35ml, 13ml, 10ml, and even tubes of 2ml (with SV-1A)
  • Possibility to do measurements directly into your containers: beakers, product packages…
  • Low mechanical impact: preservation of sample characteristics and its texture
  • Negligible thermal impact
  • Measurements possible on foaming samples, on foam itself, on flowing or agitated samples
  • Simple operation: no configuration – just push the start button

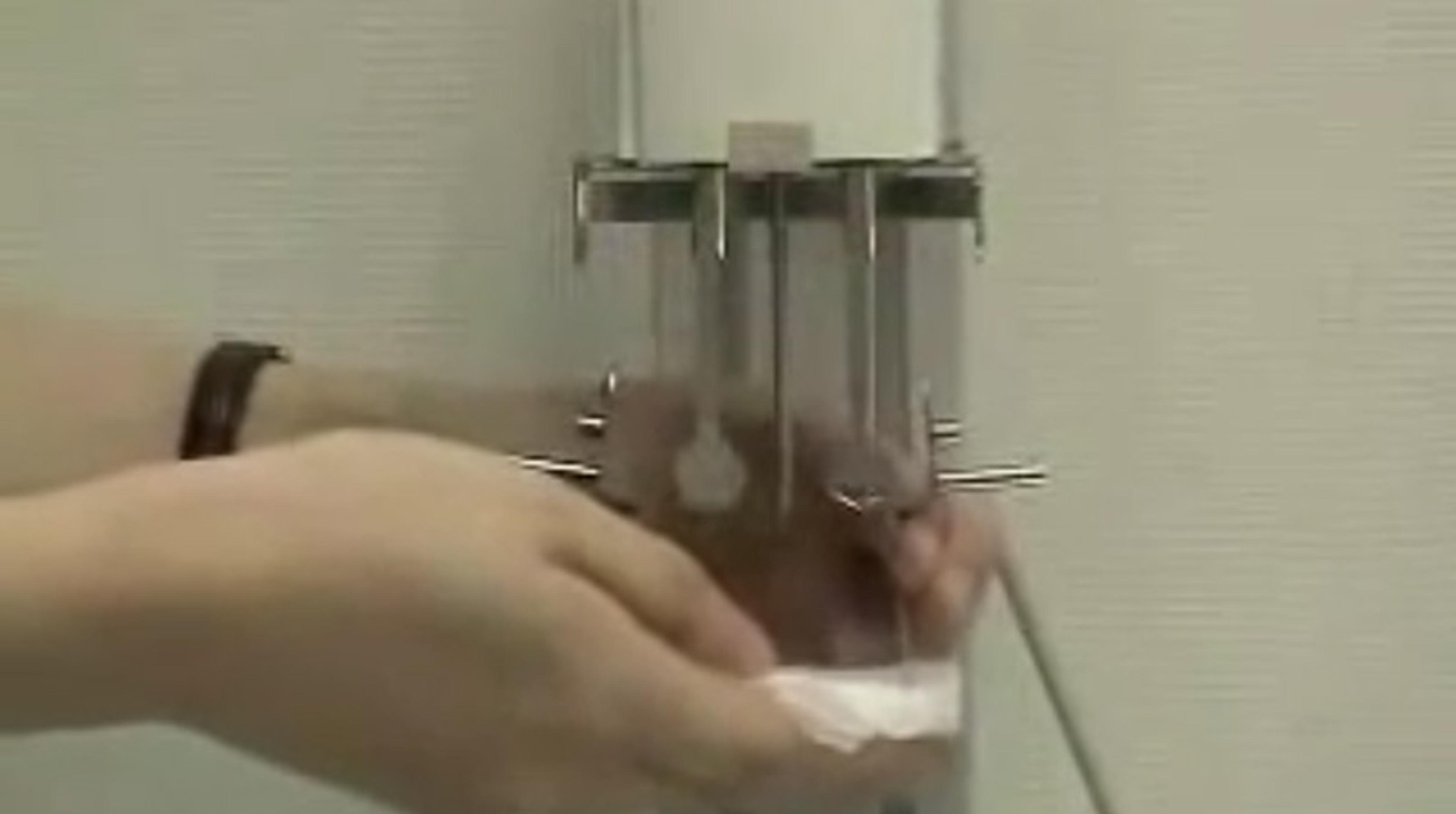

  • Easy cleaning
  • WinCT-Viscosity software for data acquisition on PC, graphic display of curves, and data archiving (viscosity curves against temperature or time)
  • Calibration (judgement and even adjustment) of viscosity possible by the user: 1 or 2 points
  • Simplified and automated calibration (including adjustment) with pure water (SV-10)
  • Temperature control of sample with water jacket option (AX-SV-37) or other methods

Specifications

Model SV-10 SV-100
Measurement Method Tuning Fork Vibration Method (Natural Frequency at 30Hz)
Viscosity Measurement Unit mPa·s, Pa·s, cP, P Pa·s, P
Viscosity Measurement Rang 0.3~10000mPa·s 1~100Pa·s
Repeatability 1% of Reading (S.D., 20~30°C, No condensation)
Minimum Sample Amount 10ml~ (with Optional Small Sample Cup)
Temperature Measurement 0~160°C / 0.1°C(32~320°F/0.1°F)
Display Vacuum Fluorescent Display (VFD)
Power Supply AC Adaptor (Approx. 14VA)
External Dimensions / Mass Main Unit (with Stand): 332 (W)×314 (D)×536(H) mm / Approx. 5.0 kg
Display Unit: 238 (W)×132 (D)×170(H) mm / Approx. 1.3 kg
Standard Accessories Sample Cup (45 ml, Polycarbonate × 4 pcs), CD-ROM (WinCT-Viscosity),
AC Adaptor, Connection Cable (1.5m), RS-232C Cable (25P-9P)



Product Models Information


Sine-Wave Vibro Viscometer SV Series by A&D Instruments product thumbnail

Sine-Wave Vibro Viscometer SV Series 0.3 - 1,000 mPa·s

SV-1A




Sine-Wave Vibro Viscometer SV Series by A&D Instruments product thumbnail

Sine-Wave Vibro Viscometer SV Series 0.3 - 10,000 mPa·s

SV-10




Sine-Wave Vibro Viscometer SV Series by A&D Instruments product thumbnail

Sine-Wave Vibro Viscometer SV Series 1 - 100 Pa·s

SV-100



Product Overview

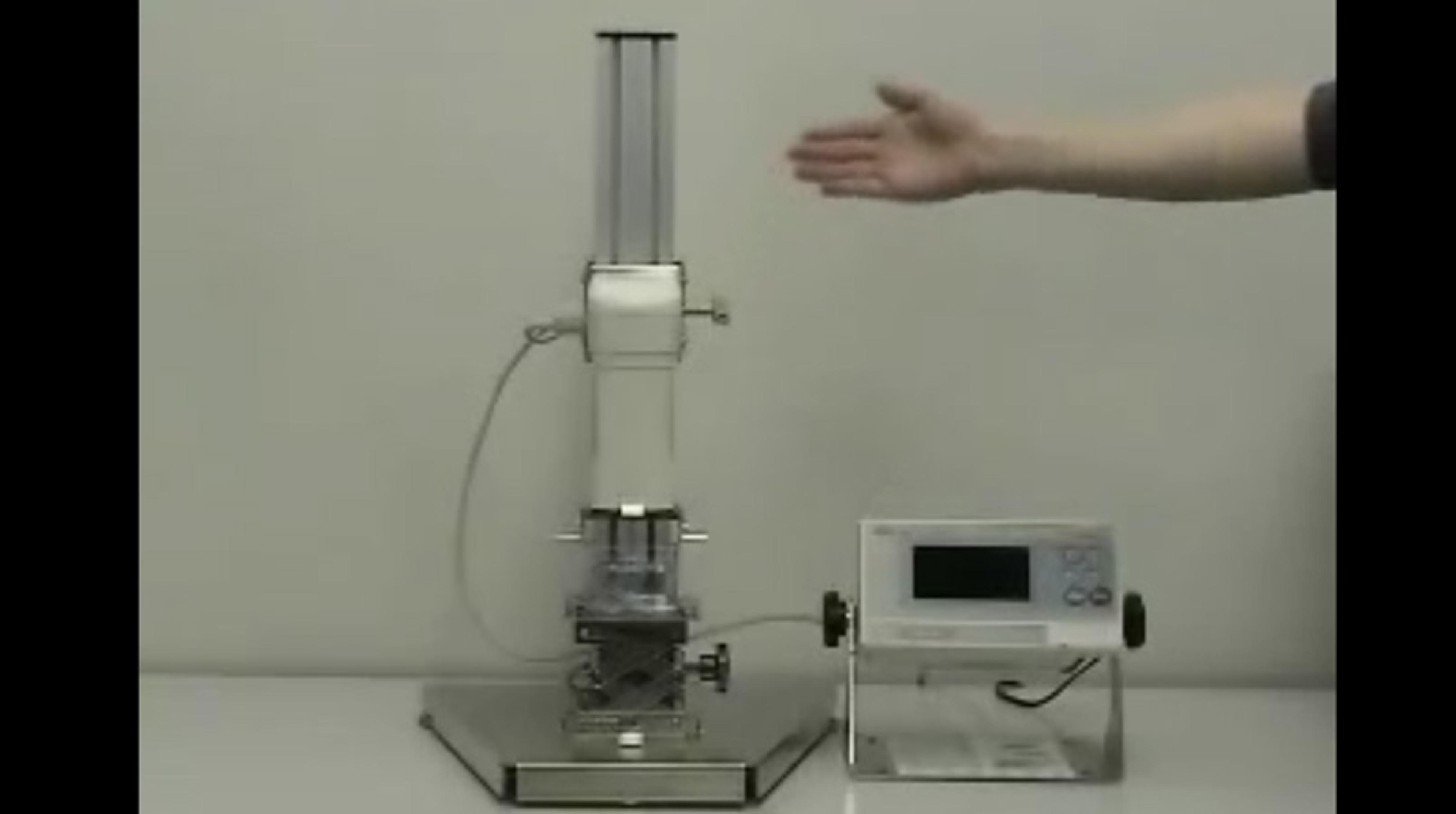

Sine-Wave Vibro Viscometer SV Series by A&D Instruments product image

Sine-Wave Vibro Viscometer SV Series

Manufacturer A&D Instruments
