RST-CC Touch™ Rheometer by AMETEK Brookfield

Manufacturer AMETEK Brookfield
Coaxial Cylinder DIN Geometries for single point QC or full rheological profiling


RST-CC Touch™ Rheometer by AMETEK Brookfield product image
RST-CC Touch™ Rheometer

The supplier does not provide quotations for this particular product through SelectScience. You can search for similar products in our product directory.



0 Scientists have reviewed this product


Write the First Review

No Reviews

The RST-CC Touch Rheometer coaxial cylinder DIN Geometries for single point QC or full rheological profiling.

The RST-CC is the quickest and most comprehensive capability for making rheological measurements, whether it’s single point viscosity for QC or complete flow curve analysis for R&D.

The RST-CC Rheometer is unique because it operates in both controlled shear stress and controlled shear rate modes and can perform the following tests: viscoelastic modulus, yield stress, viscosity vs. shear rate profile, thixotropy calculation, creep behavior, recovery after flow, and temperature sensitivity. This unit offers the widest torque range available to handle the broadest range of sample materials (500 to 1 million dyne.cm).

This unit provides exceptional versatility with the largest range of shear rates and Din spindle geometries. The sturdy, rugged design of the RST is ideal for use in R&D, working in the QC lab or on the production floor. The RST-CC model comes with the standard option for 21 CFR compliance, including controlled user access and data integrity/security.


RST-CC Touch™ Rheometer Features & Benefits:

  • Controlled stress/rate operation to analyze comprehensive flow behavior
  • Spindle barcode for auto spindle recognition
  • Quick and easy automatic or manual gap setting
  • Rapid temperature control of plate with Peltier option for quick profiling of viscosity vs. temperature
  • User-friendly LCD touch screen with graphical display
  • 11 memory slots for structured multi-step test programs
  • Auto spindle identity recognition
  • Quick connect coupling for easy spindle attachment

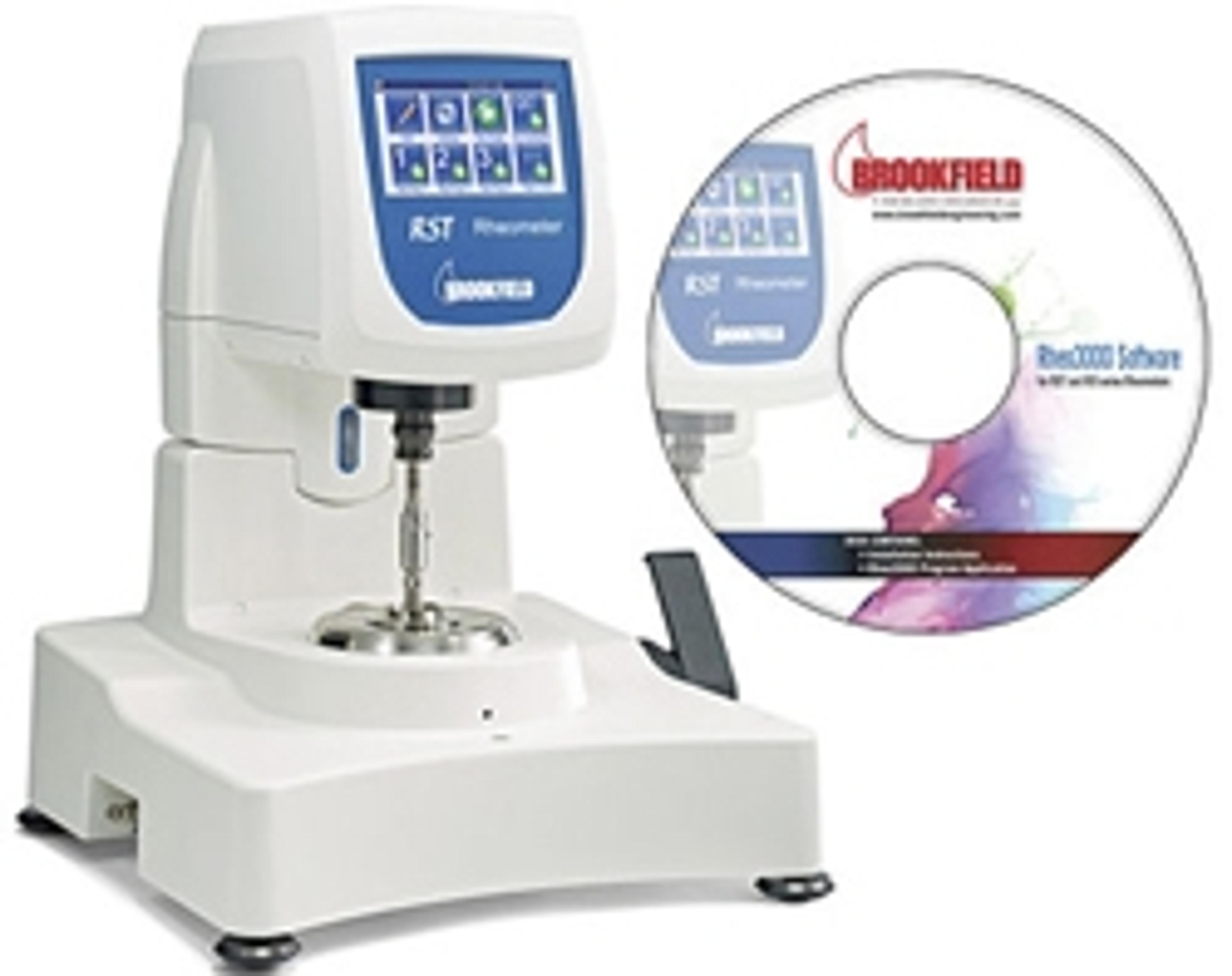

  • Optional Rheo 3000 Software for PC control and data management
  • 21 CFR compliance for controlled user access and data security
