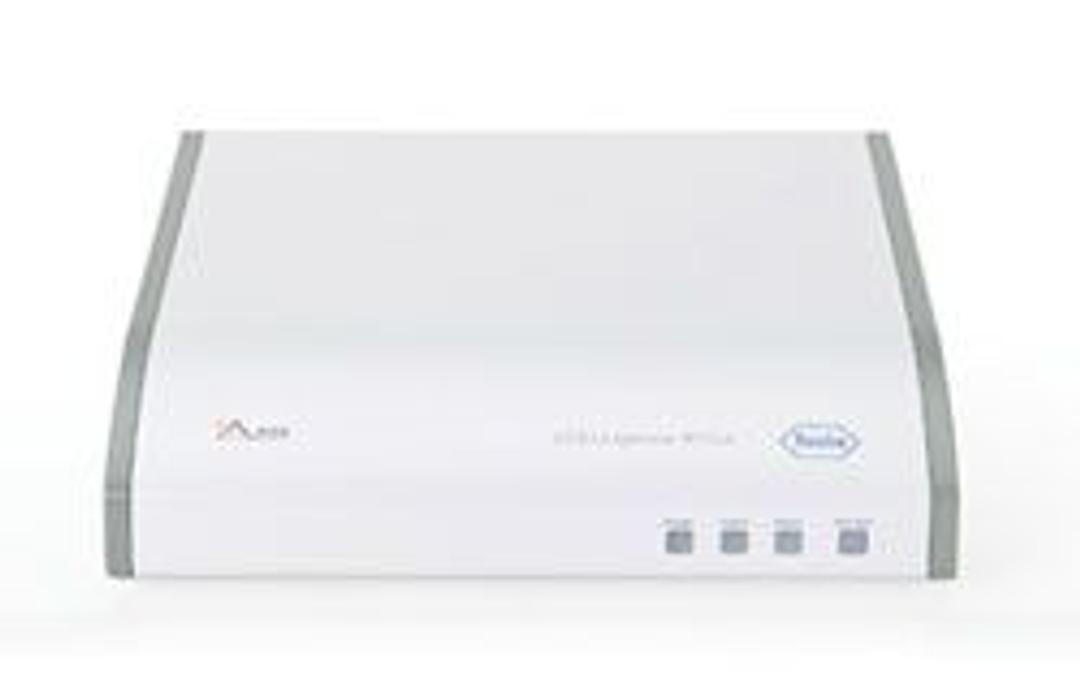

RTCA Analyzer

The RTCA Analyzer is an electronic analyzer that can, under the control of RTCA Software, measure electronic impedance of sensor electrodes at various signal frequencies. The RTCA Analyzer is capable of computer-controlled signal generation, processing and analysis, automatic frequency scanning and rapid measurement. The average measurement rate is approximately 15 seconds for a 96-well plate, or approximately 150 milliseconds…

Ease of Use
After Sales Service
Value for Money
Be the first to leave a review

The RTCA Analyzer is an electronic analyzer that can, under the control of RTCA Software, measure electronic impedance of sensor electrodes at various signal frequencies. The RTCA Analyzer is capable of computer-controlled signal generation, processing and analysis, automatic frequency scanning and rapid measurement. The average measurement rate is approximately 15 seconds for a 96-well plate, or approximately 150 milliseconds for each well.

Product Specifications

• Electrical Input: 100 - 240 V AC, 50 - 60 Hz; 25 W max
• Output test signal: 22 mV rms ± 20% with max. 5 mV DC offset at 10, 25, and 50 kHz
• Impedance Measurement Accuracy: ± (1.5% + 1 Ω)
• Impedance Measurement Repeatability: 0.8%
• Impedance Dynamic Range: 10 Ω to 5 kΩ
• Communication: RS232 Serial communications at a baud rate of 57600 bits/sec
• Environment: Temperature, +15°C to +32°C; relative humidity, 80% max up to +32°C, no condensation
• Dimensions: W 40.0 cm x D 40.0 cm x H 9.0 cm, weight 7.4 kg
