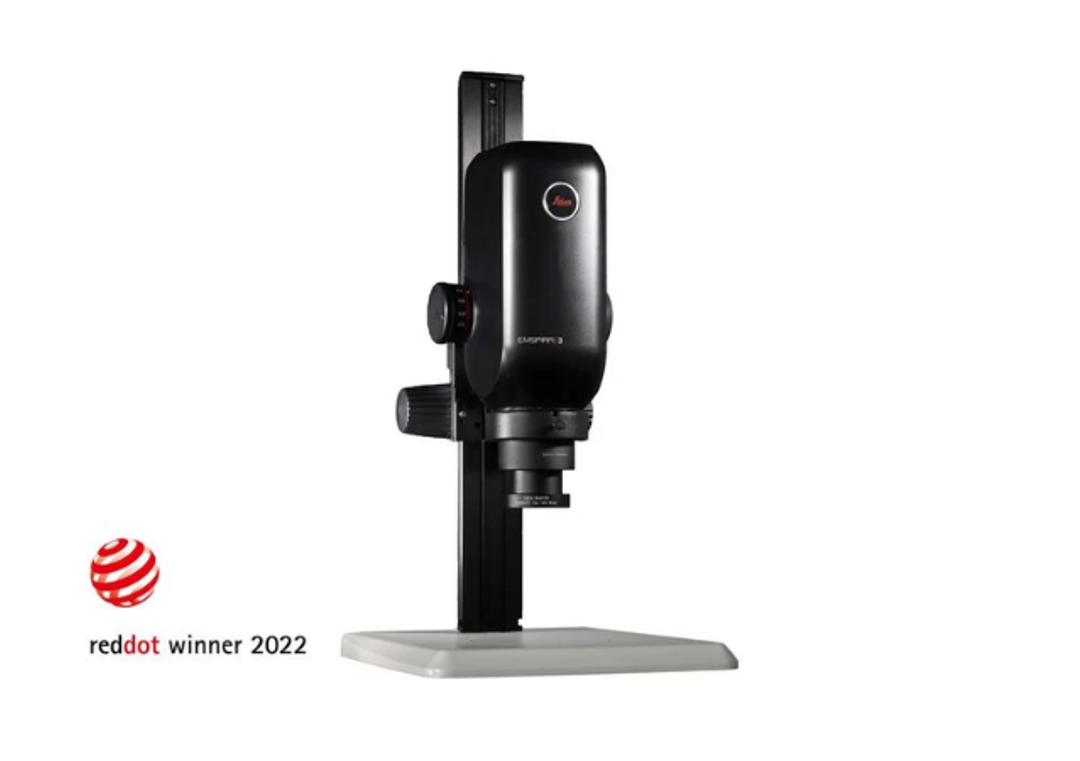

Emspira 3 Digital Microscope for Inspection

With advanced digital capabilities and high-quality imaging, this microscope transforms the inspection process, providing detailed and clear visualizations. Its user-friendly design and versatility make it an ideal choice for professionals seeking efficiency and accuracy in inspection applications. Elevate your inspection workflow with the Emspira 3, a digital microscope designed to meet the demands of meticulous inspection tasks with exceptional clarity and ease.

• Your integrated solution for comparison, measurement, and data sharing, allowing you to optimize inspection efficiency and ditch the PC
• Work the way you want. Adapt the solution to your requirements and the needs of individual users
• Focus confidently and reliably on your inspection work both in production and laboratory environments thanks to the robust design of Emspira 3

Specifications:

• 4k 60fps live image via HDMI
• Antimicrobial PC/ABS housing with AgTreat™
• 8:1 zoom ratio with 26x- 206x magnification range (1x Planapo objective, optional 28"-monitor) & parfocal optics – from overview to detail
• Possible magnification range 8.2x to 1027x (depending on objective with 28" monitor)
• Coded zoom with click stop option for reproducible workflows
• JPG/TIFF/BMP images with up to 12 MP
• Full HD MJPG Video recording with 30 fps
• USB 3.1 type C connection
• Control via Enersight Mobile (iOS/Android) or via Enersight OSD
• Including: USB C to A cable
• HP E27k G5 27" UHD

Features:

• Stand alone operation
• Control via mouse, keyboard, foot/hand switch and/or touchscreen
• Integrated measurement, annotation and sharing functionality
• Create overlays and reference images for comparison
• Capture directly to USB stick or network folder
• Send images via E-Mail
• Customizable UI for simplified workflows
