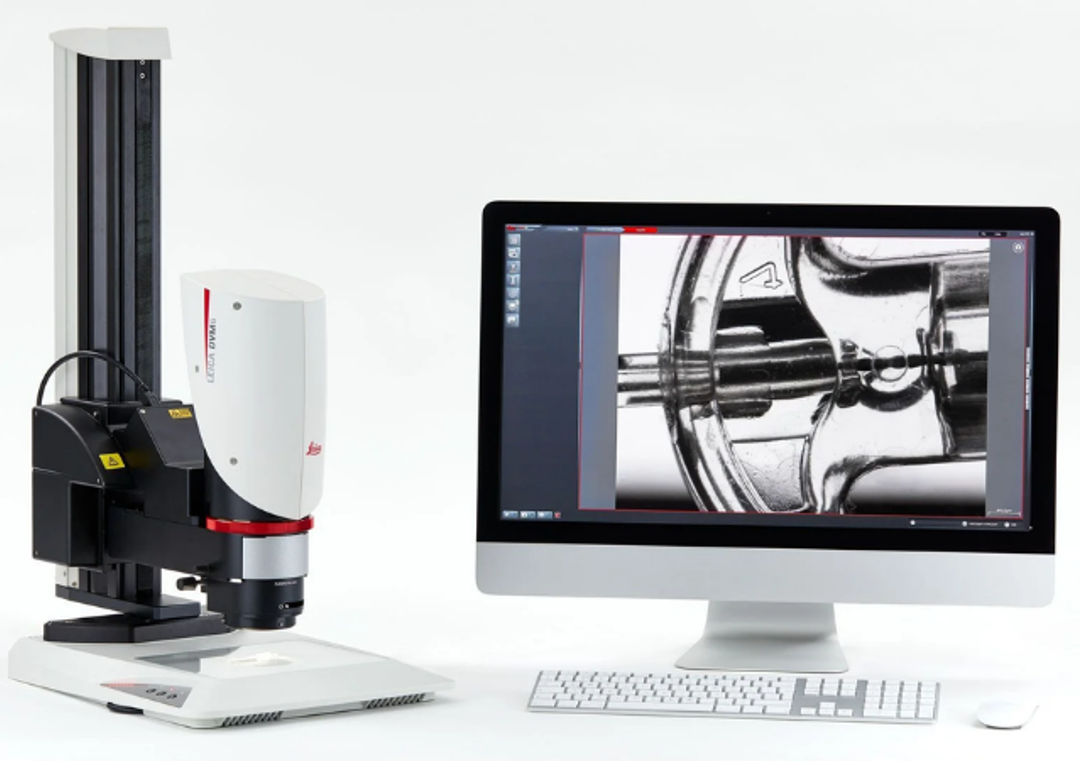

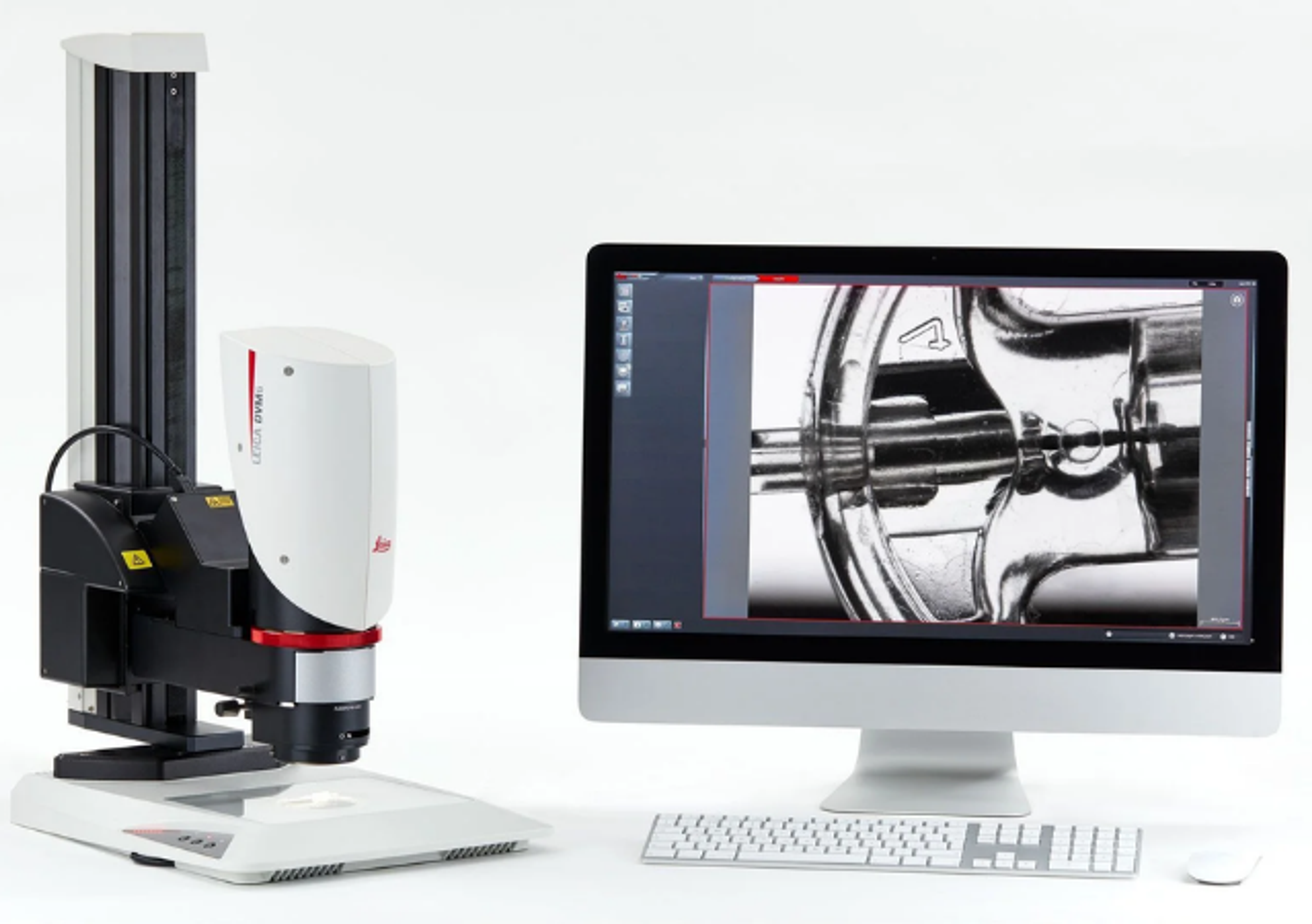

DVM6 M Routine Digital Microscope with Extra Tall Column Suitable for Large Parts
The DVM6 digital microscope redefines versatility with its extra tall column, perfectly suited for inspecting large parts.
Receive your quote directly from the manufacturer.
Designed to meet the demands of industrial applications, this microscope offers unparalleled flexibility in observing oversized specimens with ease. With high-resolution imaging and intuitive controls, the DVM6 provides precise and detailed visualizations, ensuring accuracy in inspections of all sizes. Elevate your microscopy experience with the DVM6, where the extra tall column opens up new possibilities for examining large parts with exceptional clarity and convenience.
- One single system to accommodate various sample types and sizes to 2 kg and travel range of 60 mm
- With a special interface adapter, the DVM6 M zoom module can be used with selected stands from the Leica M series. This setup allows you to examine larger and higher samples
Software features for recurring tasks assure same data quality from user to user
Reports with comprehensive analysis and measurements for 2D or 3D surfaces
LAS X updates or additional software modules keep your system up-to-date.
Specifications:
- The modular DVM6 zoom head offers configuration flexibility.
- Large zoom range with 16:1 zoom ratio to cover object fields from 43.75mm down to 225µm with only 2 DVM6 objectives (12x to 4740x magnification).
- See details down to 425nm (resolution up to 2350 lp/mm) with fully apochromatic corrected optics.
- Integrated 10MPixel camera with fast live image (37 frames per second @ 1600x1200 Pixel).
- Integrated, software controlled illumination options.
- FlexAperture automated iris control for best resolution or maximum depth-of-field images.
- Includes the core version of LAS X software.
