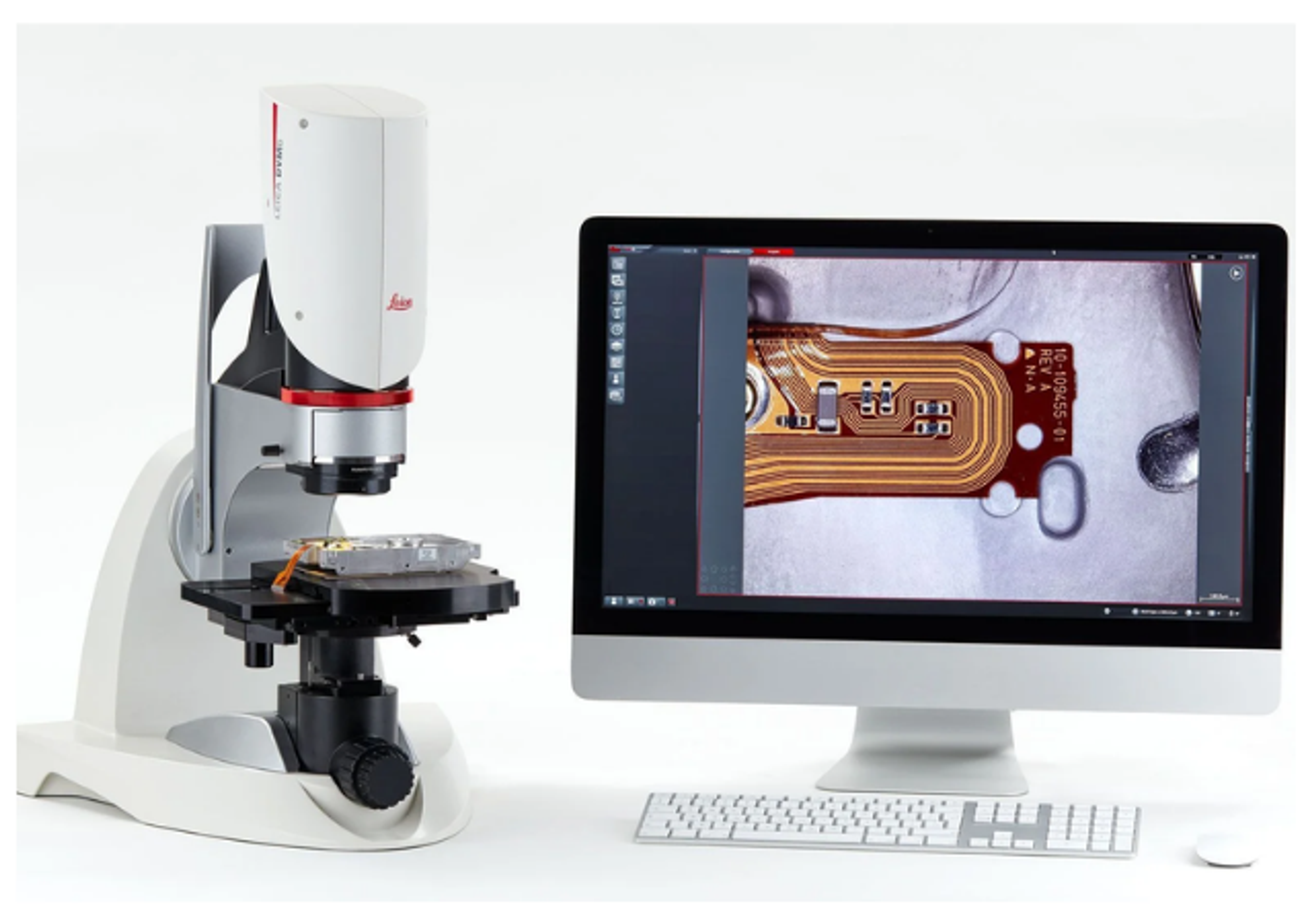

DVM6 A Advanced Digital Microscope with Tilting Optics

This cutting-edge technology allows users to effortlessly adjust the angle of the optics, providing unparalleled flexibility and versatility in observation. With high-resolution imaging and intuitive controls, the DVM6 offers precise and detailed visualizations in various applications. Elevate your microscopy experience with the DVM6, where tilting optics redefine flexibility and precision in digital microscopy.

• Motorized precision xy-stage with manual coarse positioning
• Motorized focus for automatic 3D imagestacking (can also be focused manually)

Software package including image capture and management, 2D measurements and annotations, images with high depth of field, autofocus function, multi-focus images with 3D view and measurement, and automatic xy panoramas in 2D and 3D

Specifications:

• Large zoom range with 16:1 zoom ratio to cover object fields from 43.75mm down to 225µm with only 2 DVM6 objectives (12x to 4740x magnification).
• See details down to 425nm (resolution up to 2350 lp/mm) with fully apochromatic corrected optics.
• Integrated 10MPixel camera with fast live image (37 frames per second @ 1600x1200 Pixel).
• Integrated, software controlled illumination options.
• FlexAperture automated iris control for best resolution or maximum depth-of-field images.
• Motorized XY-stage with 70mm x 50mm travel range. The stage can be manually positioned and rotated for coarse alignment.
• Motorized precision focus drive with additional manual coarse & fine control.
• Tilting stand with one-handed operation to be adjusted to any angle from -60° to +60°, tilt angle displayed on screen.
• Dual-mode Autofocus function for precise focussing and focus tracking.
• LAS X software modules included to measure, annotate and create reports in Excel.
• LAS X software modules included to create multifocus images and automated XY-stitching. The results can be viewed and analysed in 3D.
