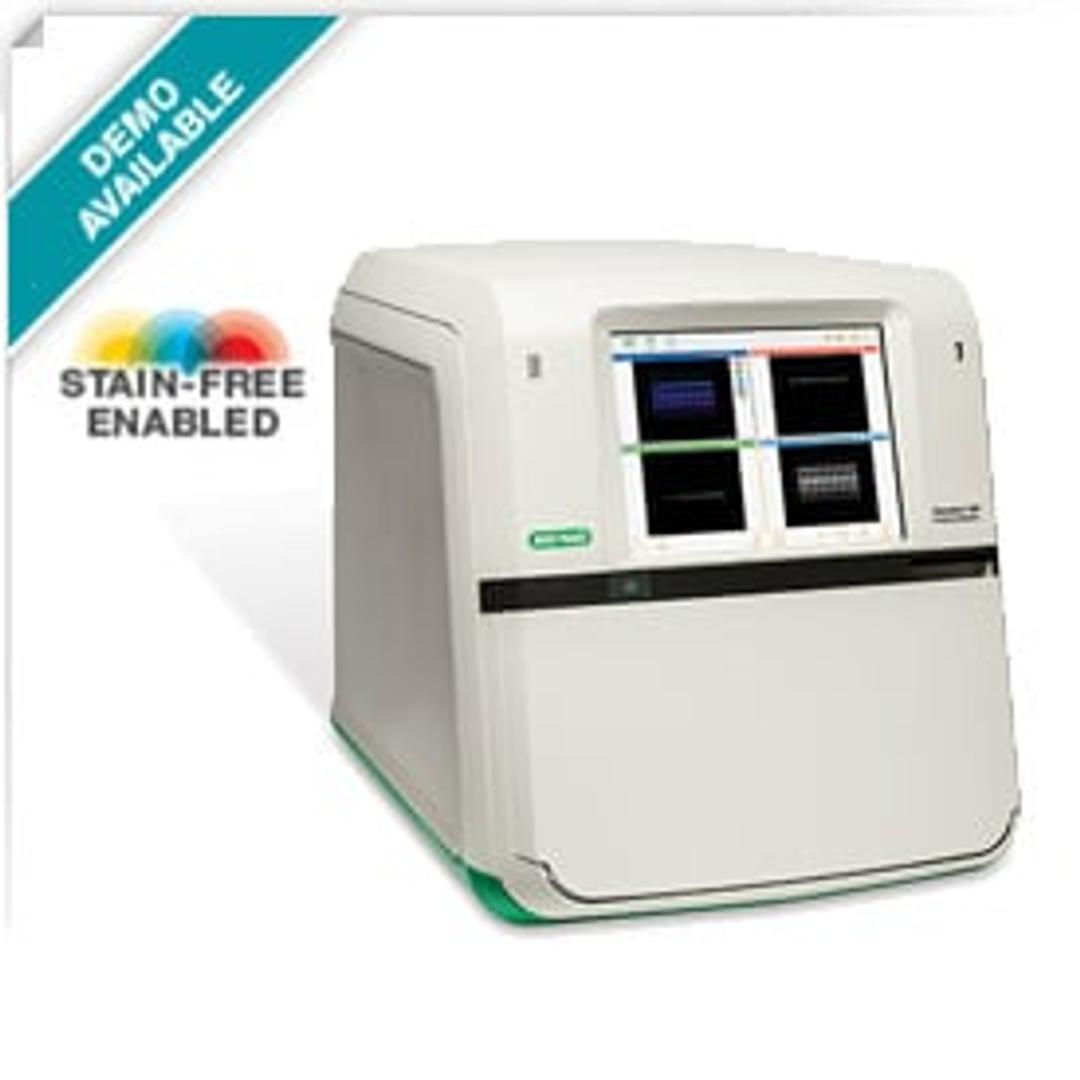

ChemiDoc™ MP Imaging System


The ChemiDoc MP Imaging System is a full-feature, best-in-class instrument for imaging and quantifying nucleic acid and protein in gels and western blots. It is capable of imaging fluorescent western blots (RGB, far-red, near-IR), chemiluminescent western blots, all common nucleic acid and protein gel stains, plus stain-free gels. Includes internal computer, 12

Request Pricing

Receive your quote directly from the manufacturer.

Average Rating 5.0

|1Scientists have reviewed this product

Ease of Use
After Sales Service
Value for Money
Write your own review

Great equipment, makes your experiment convenient.


Average Rating 5.0

Application Area:

Analyze protein level

The ChemiDoc MP Imaging System is a full-feature instrument for imaging and analyzing gels and Western blots. It is designed to address multiplex fluorescent Western blotting, chemiluminescence detection, general gel documentation applications, and stain-free technology imaging needs. Convenient to use, can incubate three antibodies at a time, and good imaging quality.

Review Date: 29 Jan 2020 | Bio-Rad

Set up a live demo with a Bio-Rad Imaging Specialist

Request a Demo What Is Stain-Free Technology?
Find out more »

Use the ChemiDoc MP Imaging System for flexible, high-sensitivity multiplex fluorescent and chemiluminescence western blot detection, imaging gels, analysis and documentation. This system is compatible with a wide range of fluorophores (see the fluorophore compatibility chart), such as StarBright™ Secondary Antibodies, ethidium bromide, SYPRO Ruby, Coomassie, and silver stains.

Features and Benefits

  • Sensitive detection — detects RGB and far red/near IR secondary antibodies with low fluorescence background
  • Multiplex fluorescent western blotting — detects up to three proteins simultaneously and eliminates the need for stripping and reprobing
  • Chemiluminescent western blotting — prolduces images with sensitivity matching x-ray film
  • Easy-to-use software — allows quantitation and analysis of gel and blot images, features include automatic selection of optimal light source by application, auto focus, auto exposure, and preview features ensure optimal images. Learn in minutes with on screen help
  • Stain-free protein normalization — stain-free imaging permits the normalization of bands to total protein in both in gels and blots; eliminates the need for housekeeping proteins
  • Sample Trays and Smart Tray Technology™ — Three sample trays available to cover diverse imaging applications. Smart Tray Technology automatically recognizes the application-specific trays and adjusts imaging parameters and software options accordingly
  • Installation/Operational Qualification Kit — Available for ensuring installation and calibration is properly executed for highly regulated laboratory environments

Product Contents

  • Imager with 12.1” touch-screen display plus internal computer and camera with Image Lab™ Touch Software
  • Image Lab Desktop Software to install on your computer
