NanoMixer

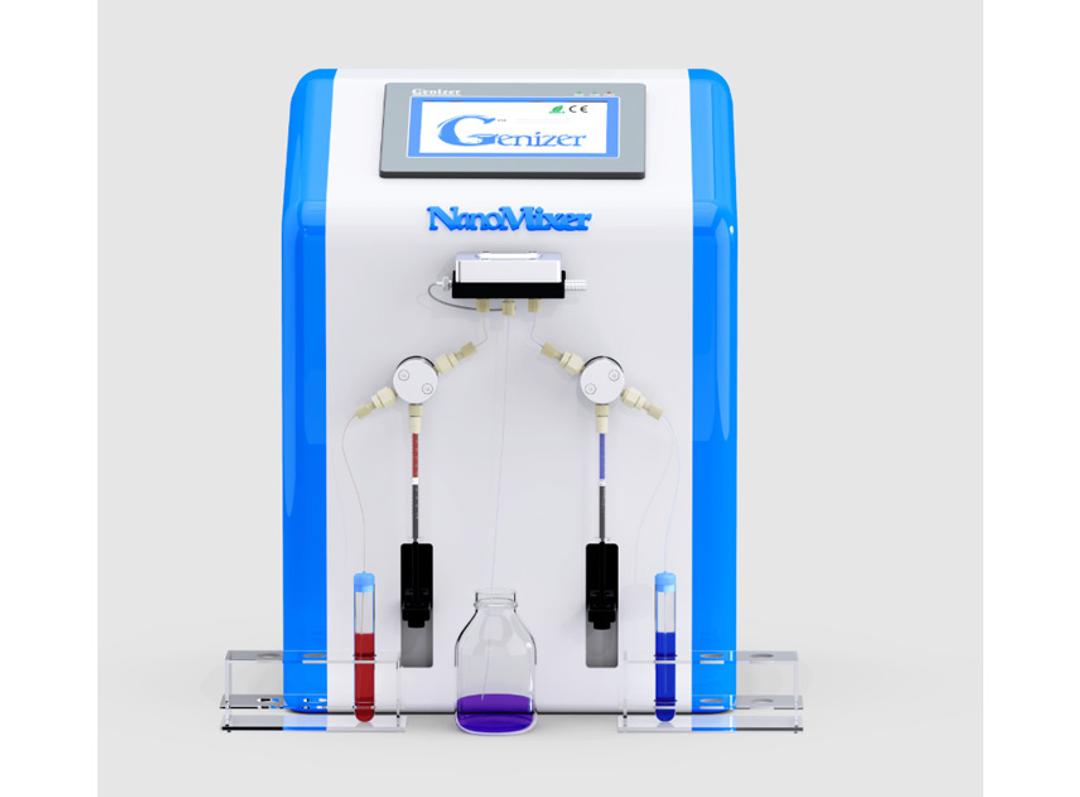

NanoMixer is a precision microfluidic mixing platform designed for laboratory-scale preparation of mRNA, DNA, and siRNA delivery systems. It is an electrically driven, benchtop instrument that operates without the need for compressed air or hydraulic oil.

The NanoMixer enables programmable flow rates (0–10 mL/min per pump) and controlled mixing ratios using gastight syringes (1 mL, 2.5 mL, 5 mL, or 10 mL), with configurations available for dual (NanoMixer), triple (NanoMixer-Triplex), or quadruple (NanoMixer-Quad) component blending.

Each NanoMixer model is equipped with independent syringe pumps, a PLC control system, and mixing modules that ensure reproducible and uniform formulation. With a working pressure up to 500 psi and temperature tolerance up to 80°C, the system supports sterile, dead-volume-minimized mixing suitable for sensitive biopharmaceutical applications.

Performance Features of NanoMixer:

• Precision Mixing: Programmable ratio and speed control with ±0.1 mL inlet accuracy

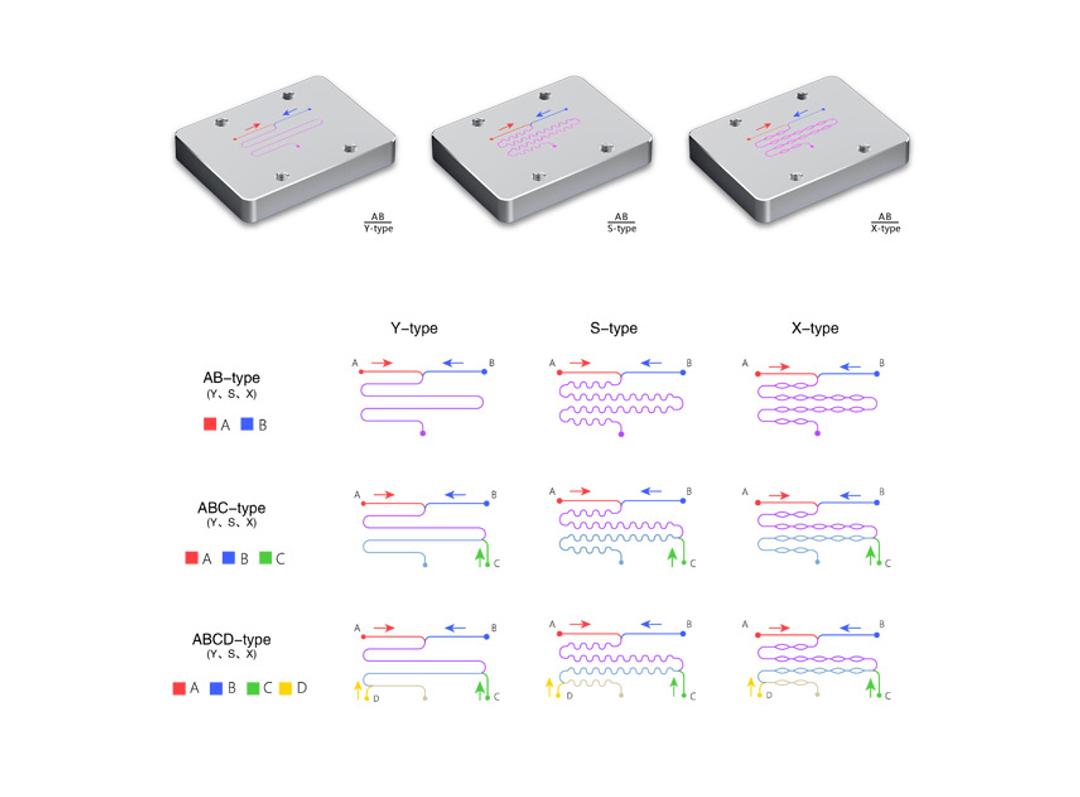

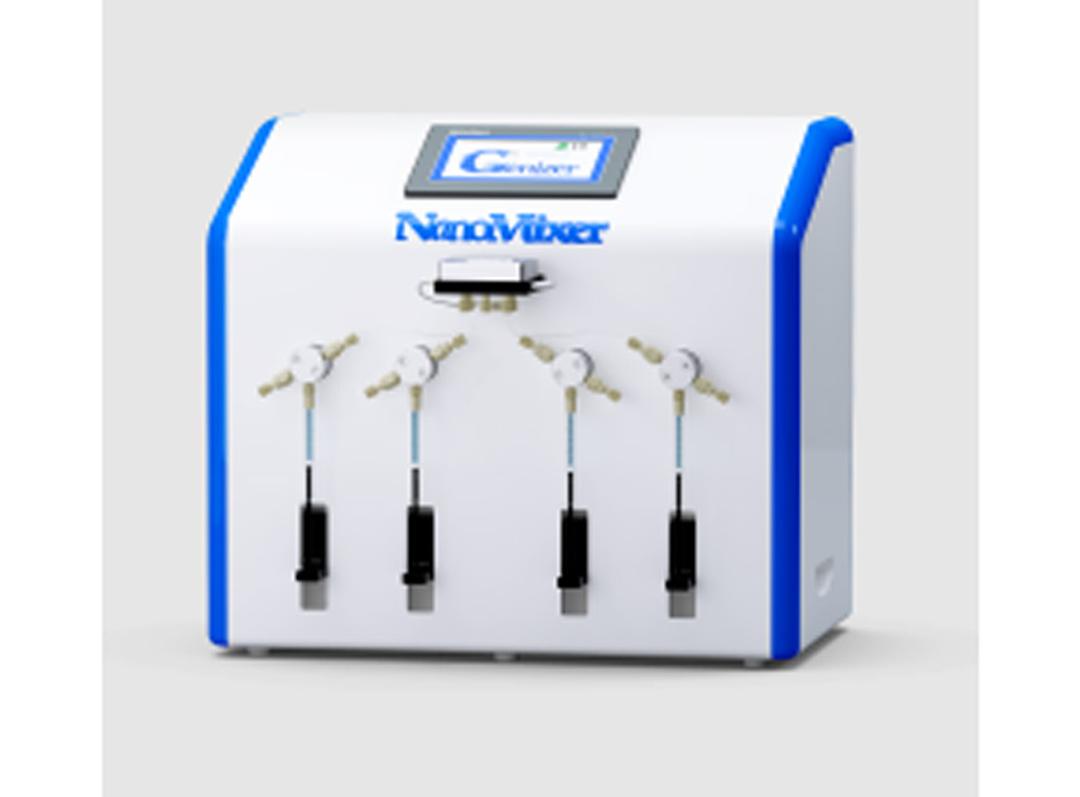

• Modular Design: Available in 2, 3, or 4-pump configurations for dual, ternary, or quaternary blending (A+B, A+B+C, A+B+C+D). The quaternary pump configuration also supports continuous microfluidic blending of A+B by allocating two pumps for continuous feeding of component A and two pumps for component B.
• Compact and Lightweight: Integrated design (70×36×30 cm, 20–35 kg) suitable for benchtop use
• Thermal Tolerance: Up to 80°C (176°F) for formulation stability
• Digital Interface: Pressure display or analog pressure gauge options
• Easy Cleaning: Flush-to-clean system
• Compliant: CE and RoHS certified
