FRG-705/FRG-707 Full Range Pirani Inverted Magnetron Gauges
Agilent TechnologiesAvailable: Worldwide

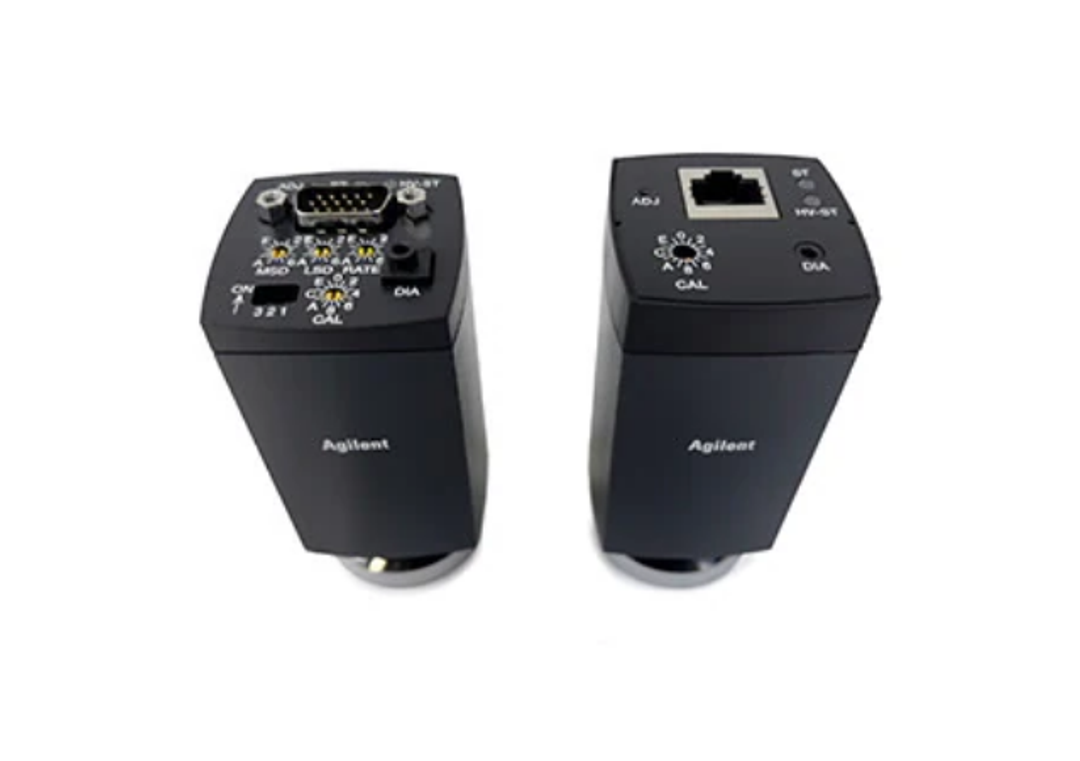

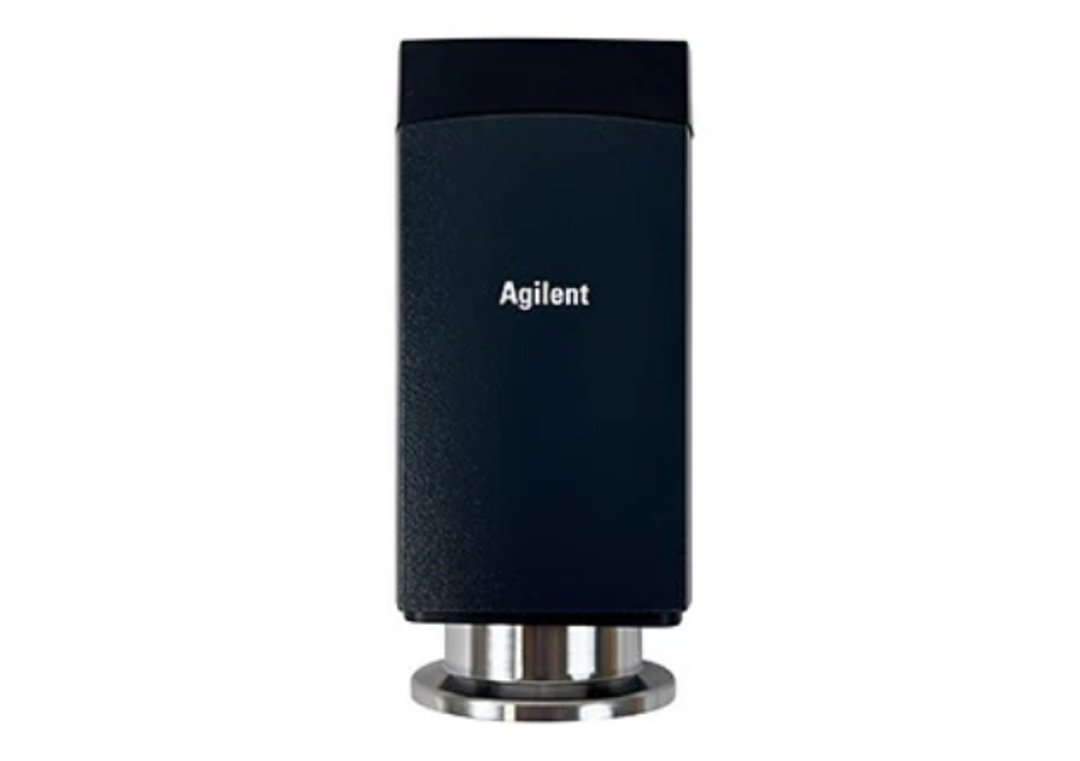

The Agilent FRG-705 and FRG-707 gauges combine Pirani and inverted magnetron sensor into a single compact design that provides measuring capability from atmosphere to 7.6 x 10-10 Torr (1.0 x 10-9 mbar).
Request Pricing
Receive your quote directly from the manufacturer.
Description
The innovative ultralow magnetic stray field makes these gauges suitable for a vast range of applications. The dual ionization chamber design reduces contamination and provides a longer lifespan. The FRG-705 and FRG-707 gauges are available with analogue output signal and RS485 serial communication.
Features
- Measures process and base pressure from 7.6 x 10-10 Torr to atmosphere (1.0 x 10-9 to 1000 mbar)
- Ultralow magnetic stray field
- Dual ionization chamber extends service life
- Excellent ignition properties
- Easy to clean and rebuild
- Super compact size
- No filament to burn out
- RS485 digital interface (optional)
- Ideal for high vacuum pressure monitoring, base pressure for evaporation and sputtering systems, and general vacuum measurement and control in the medium and high vacuum range
