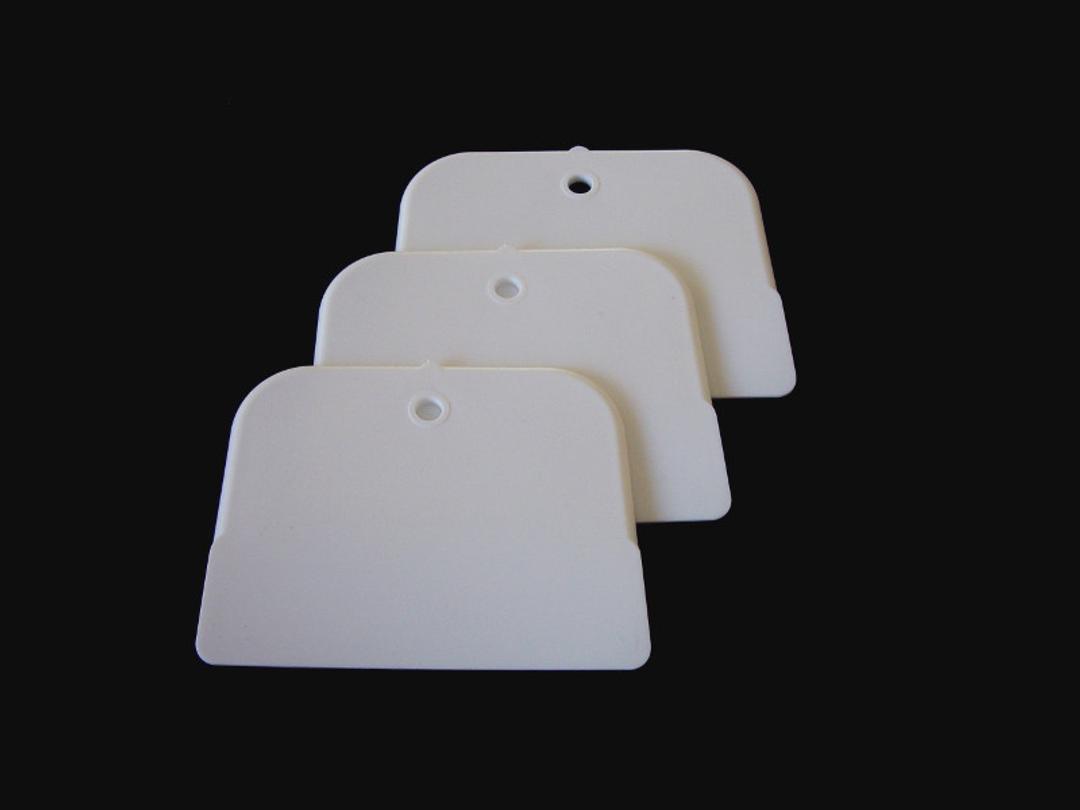

Film-Sealing Paddle

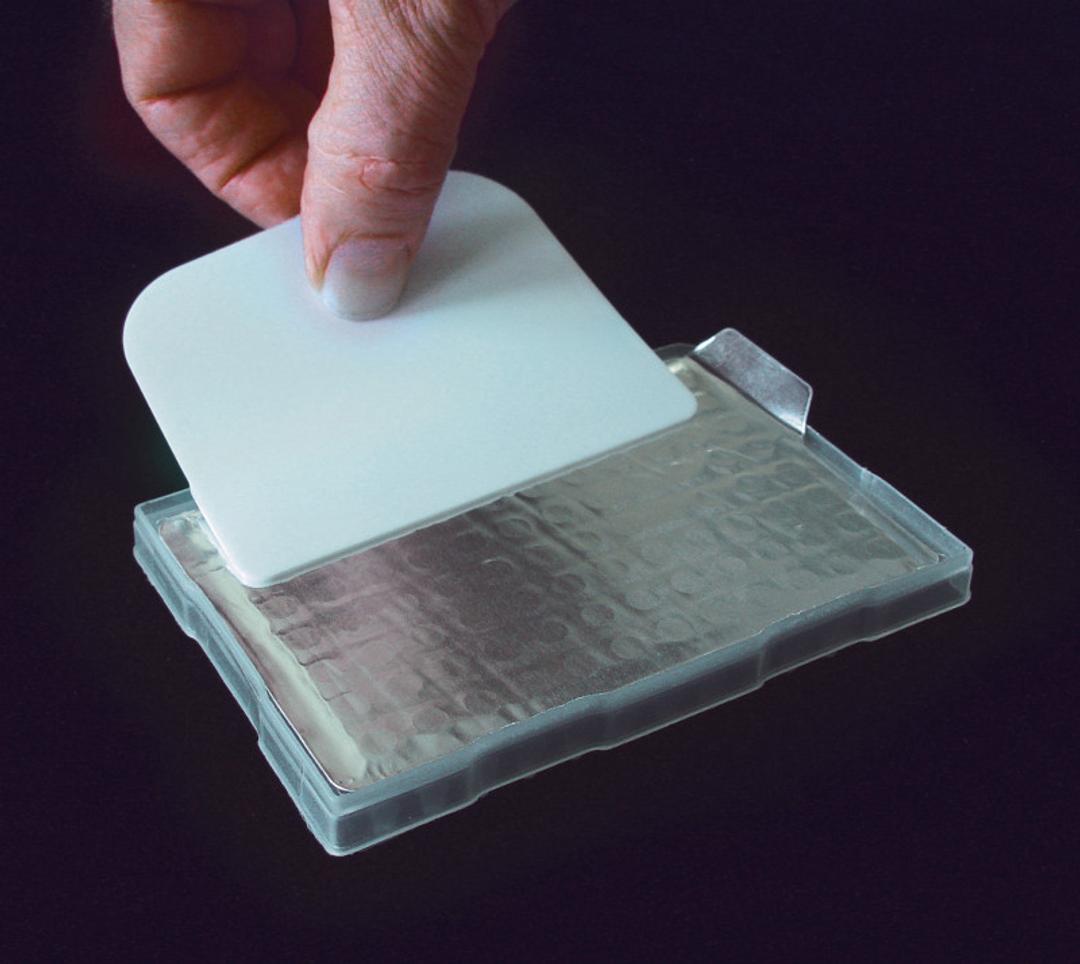

Evenly applies film on raised rim plates.
Request Pricing
Receive your quote directly from the manufacturer.
Description
Evenly applies film on raised rim plates.
Evenly applies film on raised rim plates.
Receive your quote directly from the manufacturer.
Evenly applies film on raised rim plates.
Zone-Free is a multilayer film with pierceable, adhesive-free zones to help minimize potential contact between samples and adhesive.
X-Pierce film is designed for resealability and easy access without pipet tip coring or adhesive fouling.
The encapsulated silicone adhesive is non-tacky until pressed against the sealing surface, at which time adhesive is released only in sealing areas to form the strongest available heat-resistant seal around each well on the plate. Adhesive on non-sealing areas of the film, such as directly over sample wells, remains encapsulated and inert. Excel ThermalSeal RTS films are sized to fit within the edges of raised-rim 96-well plates. Their consistent high optical clarity makes possible reproducible, reliable, and consistent DNA amplification measurements and crystal detection. Two end tabs assist in positioning the film on the plate, and the non-tacky adhesive surface simplifies handling. Easy removal of the end tabs at perforated boundaries prevents lifting and higher evaporation rates that can occur with films that overlap the plate rim. Dimensions 78.6 by 139.7 mm. With end tabs removed, length is 113.0 mm.Features:high optical clarityminimal to no autofluorescencechemically inert; no extractables except at extreme pHDMSO resistant for HTSheat resistant, recommended for temperatures from -70 °C to +100 °Ccertified DNase-, RNase-, and nucleic-acid-freefits within raised plate rim to prevent loss of seal due to film liftingsilicone adhesive forms the strongest available seal for evaporation preventionnon-tacky adhesive layer simplifies handling of film prior to sealing
X-PierceTM sealing films are 89 µm thick vinyl with a 18 µm thick adhesive layer, designed for temporary protection from contamination and evaporation for samples in 96-well plates. A precut "X" over each well creates four flaps that easily bend downward when pushed by a robotic probe or pipet tip, allowing sample access without coring or adhesive fouling. A thin adhesive layer and special hairline cuts separating the X-Pierce flaps combine to prevent probes from contacting adhesive and becoming occluded. The flaps return to their original position after sampling for continued protection. For long-term sample protection after sampling, a continuous sealing film should be applied as a second layer. Dimension are 79.4 x 145.5 mm. Features:protect samples and limit evaporation, short-termtemperatures -40 °C to +90 °Cspecial hairline X-cuts and thin adhesive prevent fouling or occlusion of probes and tipssealing film reseals for continued sample protection after samplingPrinted alpha-numerics provide clear identification of each well
Excel Scientific's unique SealMate™ system provides a convenient new method for sealing standard-format microplates with adhesive films. The system includes a molded polypropylene dispenser with a hinged “clamshell” design and sealing films supplied in a novel sheeted-roll configuration.Features:environmentally friendly green product: no protective backing to remove and discardconvenient, easy film application for microplatesthree times faster than sheet filmssmooth lower surface for pressing film to the plateseals color coded for identification: green = SealPlate®; red = AeraSeal™
A 48 um soft non-permeable aluminum foil sealing film with 30 um layer of strong acrylic adhesive. FoilSealTM sealing foils remove cleanly from plate surfaces with no adhesive stringing, residue or contamination. Each sealing foil measures 78.3 x 129 mm and offers sufficient sealing area for all plate types (e.g. flat top and raised-rim). Chamfered corners result in no plate overhang for robotics applications. Features one end-tab with perforations. Length between the perforation with end tab removed and the end of the foil seal is 118.1 mm.XTR foils offer high performance under extreme conditions.Features:Universal fit for use with all plate types (e.g. flat top and raised-rim)The smaller dimensions and chamfered corners result in no plate overhang for robotics applicationsSingle end-tab features a custom perforation that will not tear during removalCertified DNaseand RNasefreeExcellent barrier properties minimizes sample evaporation1.9mil thick aluminum foil minimizes shredding during removal and is ideal for cold storageConformable foil allows visual verification of seal securityPierceable with pipet tips and robotic probes for direct sample retrievalSpecially formulated adhesive provides an excellent seal for all plate materials (e.g. polystyrene, polypropylene and two component polycarbonate/polypropylene PCR plates)Foil will remove cleanly from plate surfaces with no adhesive stringing or residue
SealPlate® 50 µm thickness polyester sealing films minimize evaporation, prevent spillage and contamination between wells, and provide a secure seal, not just a cover. Secure sealing of all wells eliminates "edge effects" in sensitive ELISA assays. SealPlate sealing films can also be used with tissue-culture plates for short-term storage, incubation, and containment of biohazards. SealPlate sealing films are non-pierceable. Each SealPlate sealing film measures 79.4 x 146.1 mm. ThinSealTM polyester sealing films are just 25 µm thick, clearer and marginally peirceable with single-channel pipettes for sample recovery. ThinSeal sealing film dimensions are 79.4 x 141.0 mm.Features:functional temperature range from -40°C to +120°Cavailable sterile and non-sterile
Excel Scientific's unique SealMate™ system provides a convenient new method for sealing standard-format microplates with adhesive films. The system includes a molded polypropylene dispenser with a hinged “clamshell” design and sealing films supplied in a novel sheeted-roll configuration.Features:environmentally friendly green product: no protective backing to remove and discardconvenient, easy film application for microplatesthree times faster than sheet filmssmooth lower surface for pressing film to the plateseals color coded for identification: green = SealPlate®; red = AeraSeal™
A 140 µm thick hydrophobic porous rayon sealing film including medical-grade adhesive for tissue culture plates, bio-blocks, and 96-well plates where gas exchange is necessary for cell or bacterial growth. AeraSeal sealing films minimize cross-contamination, spillage and evaporation. They allow uniform air and CO2 exchange for all wells, unlike plate lids which favor exchange for wells near the plate edges. Dimensions: 82.6 by 142.9 mm for standard-size tissue culture plates.Features:non-cytotoxic, highly gas permeableeasily pierceable with pipet tips or pipets for sample recoveryrecommended for temperatures from -20 °C to +80 °C
Excel Scientific's unique SealMate™ system provides a convenient new method for sealing standard-format microplates with adhesive films. The system includes a molded polypropylene dispenser with a hinged “clamshell” design and sealing films supplied in a novel sheeted-roll configuration.
SealPlate® ColorTab™ adhesive sealing films consist of 50 µm thickness clear polyester. They minimize evaporation, prevent spillage and contamination between wells, and provide a secure seal for ELISA, EIA, and similar assays. These unique sealing films include a color dot and white writing area on each end tab for plate ID labeling. End tabs with backing removed adhere to the ends of the plate and are perforated so they can be left in place to maintain plate identity even if the center portion of the sealing film is removed. Alternatively, one inscribed color-coded end tab can be removed and pasted in a laboratory notebook while the other remains on the plate for identification. Dimensions 79.4 by 146.1 mm for 96-well plates. Sealing films are supplied with five dot colors (green, lavender, orange, red, blue) in non-sterile single-color packs of 100 and in assorted packs of 50 containing five individual-color packs of 10, also non-sterile.Features:color dots and white labeling area on end tabssecond tab can be separated for lab-notebook insertionend tabs can be left on plate even if center of sealing film is removedfunctional temperature range -40°C to +120°C
SealPlate® ColorTab™ adhesive sealing films consist of 50 µm thickness clear polyester. They minimize evaporation, prevent spillage and contamination between wells, and provide a secure seal for ELISA, EIA, and similar assays. These unique sealing films include a color dot and white writing area on each end tab for plate ID labeling. End tabs with backing removed adhere to the ends of the plate and are perforated so they can be left in place to maintain plate identity even if the center portion of the sealing film is removed. Alternatively, one inscribed color-coded end tab can be removed and pasted in a laboratory notebook while the other remains on the plate for identification. Dimensions 79.4 by 146.1 mm for 96-well plates. Sealing films are supplied with five dot colors (green, lavender, orange, red, blue) in non-sterile single-color packs of 100 and in assorted packs of 50 containing five individual-color packs of 10, also non-sterile.Features:color dots and white labeling area on end tabssecond tab can be separated for lab-notebook insertionend tabs can be left on plate even if center of sealing film is removedfunctional temperature range -40°C to +120°C
SealPlate® ColorTab™ adhesive sealing films consist of 50 µm thickness clear polyester. They minimize evaporation, prevent spillage and contamination between wells, and provide a secure seal for ELISA, EIA, and similar assays. These unique sealing films include a color dot and white writing area on each end tab for plate ID labeling. End tabs with backing removed adhere to the ends of the plate and are perforated so they can be left in place to maintain plate identity even if the center portion of the sealing film is removed. Alternatively, one inscribed color-coded end tab can be removed and pasted in a laboratory notebook while the other remains on the plate for identification. Dimensions 79.4 by 146.1 mm for 96-well plates. Sealing films are supplied with five dot colors (green, lavender, orange, red, blue) in non-sterile single-color packs of 100 and in assorted packs of 50 containing five individual-color packs of 10, also non-sterile.Features:color dots and white labeling area on end tabssecond tab can be separated for lab-notebook insertionend tabs can be left on plate even if center of sealing film is removedfunctional temperature range -40°C to +120°C
Excel Scientific now offers adhesive sealing films on Roll-Seal™ rolls for use with high-throughput automated microplate sealers. Film rolls, constructed on three-inch-diameter plastic cores, are compatible with most common adhesive sealers (Brandel, Thermo-Fisher/Abgene, FluidX, KBiosystems). The Roll-Seal format provides reliable and efficient sealing at a lower cost per plate with minimal user intervention. Robust static-free packaging provides protection during shipment and facilitates accurate alignment and adhesion.Features:AeraSeal™ breathable rayon films for cell and tissue culturenon-cytotoxic, highly gas permeableeasily pierceable for sample recovery
Excel Scientific now offers adhesive sealing films on Roll-Seal™ rolls for use with high-throughput automated microplate sealers. Film rolls, constructed on three-inch-diameter plastic cores, are compatible with most common adhesive sealers (Brandel, Thermo-Fisher/Abgene, FluidX, KBiosystems). The Roll-Seal format provides reliable and efficient sealing at a lower cost per plate with minimal user intervention. Robust static-free packaging provides protection during shipment and facilitates accurate alignment and adhesion.Features:AlumaSeal® pierceable aluminum foil with pressure-sensitive acrylic adhesive for PCR, HTS and cold storageeasily pierceable for sample recoverynuclease-, nucleic acid-, and pyrogen-freerecommended for PCR, HTS, and cold storage
