2035 Process Analyzer
Customized online-monitoring of industrial processes and waste water streams.
Receive your quote directly from the manufacturer.
Great result. Only observe chemical level for titration and pure brine flow continity
ca mg analysis at ION exchange column outlet
very effective to know the dynamic value of hardness by ca mg analyzer at outlet of ION exchange column, means measurement of hardness in pure brine. And it is the critical parameters for zero gap elements in electrolysis process, where hardness is required less than 20 ppb. Easy to operate. We can get the value at DCS.
Review Date: 15 Dec 2022 | Metrohm AG
Great results
Analyse the hardness in brine solution
This analyser is measuring hardness value online. It is very useful to maintain the our product brine. It is working smoothly and its software is also very user friendly. No special training required to operate the analyser. Initially we bought one after satisfaction of its results we procured one more.
Review Date: 15 Dec 2022 | Metrohm AG
Fast and accurate results.
Analyze the equilibrium carbonate concentration in reaction of Li2CO3
The equipment analyzed and calculated the carbonate concentration in a precise and reproducible way. It allowed us to measure in a constant and automatic way the concentration in the reactors and to visualize the value from SCADA. It allowed us to implement automatic control loops.
Review Date: 6 Dec 2021 | Metrohm AG
All in all a great device!
Surfactant determination
A good device for automatic surfactant determination. Only an optimization in the cooperation between TIAMO and the process software would be desirable (keyword: user access control / user-friendliness / software stability)
Review Date: 19 Jan 2021 | Metrohm AG

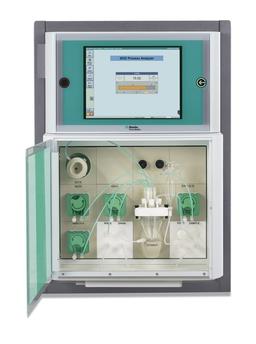

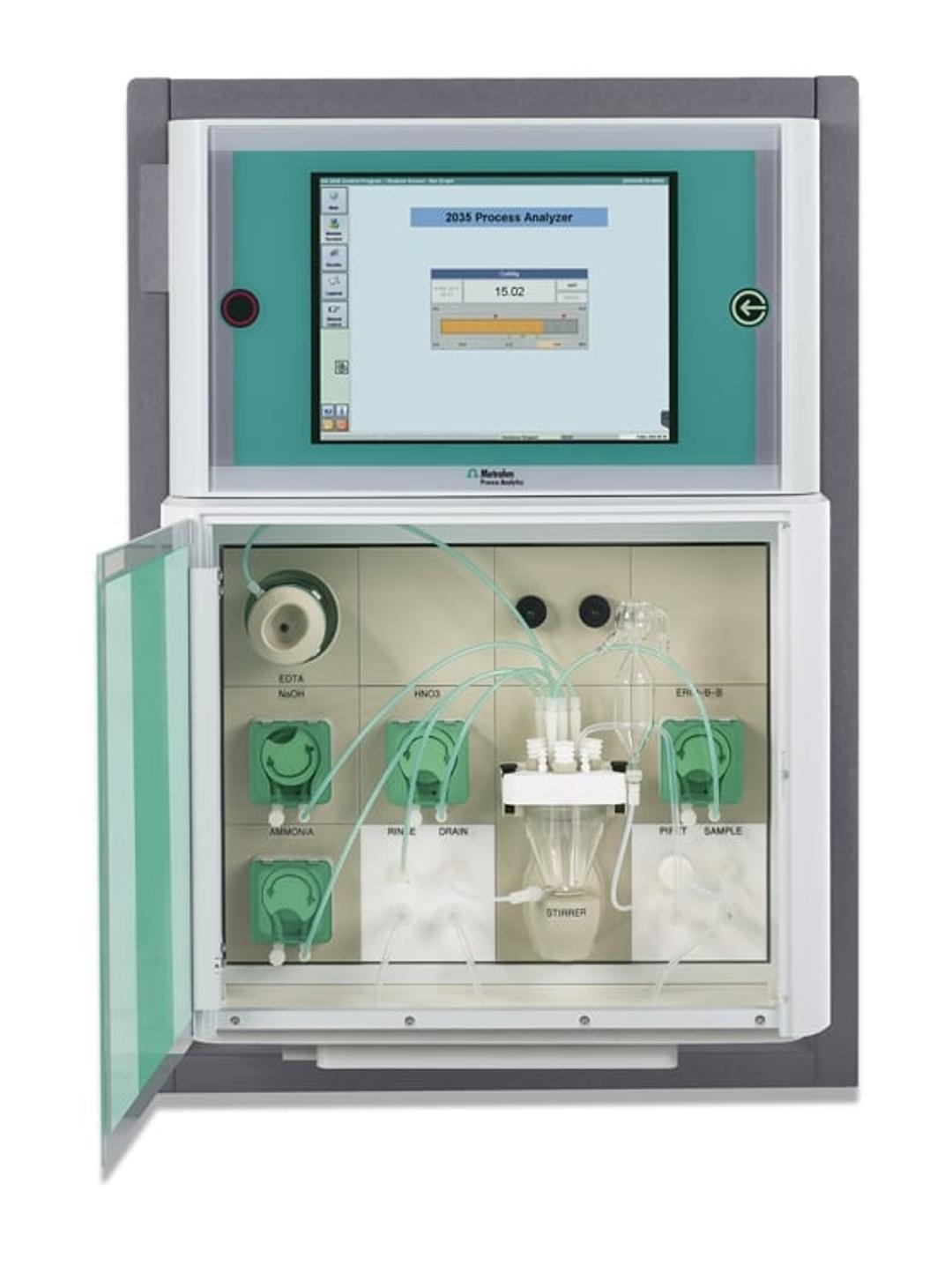

Metrohm Process Analytics presents the 2035 Process Analyzer, an integrated solution for 24/7 online-monitoring of critical chemical parameters in industrial processes and wastewater streams. The new system is entirely modular by design enabling custom configurations for monitoring single or multiple process streams.
Three basic configurations for titrimetric, photometric, and thermometric measurements
The 2035 Process Analyzer comes in three basic configurations for potentiometric, photometric, and thermometric measurements. Any of these can be combined with additional measuring techniques such as pH and/or conductivity measurement.
Custom configurations possible
Due to modular architecture of the wet part, there is an analyzer configuration for each specific application challenge. A large array of functional modules such as burettes, pumps, vessels, valves, and more is available.
Robust design (IP66)
Strict separation of wet part and electronics ensures safe operation in harsh environments. The electronics part is housed within non-corrosive epoxy-coated stainless steel.
Virtually unlimited sample conditioning options
Metrohm Process Analytics provides virtually any sample pre-conditioning system, such as cooling or heating, pressure reduction, degassing, filtration, and more.
Sophisticated data communication
Ethernet TCP/IP Network communication and remote operation, web services, MODBUS, analog outputs, digital outputs to transmit results, and alarm status signals. Result export to USB.
Features:
- Modular wet part means greater flexibility for applications
- Additional measuring techniques can be integrated (pH, conductivity)
- IP66/NEMA 4-rated: protection in harsh environments
- Customizable, user-friendly interface with several security levels
- Remote control capability makes evaluating results and inspecting diagnostics easier
