Systec H-Series 2D Autoclave by Systec GmbH & Co. KG

Manufacturer Systec GmbH & Co. KG  |  Available Worldwide
Pass-through Autoclaves Systec H-Series 2D

Systec H-Series 2D Autoclave by Systec GmbH & Co. KG product image
Systec H-Series 2D Autoclave
Request Pricing

Receive your quote directly from the manufacturer.

0 Scientists have reviewed this product

Write the First Review

No Reviews

Systec autoclaves can be used in all laboratory applications, including challenging sterilization processes: Sterilizing liquids (such as culture media, nutrient media), solid bodies (such as instruments, pipettes, glassware), waste (sterilization of liquid waste in bottles or solid waste in waste bags before destruction), and biologically hazardous materials in safety laboratories.

All Systec autoclaves can be expanded with options and equipment on a modular basis, in order to optimize your sterilization process and implement validated sterilization processes. Companies can select only the options they need to optimize their specific sterilization procedure. Systec autoclaves can be equipped with a vacuum system, for instance, that entirely removes air from products during the sterilization of solid bodies and waste. This makes it possible to introduce steam into the product to sterilize it in a manner that can be validated. The integrated Superdry drying system guarantees complete drying for solid bodies after sterilization. Systec has developed its Ultracooler as a new kind of cooling system for sterilizing liquids in bottles. The system reduces the cool-down time by up to 90% when compared to self-cooling.

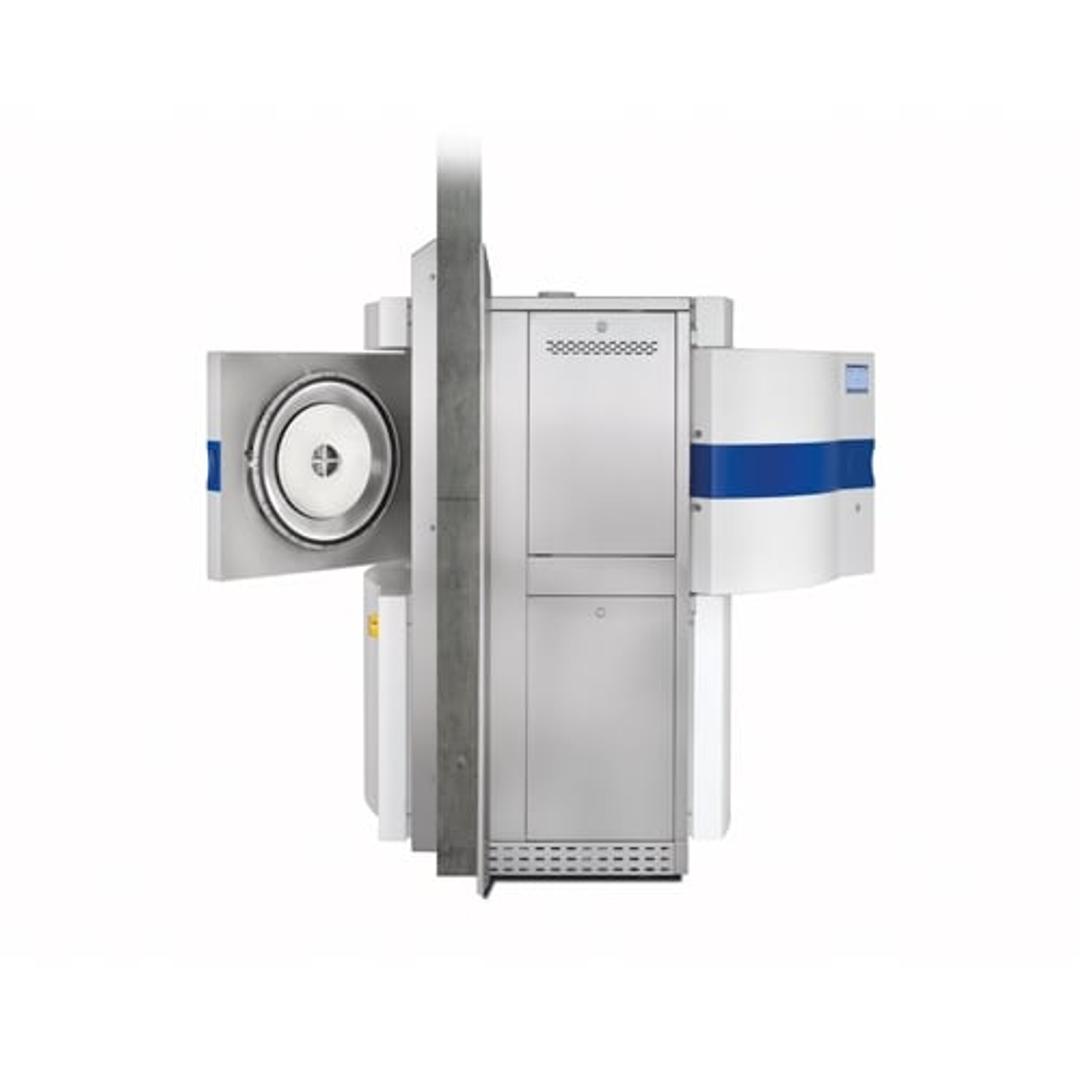

Systec H-Series 2D double-door/pass-through Autoclaves

The Systec H-Series 2D double-door/pass-through autoclaves of the performance category HX can be used for all laboratory applications, even for sophisticated sterilization processes and are available in 13 different sizes with 90 to 1580 liter chamber volume. All additional optional accessories can be fitted to obtain validatable processes. For use under the most stringent clean room and safety conditions: For biological safety laboratories, e.g. fitting as a sterilization and pass-through lock for protecting the external environment, for clean rooms in laboratories and production facilities as a sterilization and pass-through lock separating sterile and non-sterile areas.


  • HX: For all laboratory applications even those with sophisticated sterilization tasks and availability of all options for process optimization to achieve validatable sterilization processes.
  • Highest requirements with regard to safe, accurate, reproducible and validatable sterilization processes
  • -Sterilization temperatures up to 140 °C, steam pressure up to 4 bar (optional 150 °C/5 bar on request)
  • Fully automatic, micro-processor controlled
  • Up to 100 sterilization programs for different sterilization applications
  • Touch screen
