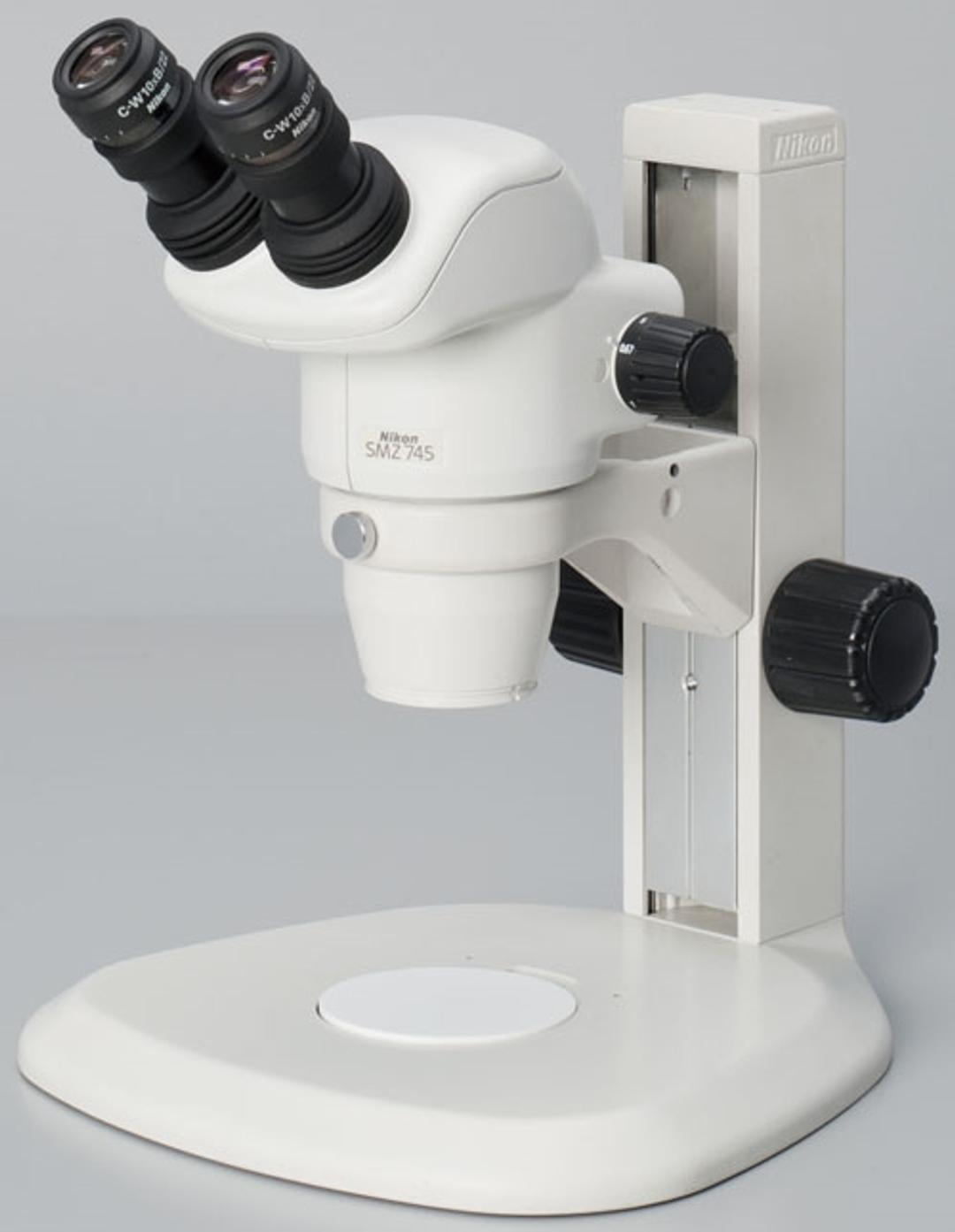

Featuring a zoom magnification of 7.5x and a long working distance of 115 mm, Nikon SMZ745 stereoscopic microscopes are well suited for both industrial and biomedical applications. A new total reflection prism produces brighter images with higher contrast, and the anti-mold design allows the microscope to be used in environments where the temperature and humidity are high. The SMZ-745T trinocular model allows direct mounting of Nikon DS Series Digital Cameras.
Extremely high 7.5x zoom range
The SMZ745/745T boasts a 7.5x zoom that incorporates a Greenough optical system. The zoom range of 0.67x to 5x provides a broad observation range.
Superior 115mm working distance
In addition to high zoom ratio and magnification, the SMZ745/745T offers a long 115 mm working distance.
Three “A” design
By making joints airtight, contamination from dust, oil, water and other contaminants is prevented.
Airtight construction: JIS Degrees of protection provided by enclosures IPX1

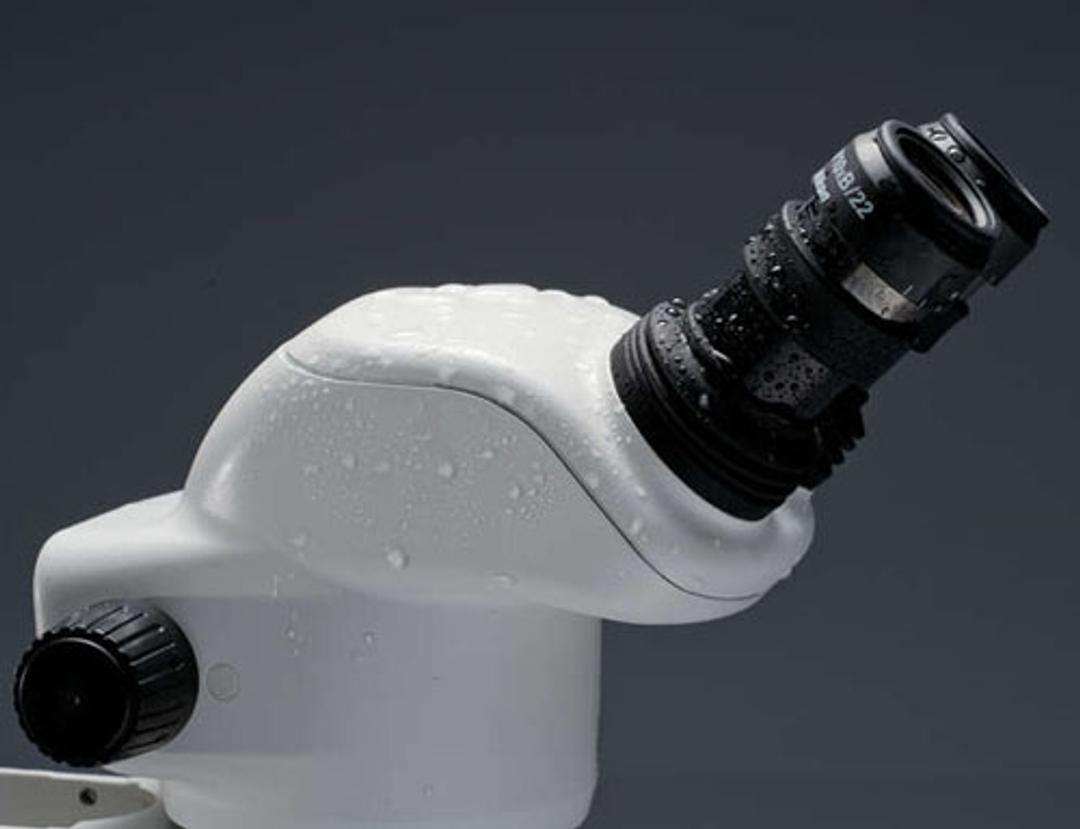

Anti-fungal design developed exclusively by Nikon ensures peace of mind when the microscope is used in environments subject to high heat or humidity.
Static electricity built up within the microscope is discharged

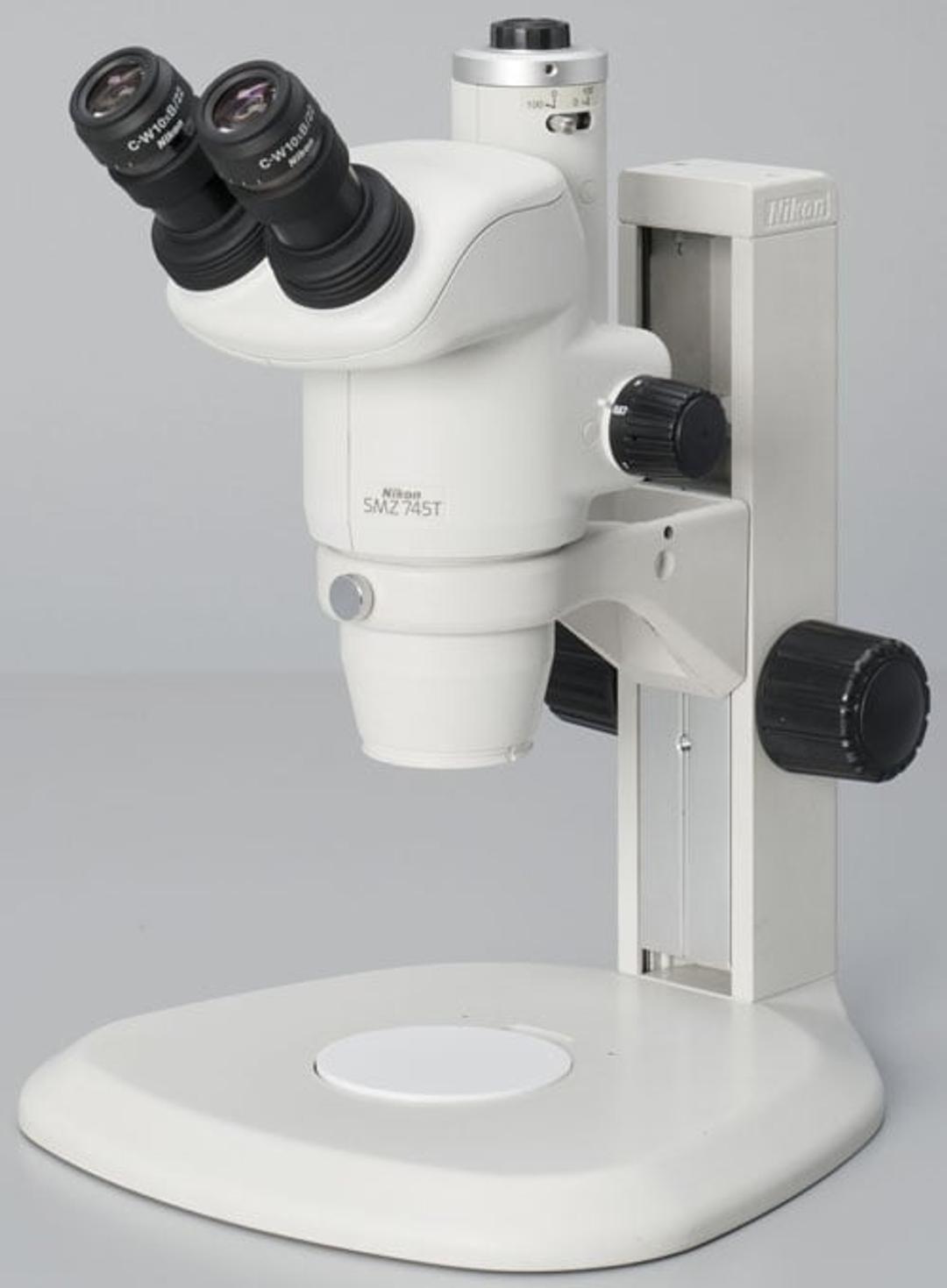

Trinocular optical head is ideal for monitoring and digital imaging
The SMZ745T incorporates an optical path switching lever that enables easy switchover between eyepiece and camera. A Nikon Digital Sight Series Camera can be attached.
