Dynamic Climate Chambers - MKFT Series by BINDER

Manufacturer BINDER  |   Model: MKFT  |  Available Worldwide
3.7
/
5.0
  |  1 reviews
For rapid temperature changes with humidity control and extended low temperature range.

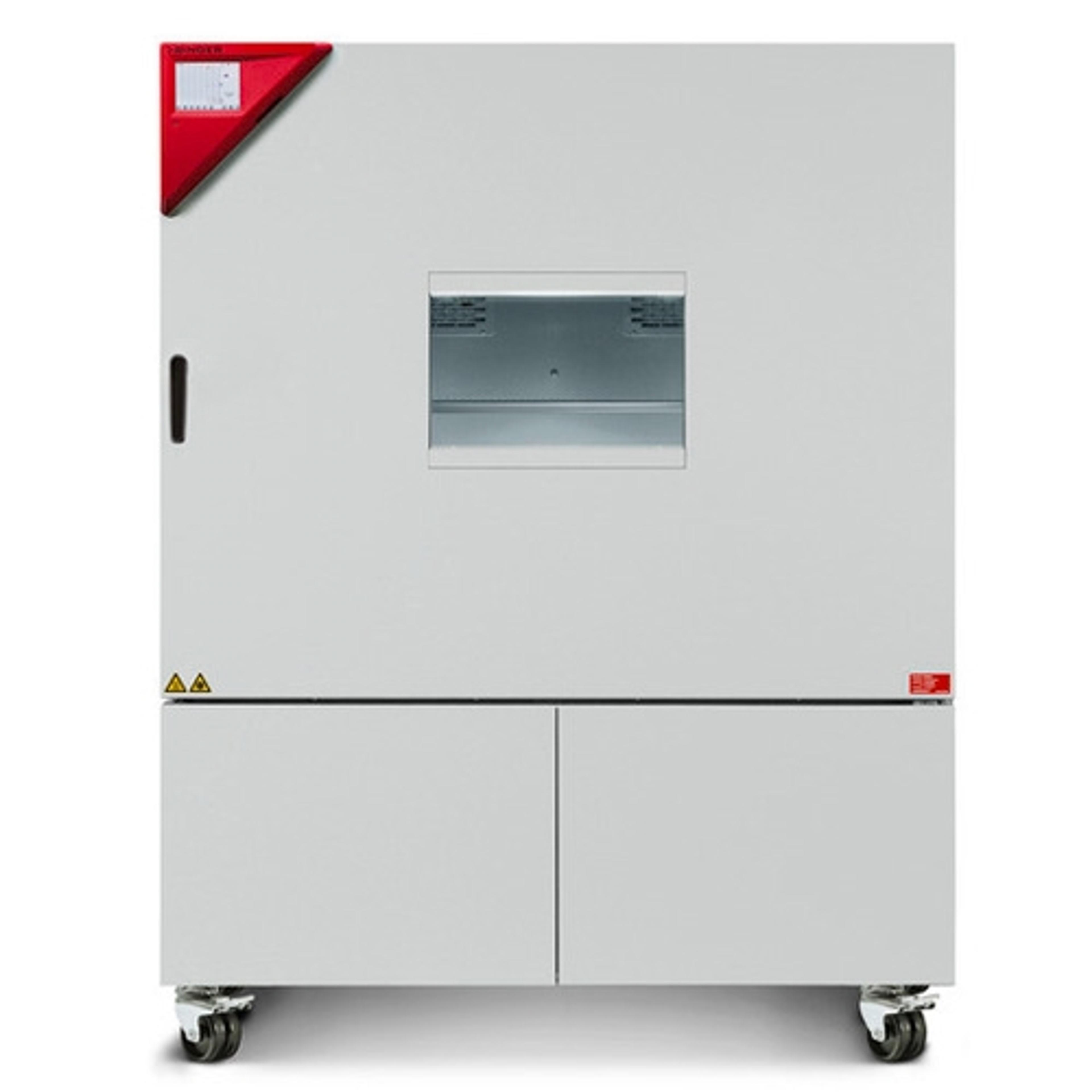

Dynamic Climate Chambers - MKFT Series by BINDER product image
Dynamic climate chamber MKFT 240
Request Pricing

Receive your quote directly from the manufacturer.




Average Rating: 3.7
1 Scientist has reviewed this product

3 out of 5
Ease of use
4 out of 5
After sales service
4 out of 5
Value for money


  • Status:

    Reviewer
  • Member since: 2021

  • Organization: Jaguar Land Rover



  • Ease of use
    3 out of 5
    After sales service
    4 out of 5
    Value for money
    4 out of 5
Share this Review on LinkedinShare this Review on TwitterShare this Review on Facebook
Good chamber. Controls are located too high though.
Rating: 3.7

  • Application Area: Automotive material testing

"The unit itself works very well. However, the controls are located high up so it makes selecting/programming very awkward. If you are short, then you will need to stand on a step. The programming can be done on the unit, but, for some cyclic programs can be time-consuming. I advise that this be done using the software and then uploaded to the unit. The humidity/temp trace on the screen is not very good."

Review date: 16 Nov 2021 | Dynamic Climate Chambers - MKFT Series

The BINDER MKFT series environmental simulation chamber for low temperature alternating climate profiles is the specialist for dynamic alternating climate change between -70 °C and 180 °C. Large performance reserves and rapid cooling make the MKFT environmental simulation chamber the high-end product for complex standards-based climate tests.

  • Temperature range: -70 °C to 180 °C
  • Humidity range: 10 % to 98 % RH
  • Integrated water-storage tank, 20 liters
  • 4 zero-voltage relay contacts that can be activated via MCS controller
  • APT.line™ preheating chamber technology
  • Programmable condensation protection for test material
  • Heated viewing window with LED interior lighting
  • Humidity regulation with capacitative humidity sensor and vapor humidification
  • BINDER APT-COM™ 3 Basic Edition communication software
  • Troubleshooting system with visual and audible alarms
  • Controller with time-segment programming
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
  • Access port with silicone plug (Models 115, 240: 50 mm, left)
  • 2 access ports with silicone plugs (Model 720: 80 mm, left and right)
  • 4 castors, two with brakes
  • Computer interface: Ethernet
  • 230 V power socket on the right-side control panel
  • Display via color LCD monitor
  • Adjustable ramp function
  • Integrated chart recorder
  • Real-time clock
  • Door heating
  • Alarm notification in the event of insufficient water in fresh water tank
  • 1 stainless steel rack
  • Complete safety connection kit for water supply and drainage, up to 1 m in height
  • Inner chamber made of stainless steel
  • Pt 100 temperature sensor
  • Thermal insulation using PUR foam
  • CFC-free refrigerants R-404A and R-23
  • Cooling with cascade compressor cooling unit
  • Fin evaporator
