Description



• Biological acute or culture preparations are placed directly into the MED64 multi-electrode array probe.

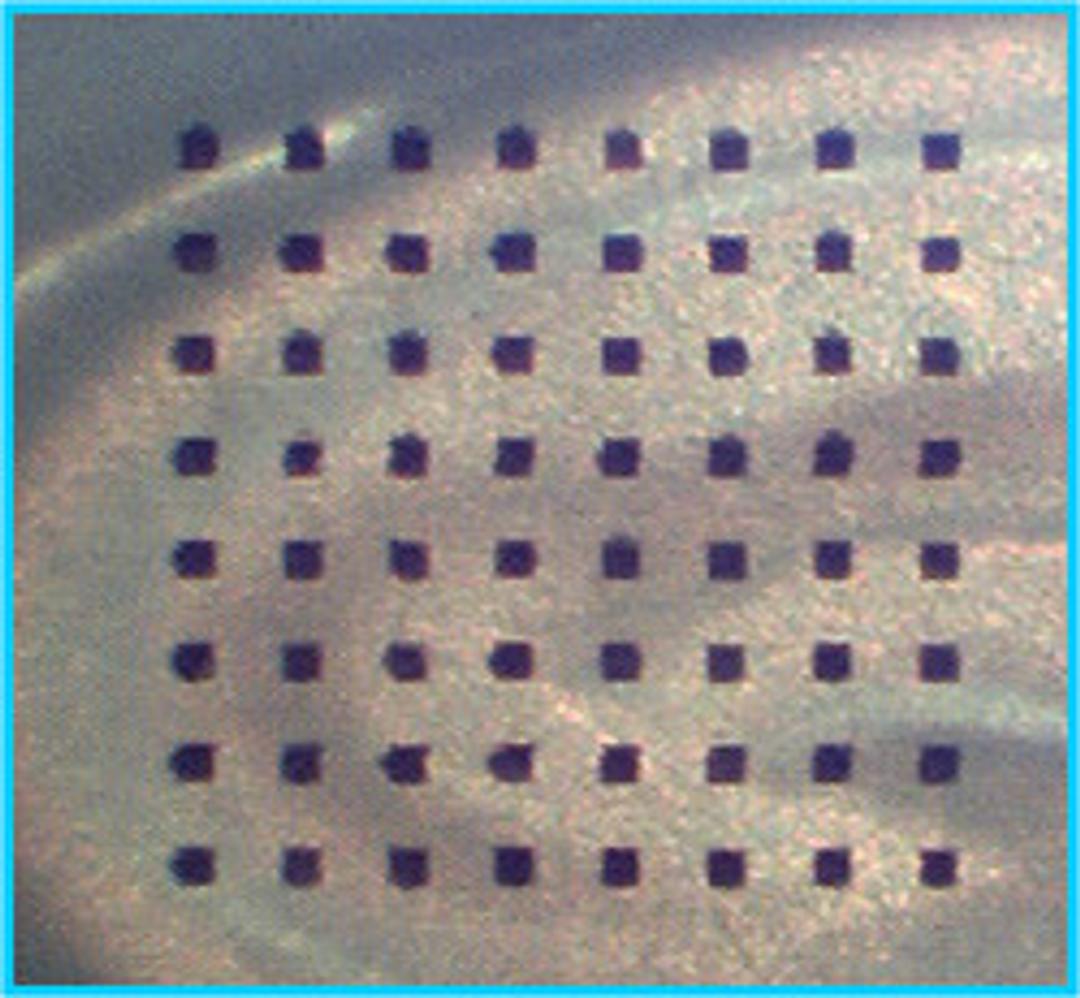

• The MED64 probe allows users to stimulate and record samples using 64 planar microelectrodes in an 8 x 8 array embedded in the center of a transparent glass plate.
• Arrays are available in four different inter-electrode spacings; 100, 150, 300 and 450 µm enabling measurements of fine detail from small regions to larger scale interactions across regions.
• Each patented micro-electrode measures 50 µm x 50 µm - except for the 100 µm spacing configuration, with micro-electrodes measuring 20 µm x 20 µm, which yields a very low impedance (typically 10kΩ and 15kΩ respectively) critical to achieve a good signal to noise ratio.
• Probes come in 5 mm (for use with synchronized glass electrode recording) and 10 mm well heights.

Special arrangements are available with Hexagonal patterns (Electrode size: 20µm, inter-electrode spacing: 70 µm) and Hippocampal patterns (CA1, CA3, & DG, Electrode size 50 µm diameter, inter-electrode spacing: 150 µm).

Substrate:
Glass substrate: 50 x 50 x 0.7 mm
Glass cylindrical chamber: D=22, OD=25 mm
Conducting layer: Indium tin oxide (ITO) (0.15 µm)
Insulation layer : Polyacrylamide (1.4 µm)

Recording/stimulating electrode:
Number of electrodes: 64 (61 for MED-2H###)
Material: ITO + Platinum Black
Size: 50 x 50 µm
20 x 20 µm (MED-P210#)
  20 mm (MED-P2H07#)
50 mm (MED-P5001# & P5002#)
Impedance: <22 kΩ (Typical: 10 kΩ) (MED-P5####)
<30 kΩ (Typical: 15 kΩ) (MED-P2####)
(1kHz, 50 mV applied sinusoidal wave)
Maximum voltage: 1 V
Maximum current: 200 µA, 0.1 msec

Reference electrodes:
Number of electrodes: 4
Material: ITO + Platinum Black
Size: 200 x 200 µm
Diameter 100 µm x 4 (MED-P2H07#, MED-P5001#)
Impedance: <2.2 kΩ (1kHz, 50mV sinusoidal wave)

* Minimum order quantity: 10 pcs
